Description
Electric Fan:

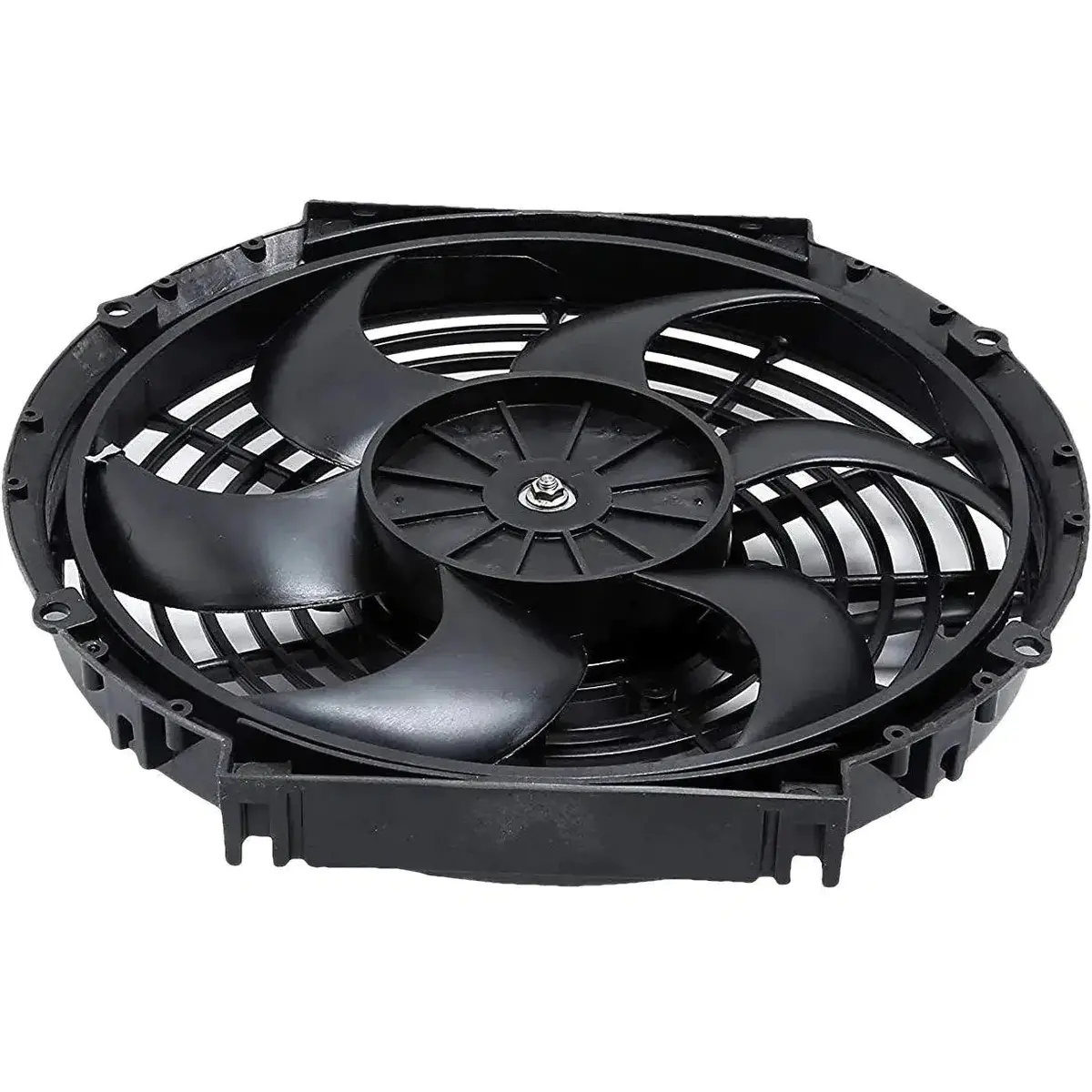

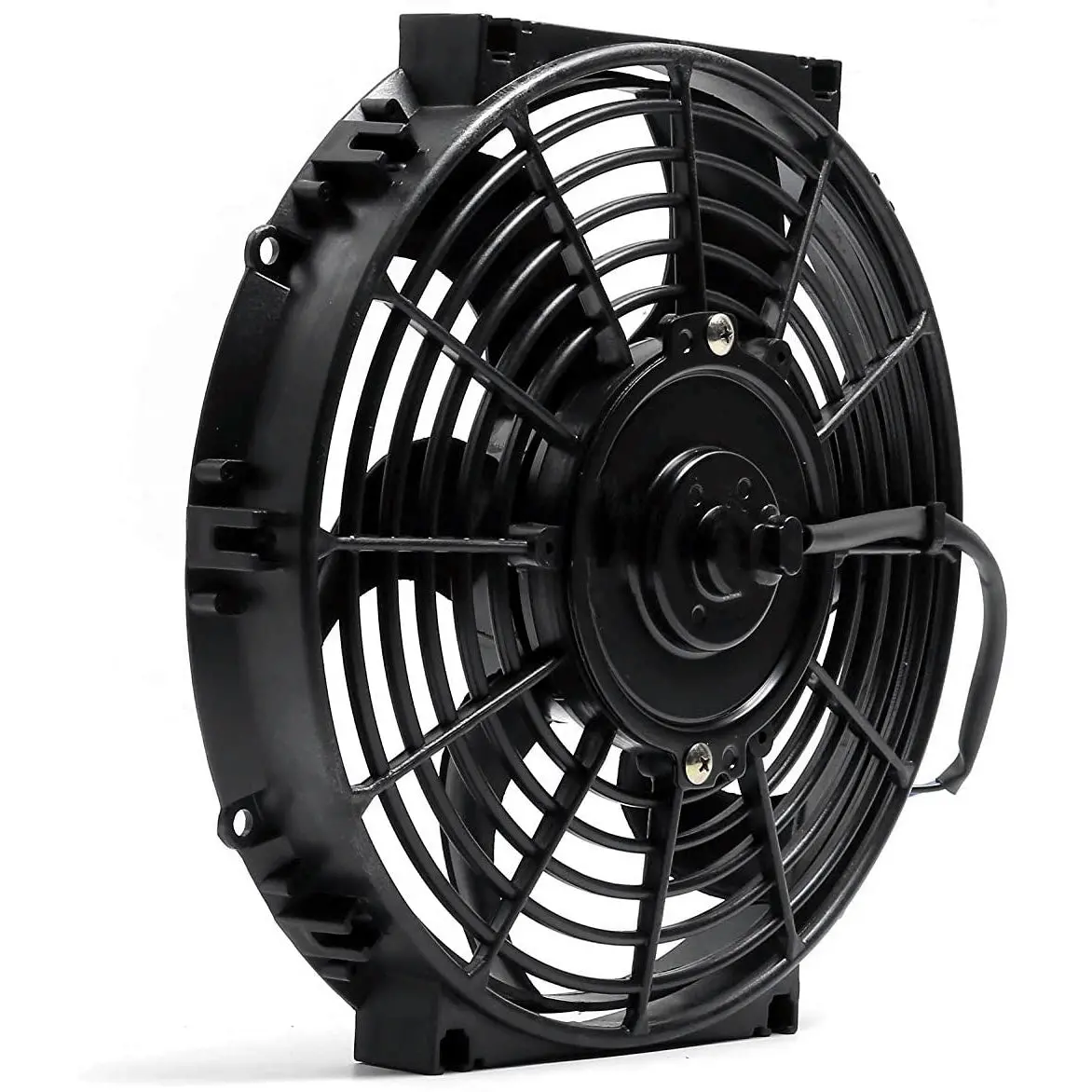

- Universal 12 volt high performance 10″ inch slim electric cooling fan.
- Upgraded 90 watt motor draws 9 amps, producing over 1861 CFM.
- Configured as an air puller by default or reversible to an air pusher.

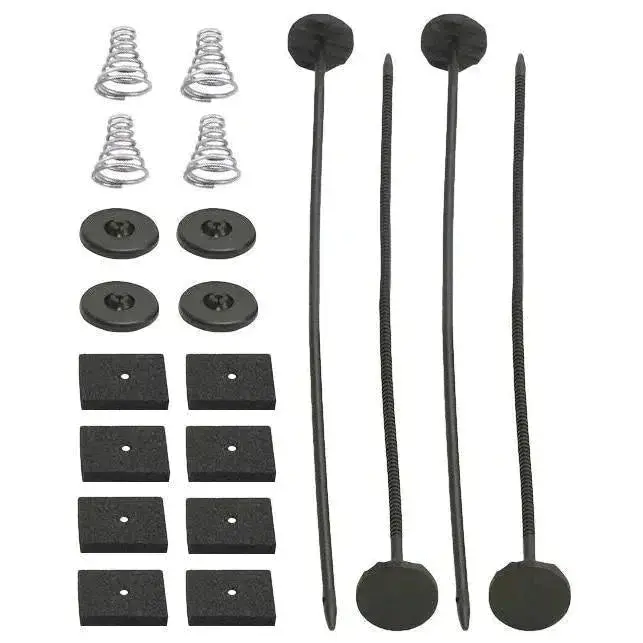

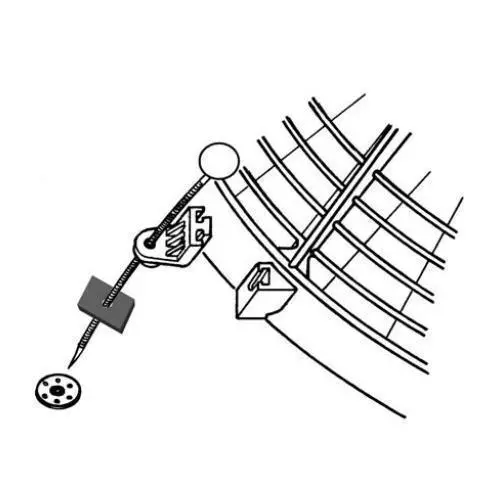

- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 11.5″ x 10.75″ x 2.5″ thickness at center and 1.4″ at edge.
Wiring Kit:

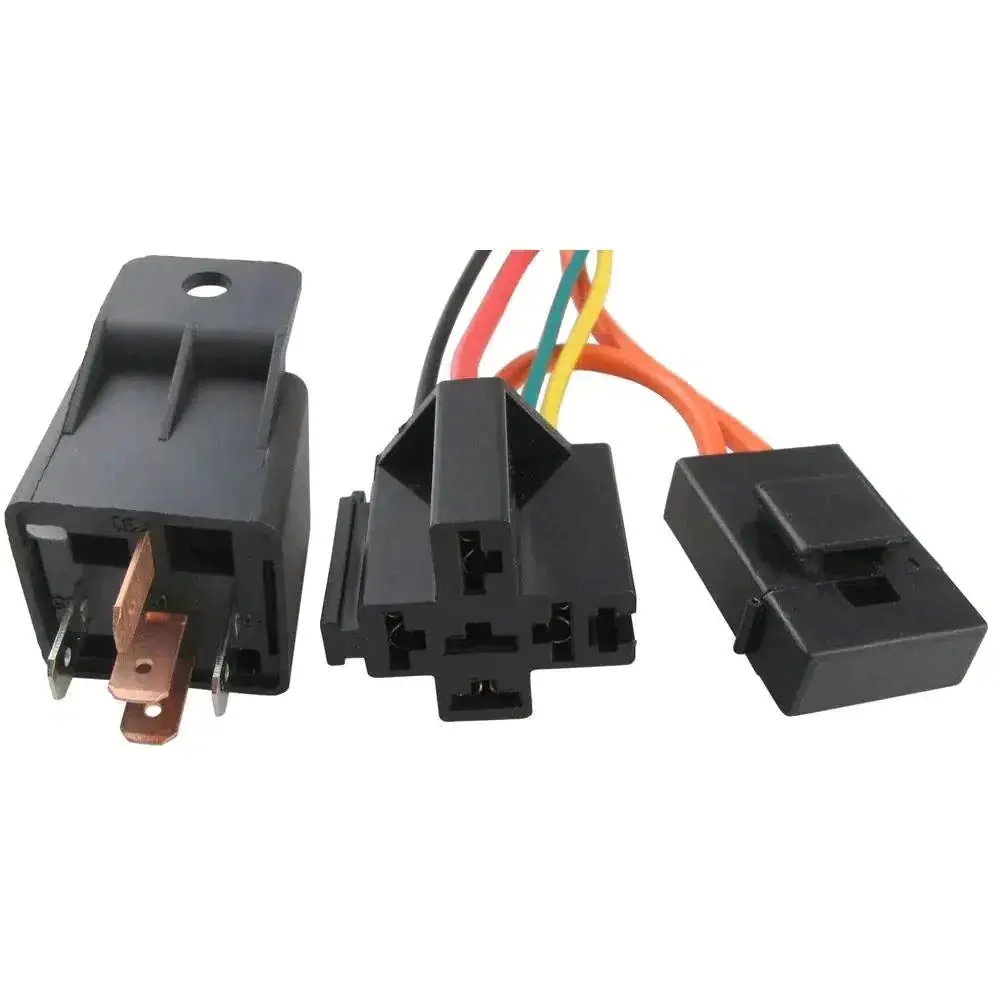

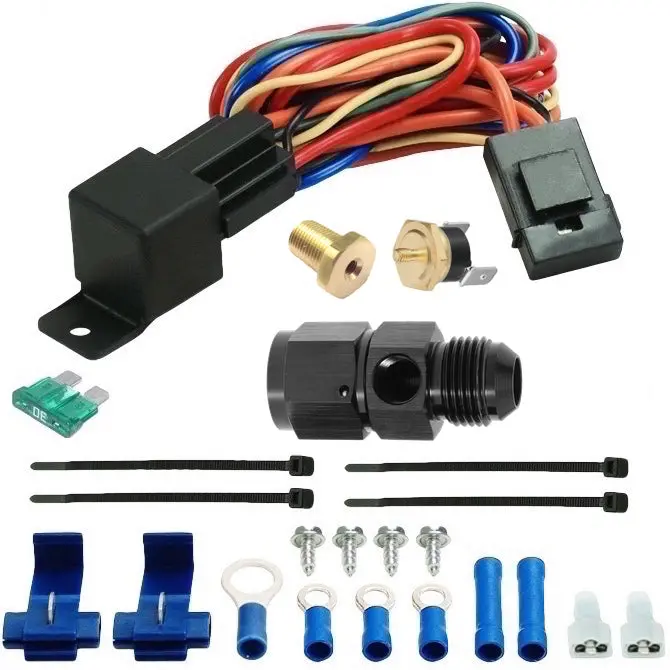

- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Fitting:
- Universal AN in-line electric fan thermostat temperature switch kit.
- 1/8″ inch NPT brass thread-in probe and dual pin disconnect switch.
- Preset to power fan or 12v accessory at the selected temperature.
- Fitting is black anodized aluminum for a corrosion resistant design.
- Measures temp of any liquid including oil, water and coolant fluid.
