10–11 Inch 90W Radiator Fan with Hose Adapter and Grounded Switch Kit

Description

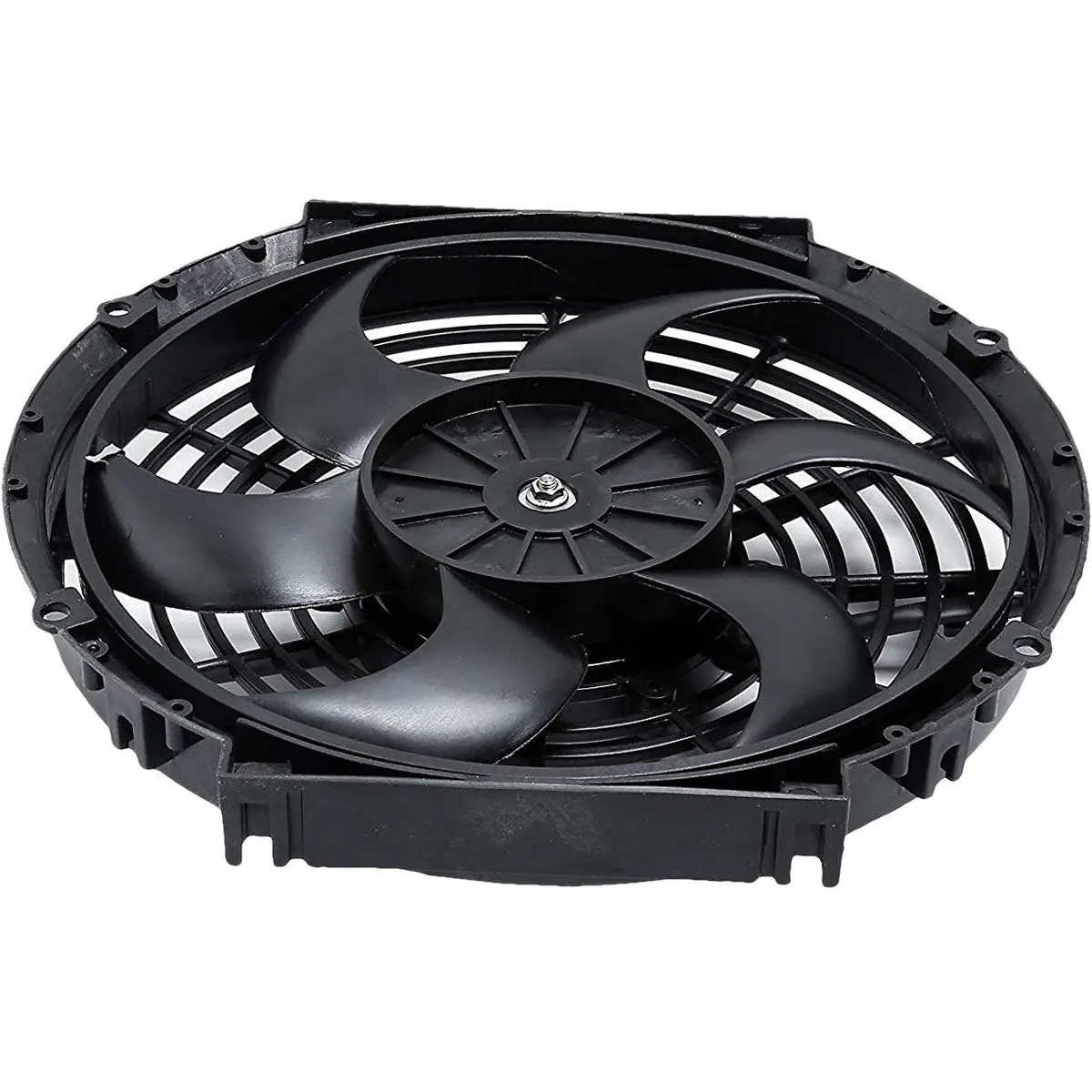

Electric Fan:

• Universal 12 volt high performance 10″ inch slim electric cooling fan.
• Upgraded 90 watt motor draws 9 amps, producing over 1861 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 11.5″ x 10.75″ x 2.5″ thickness at center and 1.4″ at edge.

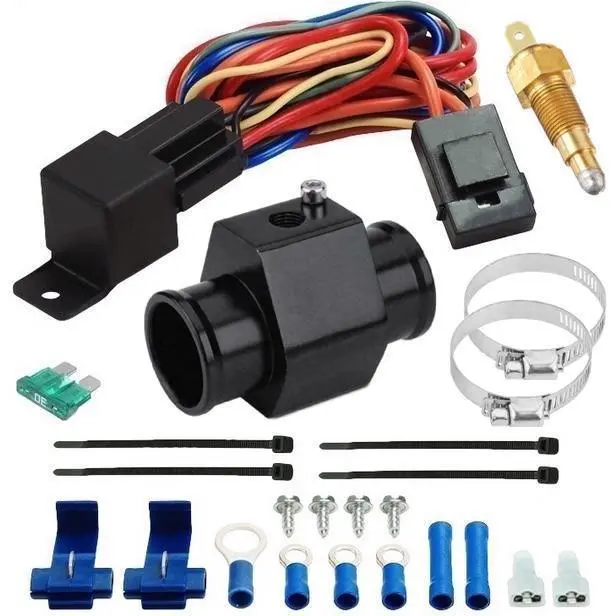

Wiring Kit:

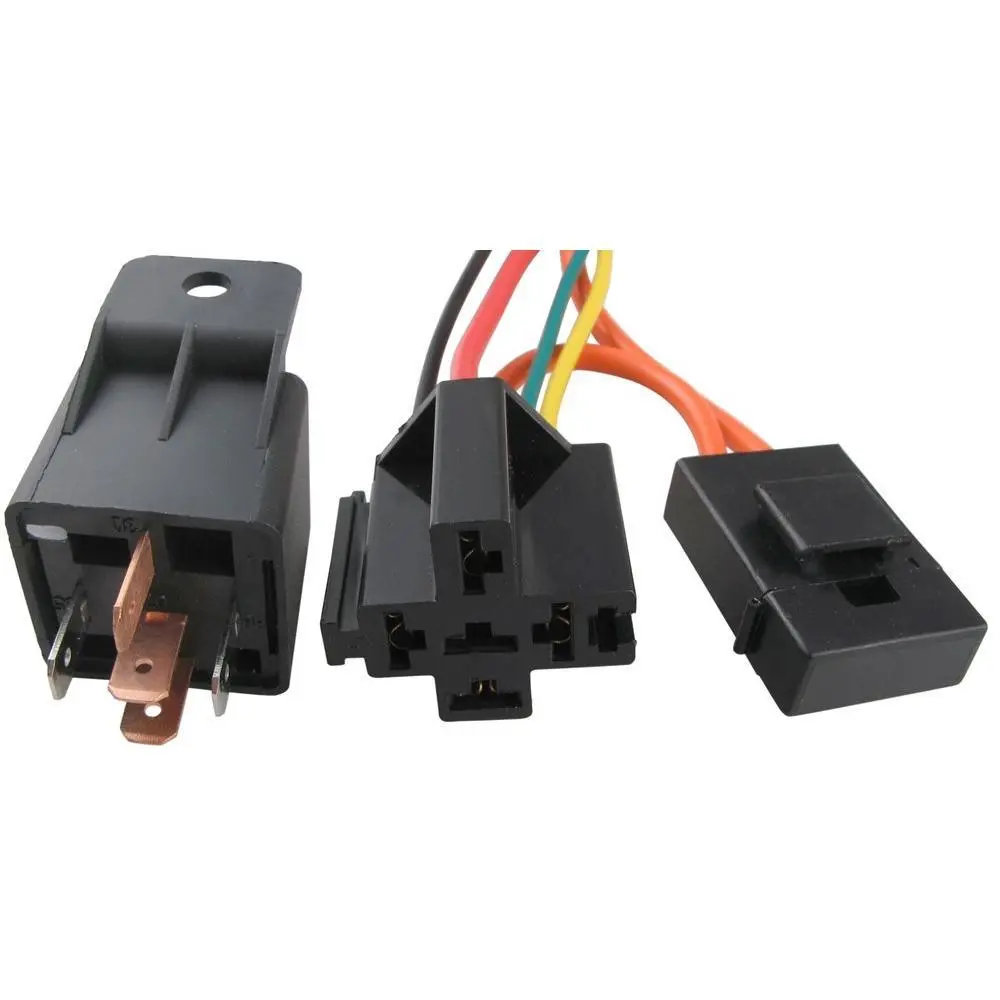

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

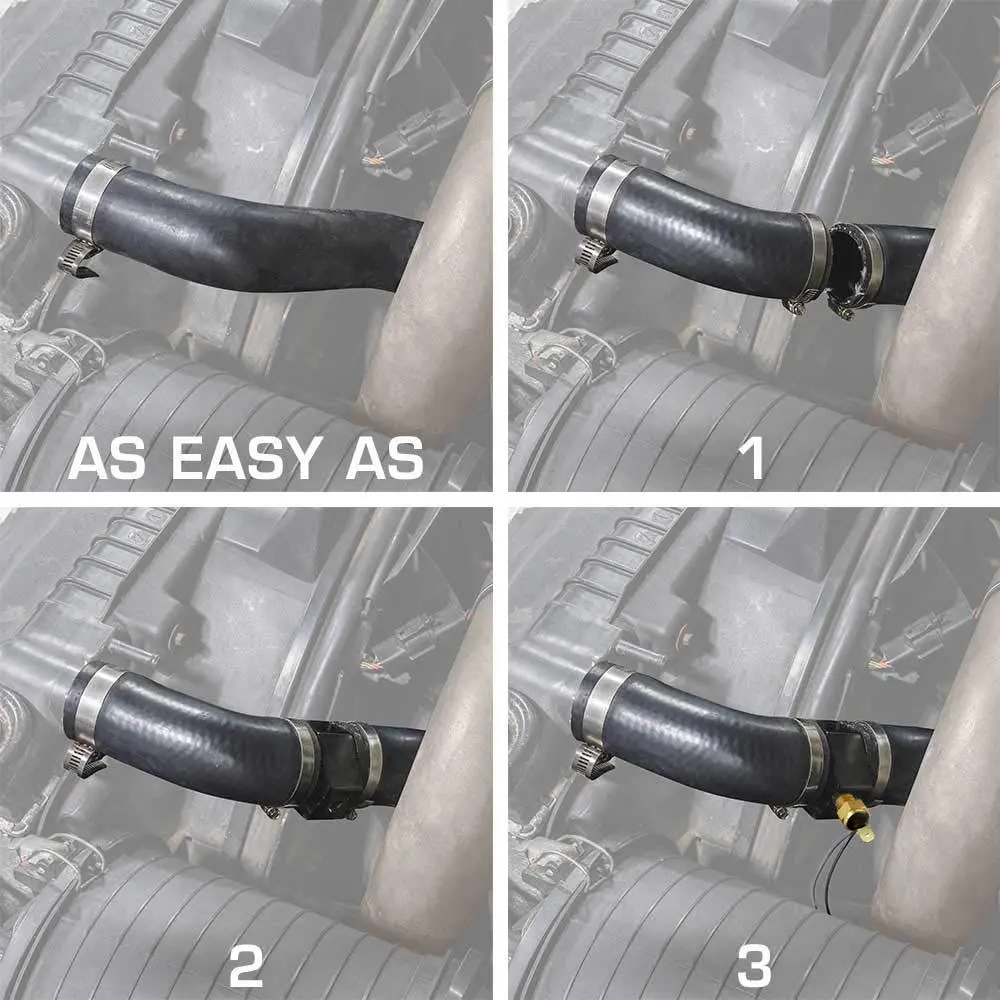

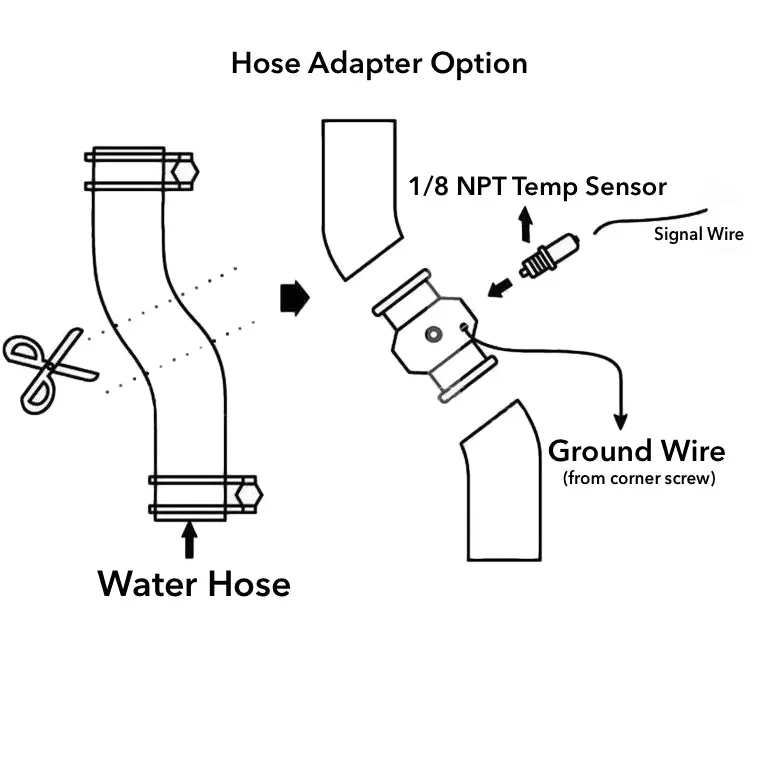

Fitting:

• Universal radiator hose electric fan thermostat temperature sensor.

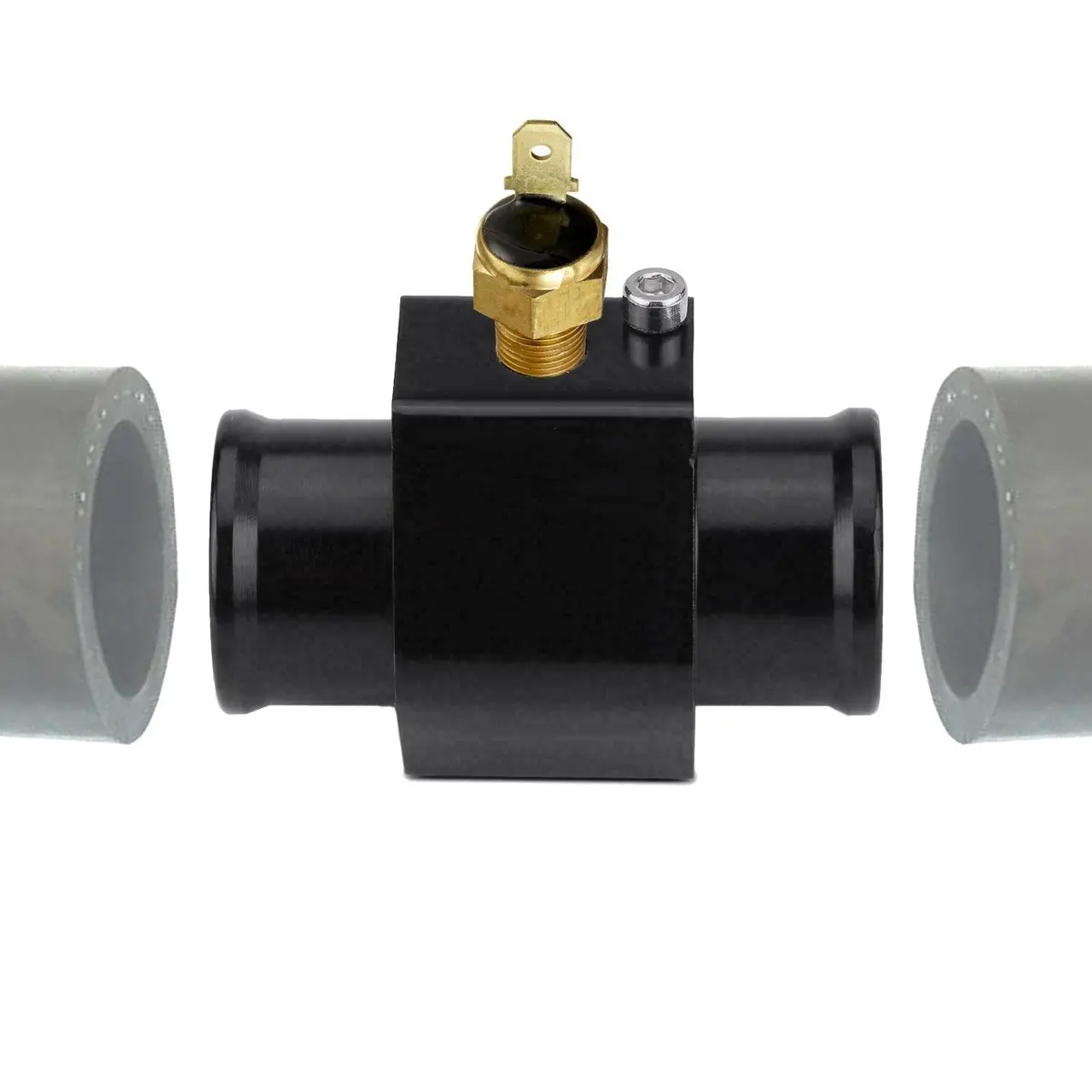

• Anodized aluminum in-line fitting adapter in various diameter sizes.
• Preset to ground fan or 12v accessory at the selected temperature.
• Single pin 1/8″ inch NPT brass thread-in probe grounding switch.
• Measures temp of any liquid including oil, water and coolant fluid.
