Description

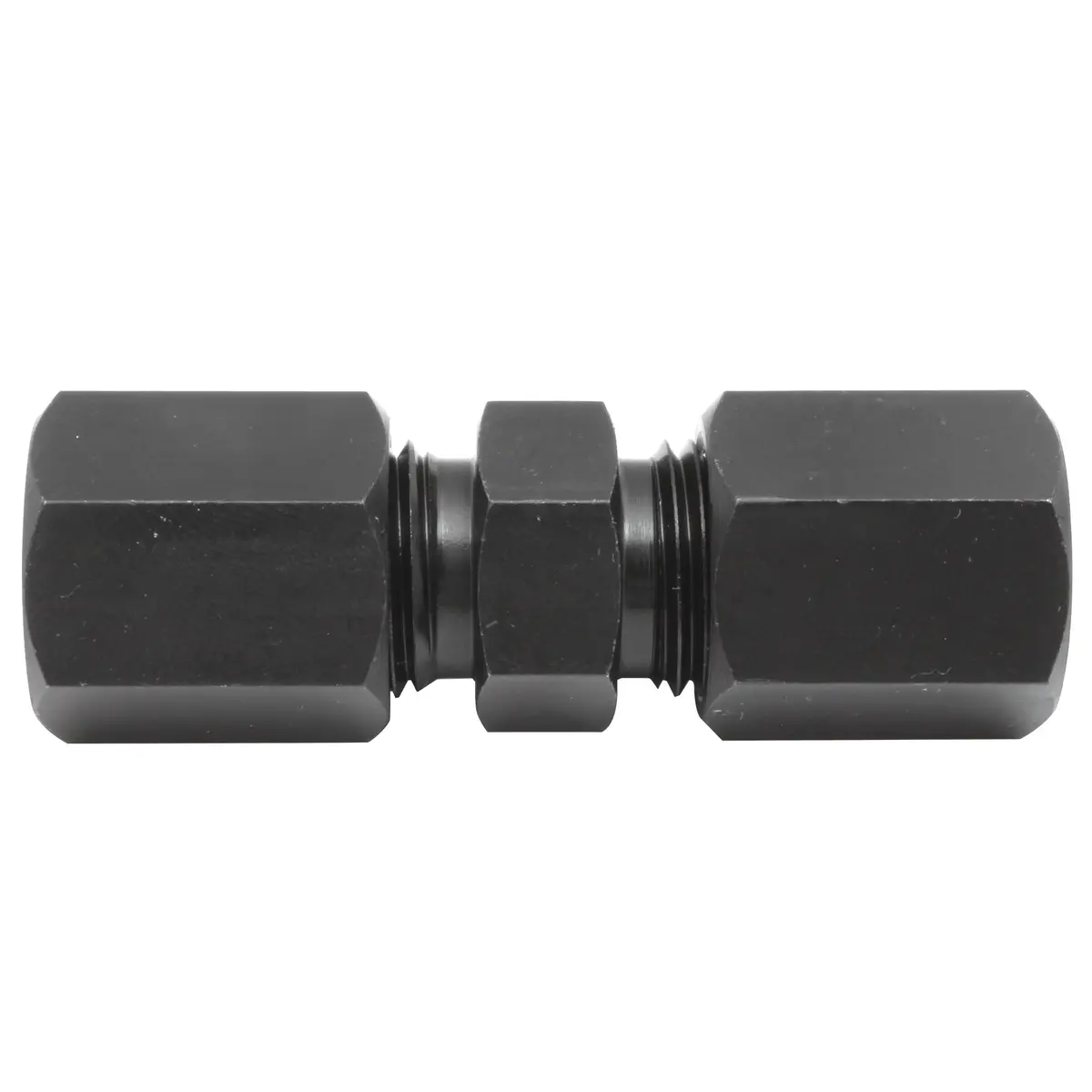

10mm High Pressure Compression Union
Tackle metric fuel, brake, and hydraulic lines with confidence using our 10 mm high-pressure compression union. Machined from nickel-plated brass and lab-tested beyond 3,000 psi (207 bar), this three-piece fitting delivers leak-proof performance—no flaring or soldering required. Join two 10 mm hard lines in minutes and get back on the road or jobsite.
Built for serious pressure
Cold-forming ferrule design: Bites into steel, copper-nickel, or stainless tubing for a permanent gas-tight seal.
Black Oxide-plated body: Combats road salt, ethanol, diesel, and hydraulic fluid corrosion.
True high-pressure rating: Exceeds FMVSS 106 brake-impulse standards and handles power-steering or hydro-boost pressures.
Quick install: Square-cut, deburr, slide nut + ferrule, tighten to spec—done.
Metric accuracy: Threads and bore precisely matched for 10 mm OD tubing.
Ideal applications
Metric brake hard lines • Diesel feed & return • Hydro-boost conversions • Power-steering pressure runs • Off-road air-locker plumbing • Industrial hydraulics up to 3 kpsi
Two-minute install
-
Cut both tube ends square; deburr inside and out.
-
Slide compression nut and ferrule onto each tube.
-
Insert tube fully into union body; finger-tighten nuts.
-
Wrench an additional 1¼ turns (see torque chart on the bag).
-
Pressure-test—no bubbles, no drips, ready to roll.
Shop tip: A dab of light oil on the nut threads helps hit full clamp load smoothly.
