Description
Fluid Cooler:

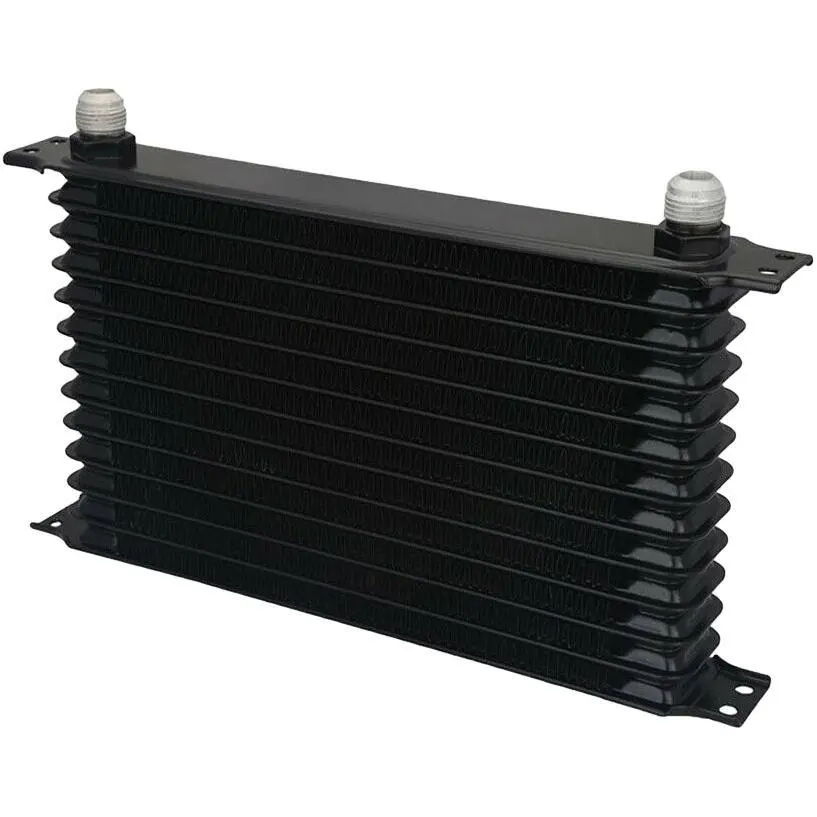

- Universal 13 row plate and fin aluminum heavy duty transmission cooler kit.
- Extend transmission life by helping prevent heat-related transmission failures.
- Perfect for light to medium duty car, truck or SUV use with occasional towing.

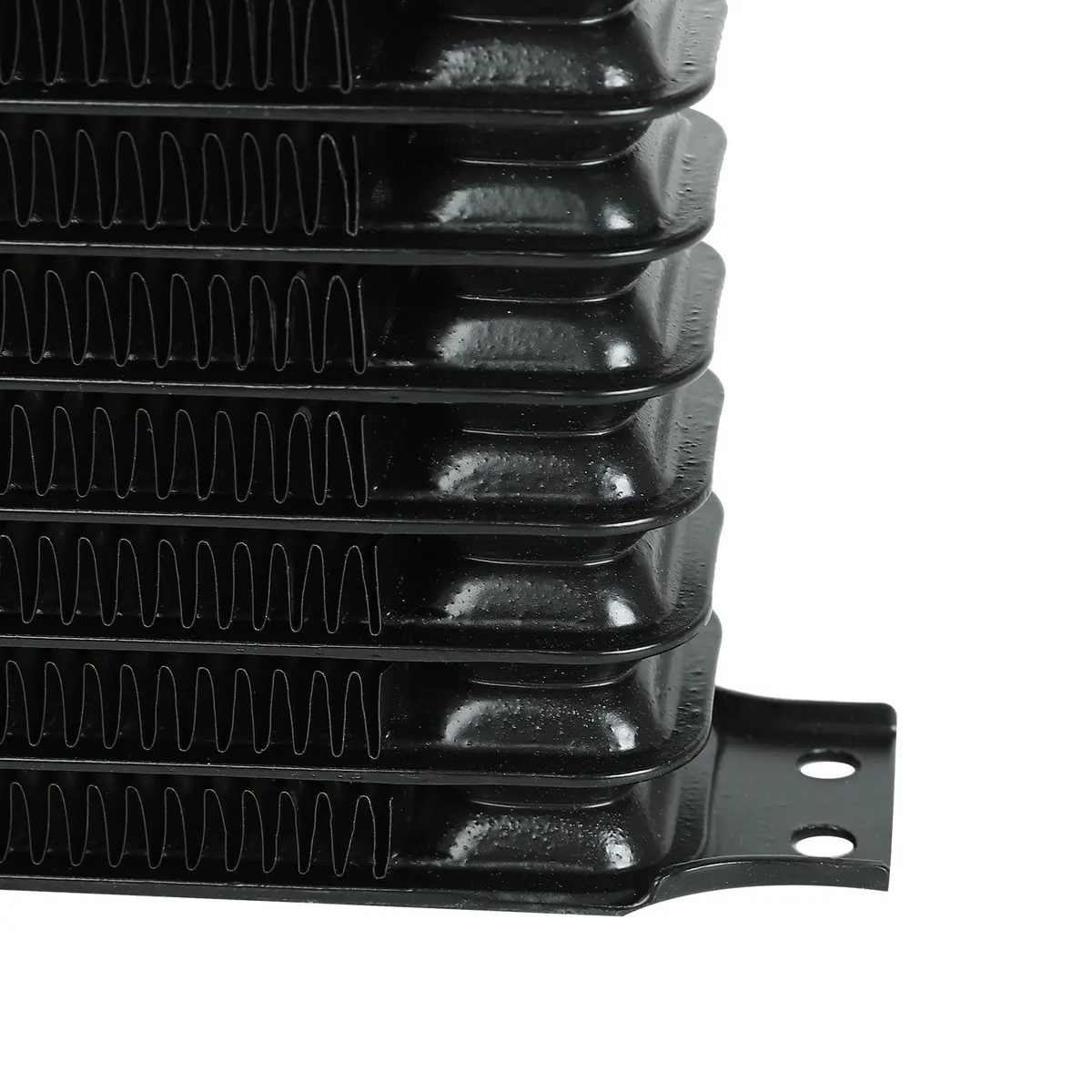

- 1 1/4″ wide plates and embossed turbulators, which maximize heat transfer.
- Dimensions: 2″ x 8.4″ x 13.4″ with AN male hose fittings and BTU 21000.

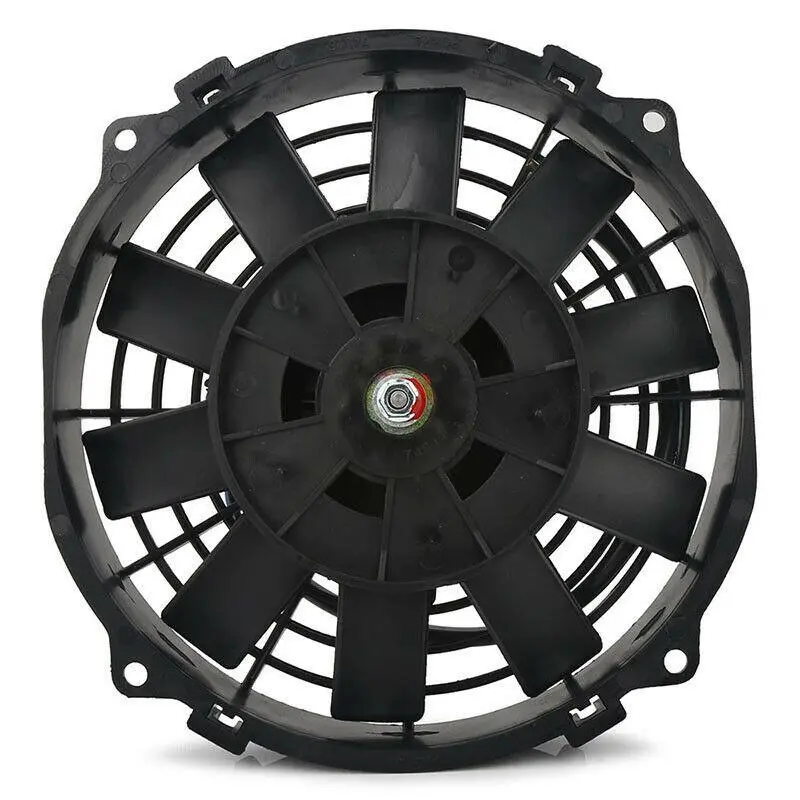

Electric Fan:

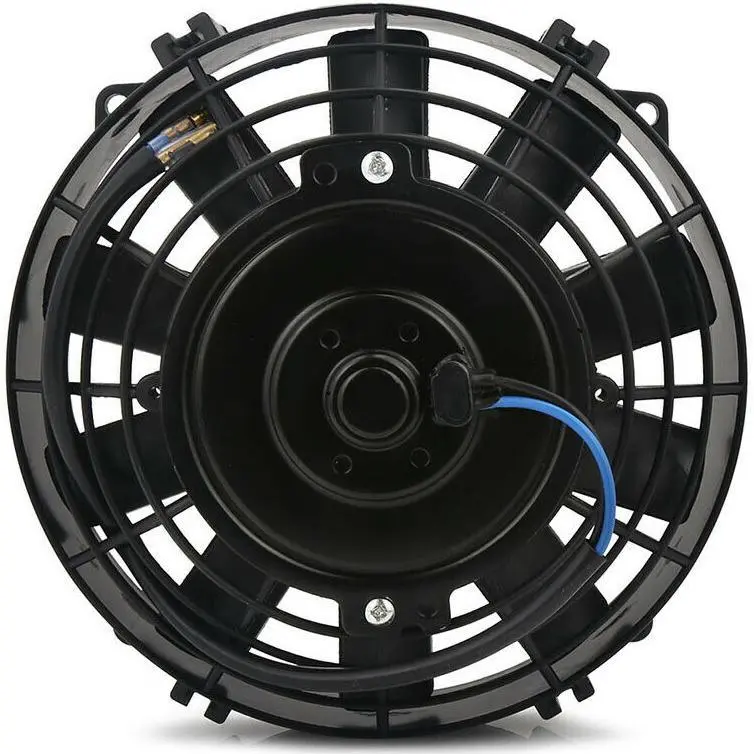

- Universal 12 volt high performance 6 inch small electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
- Configured as an air puller to be on the inside and pull air through.

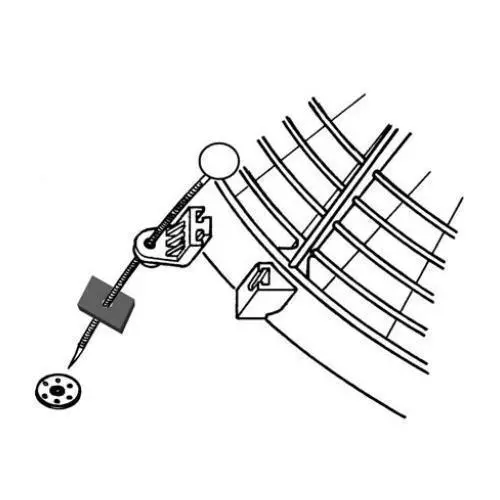

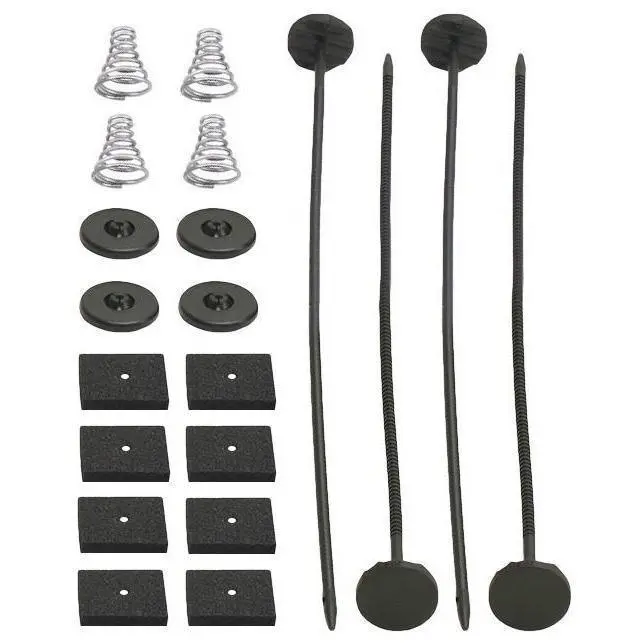

- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 7.2″ x 7″ x 2.4″ thickness at center and slim 1.4″ at edge.

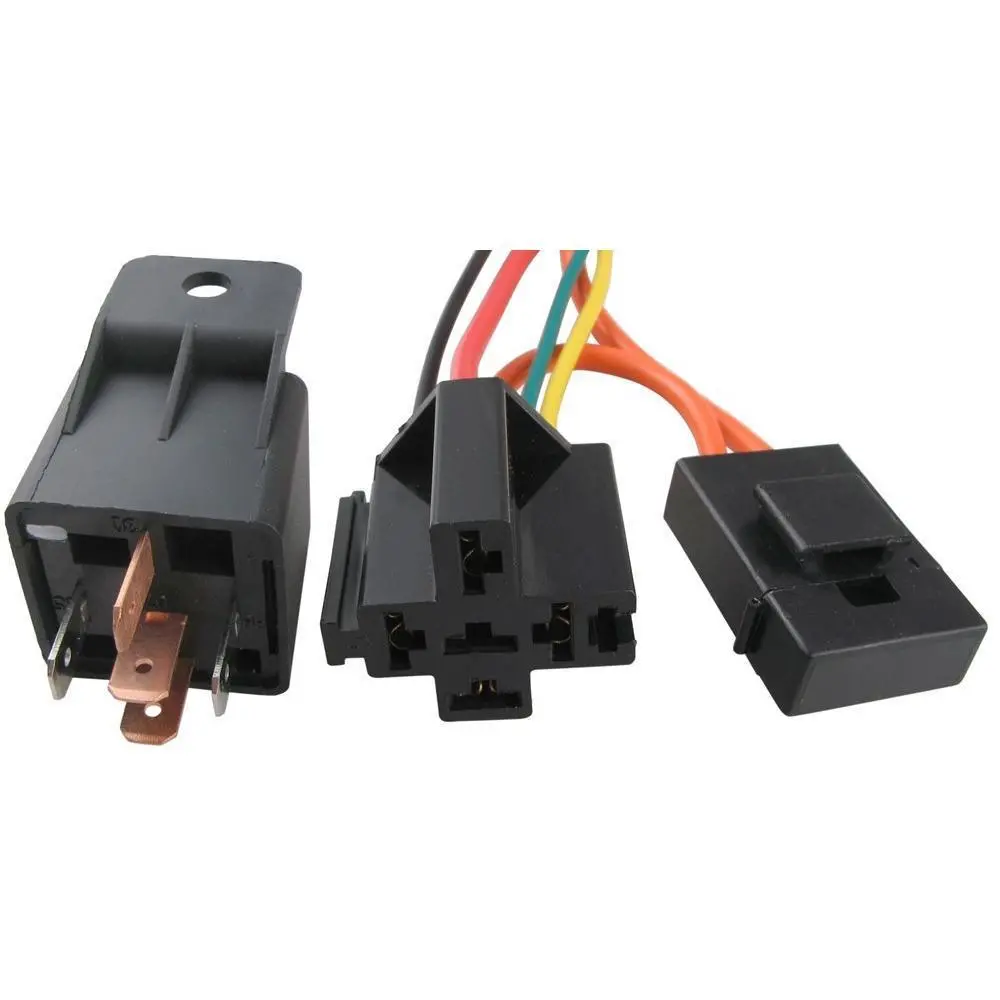

Wiring Kit:

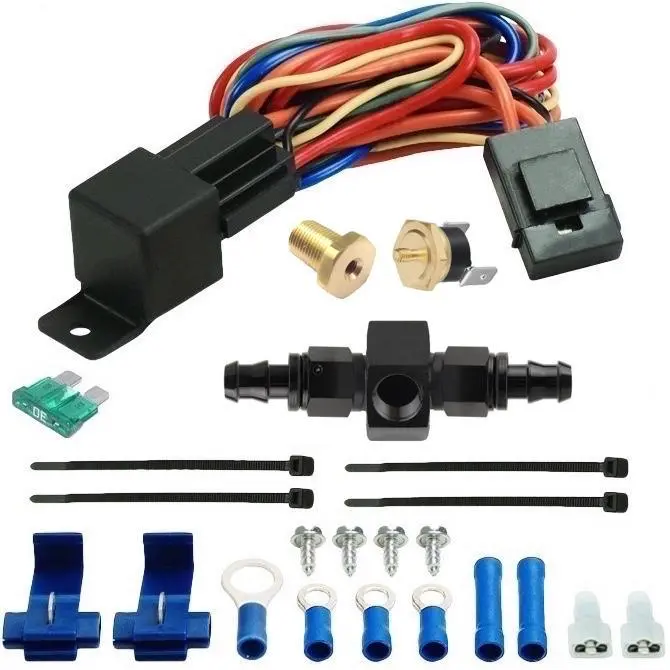

- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Fitting:

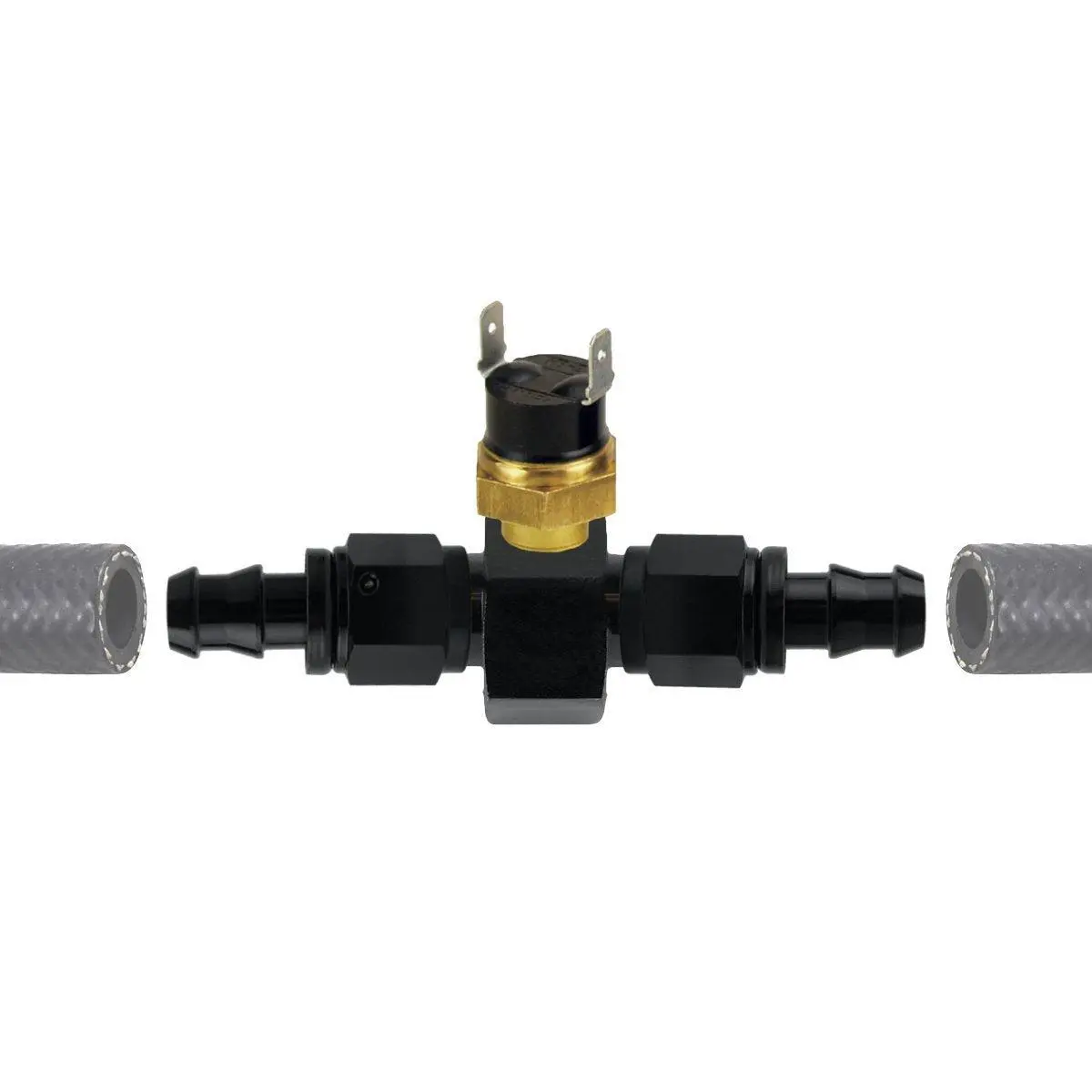

- Universal AN in-line electric fan thermostat temperature switch kit.
- 1/8″ inch NPT brass thread-in probe and dual pin disconnect switch.
- Preset to power fan or 12v accessory at the selected temperature.
- Anodized aluminum barbed straight push-on hose fitting adapters.
- Measures temp of any liquid including oil, water and coolant fluid.
