Description
Electric Fan:

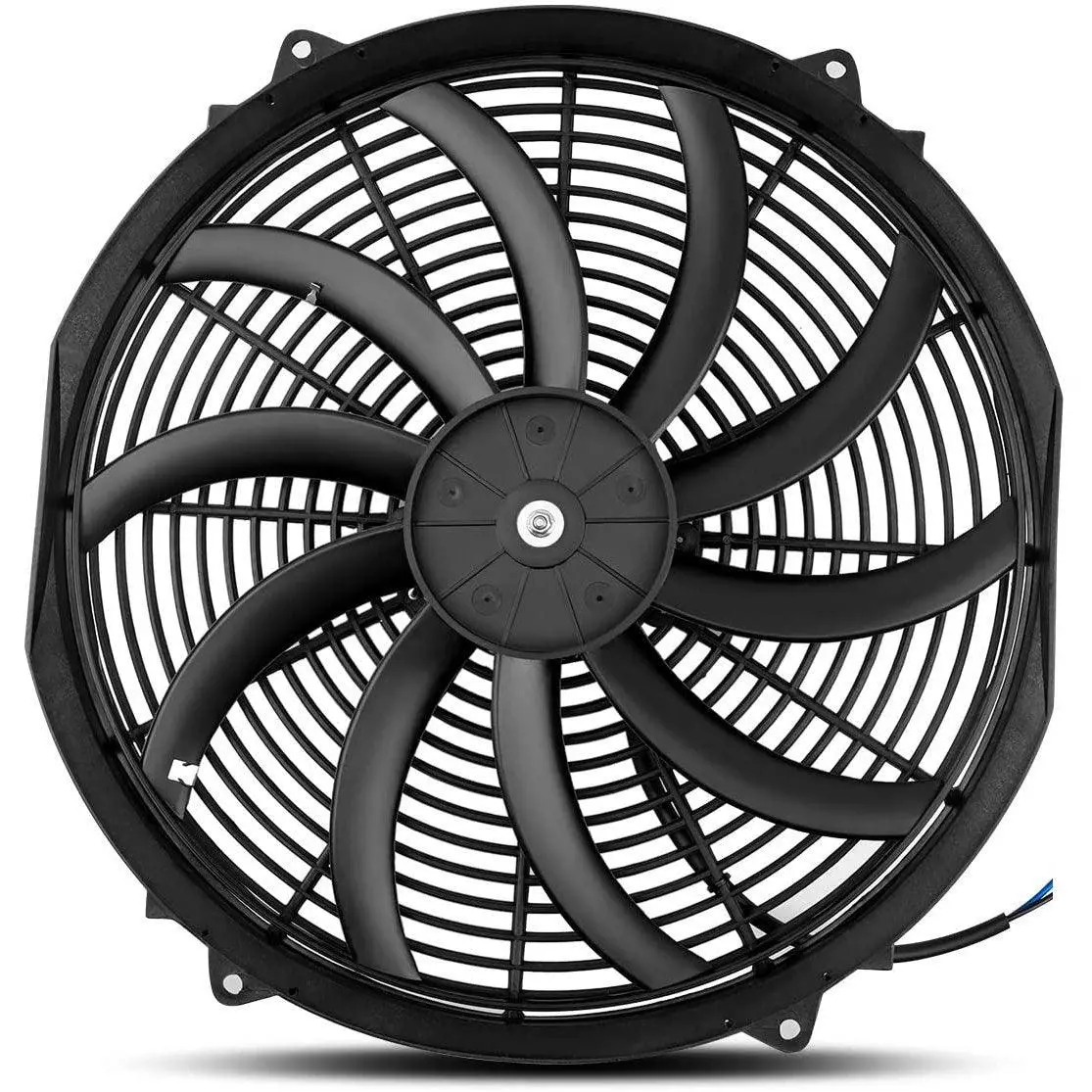

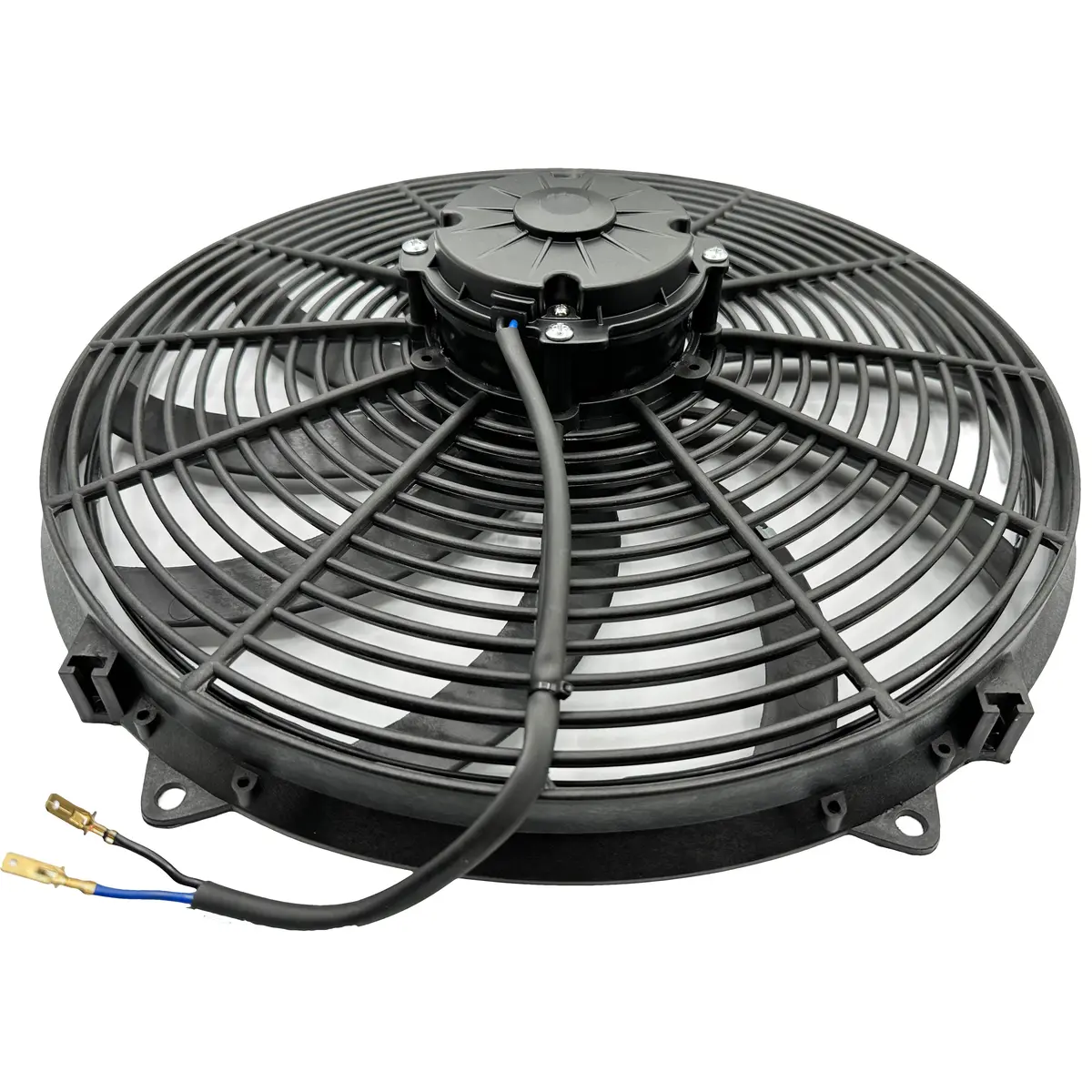

- Universal 12v high performance 16 inch electric radiator cooling fan.
- Upgraded 180 watt motor draws 15 amps producing over 3189 CFM.
- Configured as an air puller by default or reversible to an air pusher.
- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 16.75″ x 16″ x 4″ thickness at center and slim 1.4″ at edge.
Wiring Kit:

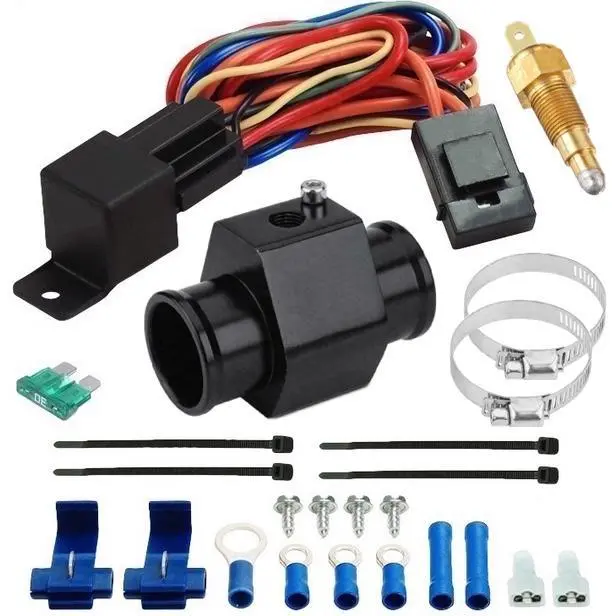

- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Fitting:

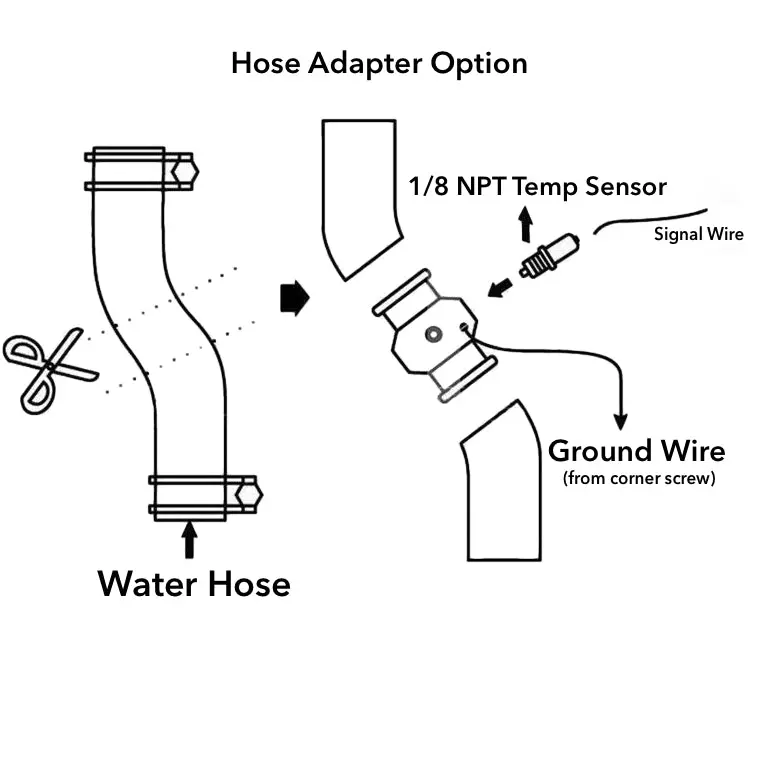

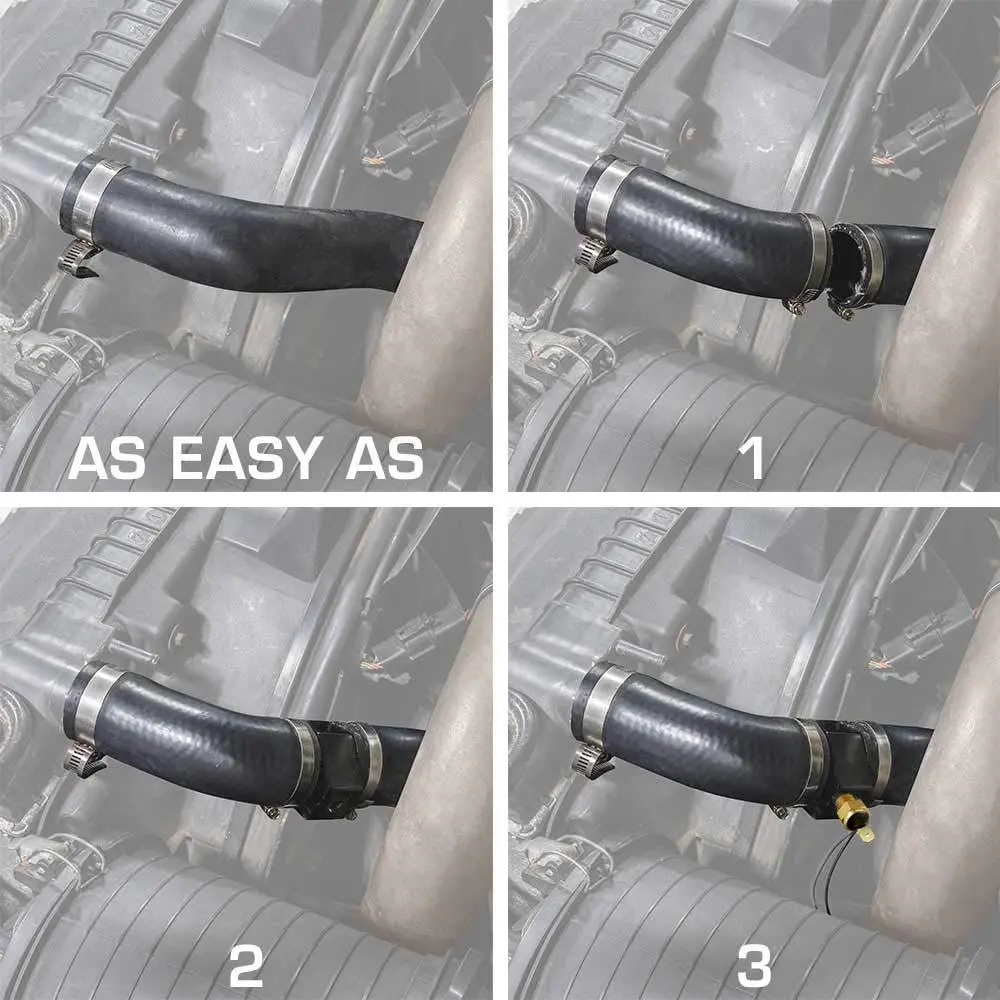

- Universal radiator hose electric fan thermostat temperature sensor.

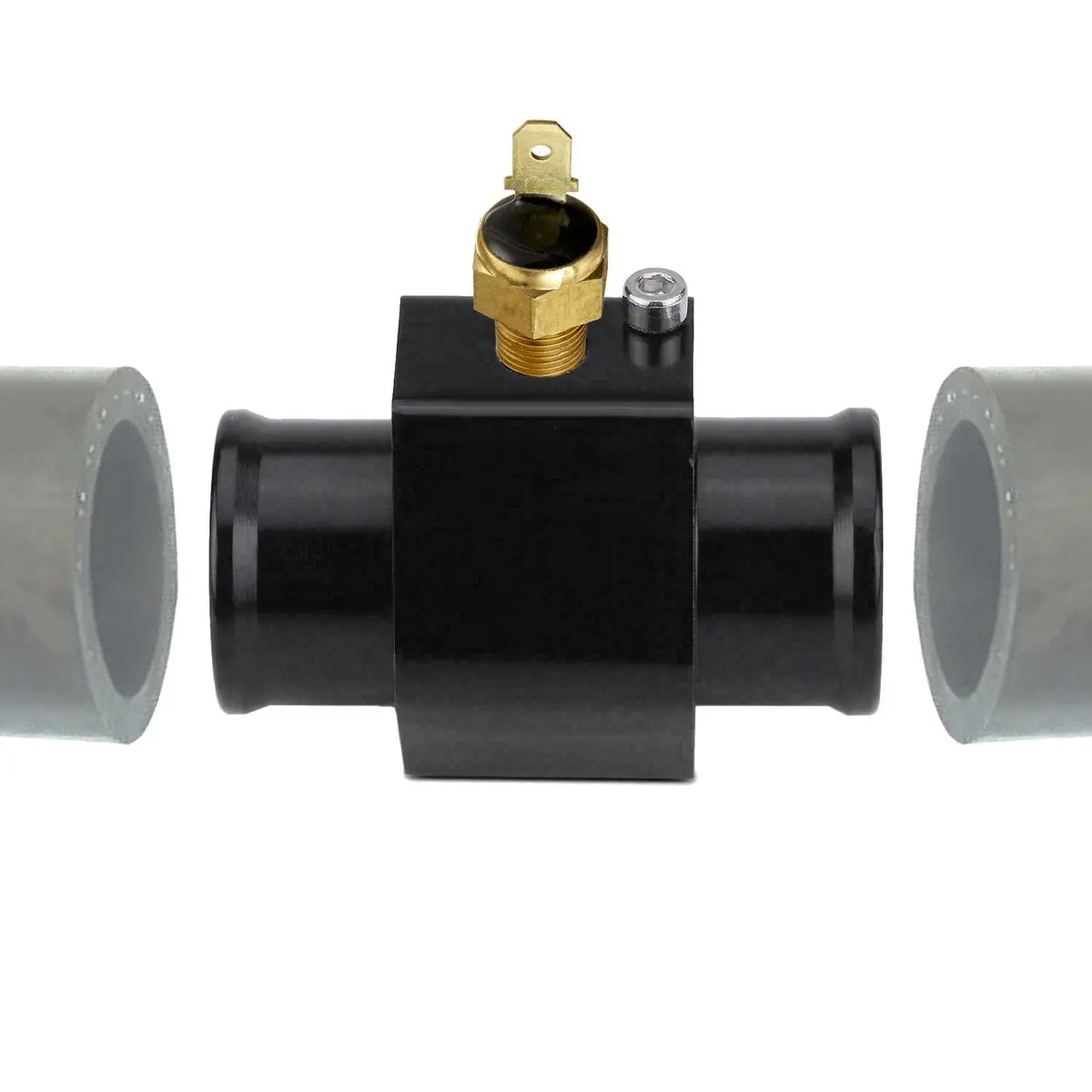

- Anodized aluminum in-line fitting adapter in various diameter sizes.
- Preset to ground fan or 12v accessory at the selected temperature.
- Single pin 1/8″ inch NPT brass thread-in probe grounding switch.
- Measures temp of any liquid including oil, water and coolant fluid.
