Description
Fluid Cooler:
- Universal 23 row plate and fin aluminum heavy duty transmission cooler kit.
- Extend transmission life by helping prevent heat-related transmission failures.
- Perfect for medium to full-size cars, trucks and SUVs with occasional towing.
- 7/8″ wide plates, 3/4″ embossed turbulators which maximizes heat transfer.
- Dimensions: 0.75″ x 9.5″ x 11″ with 3/8″ hose barb inlets, GVW 24000 lbs.

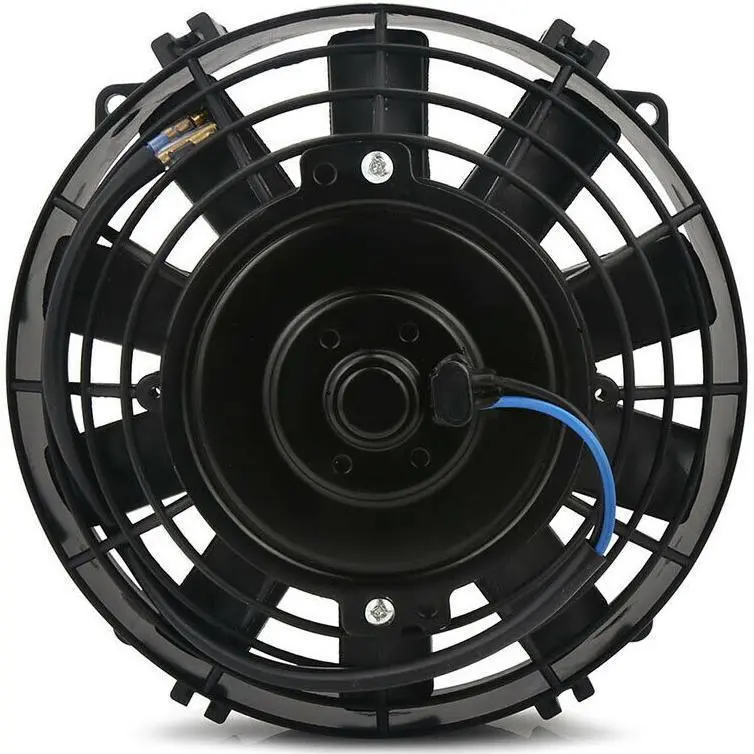

Electric Fan:
- Universal 12 volt high performance 8″ inch small electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
- Configured as an air puller to be on the inside and pull air through.
- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 8.5″ x 7.75″ x 2.4″ thickness at center and 1.4″ at edge.
Wiring Kit:
- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Thermostat:
- Universal adjustable automotive electric fan thermostat switch sensor.
- Turn-on range of 32-248’F with turn-off always set at 15 degrees less.
- 3 pin design allows for wiring as a normally open or closed circuit.
- Probe pushes between radiator fins or inserts into coolant hose line.
- Detailed install instructions, wiring diagram and hardware included.
