Description

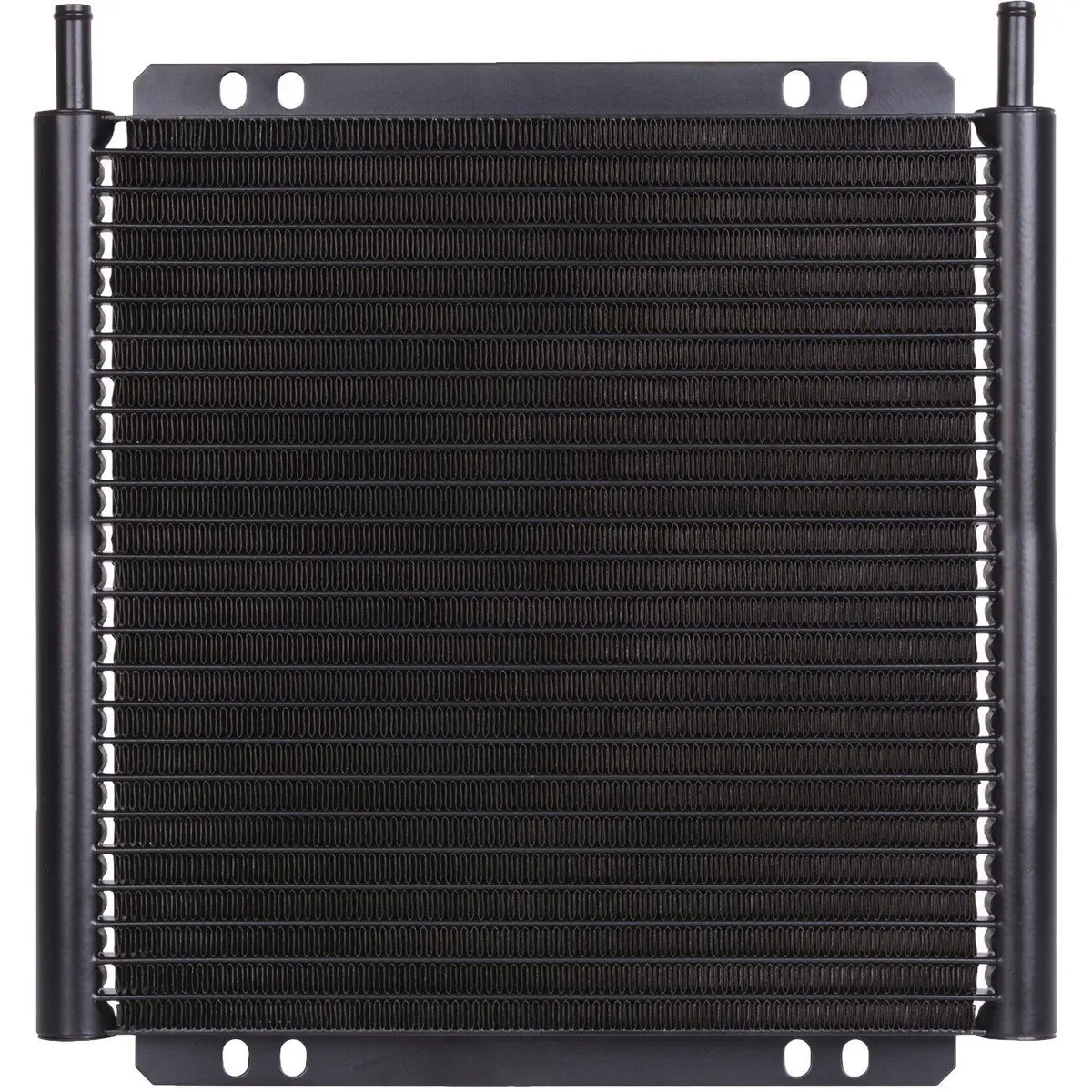

Fluid Cooler:
- Universal 26 row plate and fin aluminum heavy duty transmission cooler kit.
- Extend transmission life by helping prevent heat-related transmission failures.
- Perfect for any car, truck or SUV with heavy duty use and consistent towing.
- 7/8″ wide plates, 3/4″ embossed turbulators which maximizes heat transfer.
- Dimensions: 0.75″ x 11″ x 11.625″ with 3/8″ barbed inlets, GVW 30000 lbs.

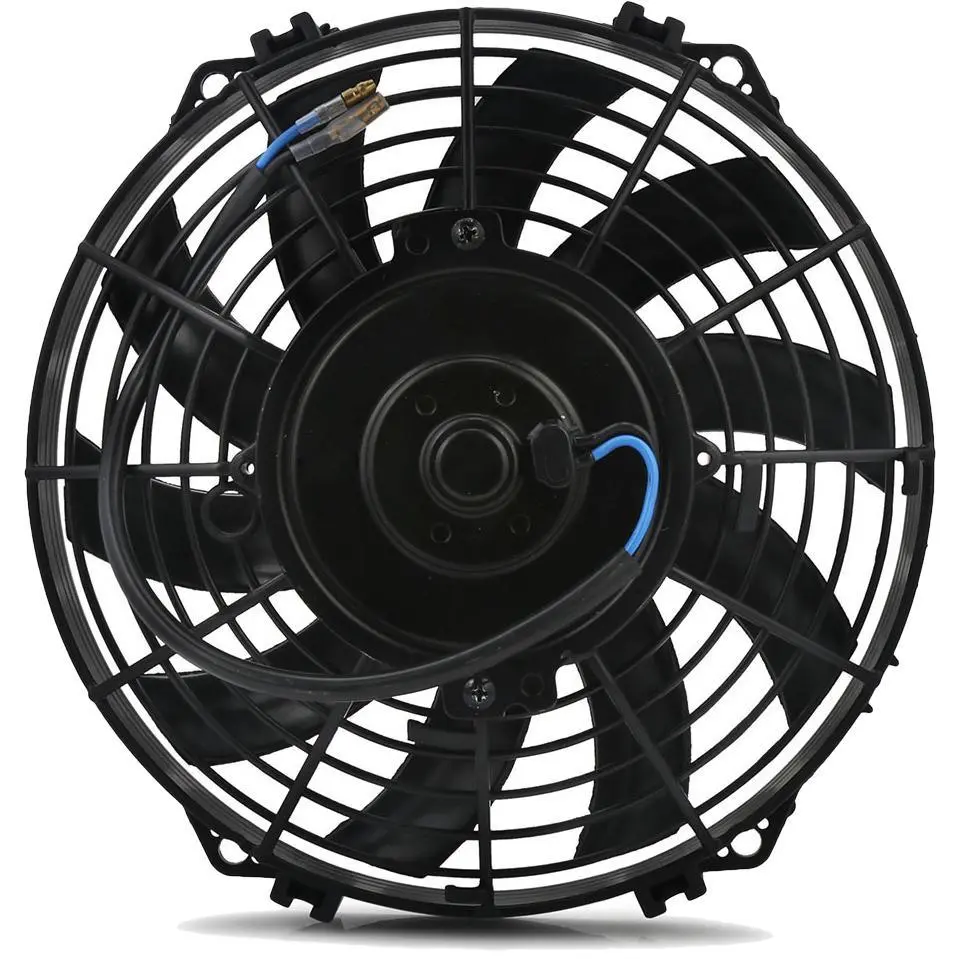

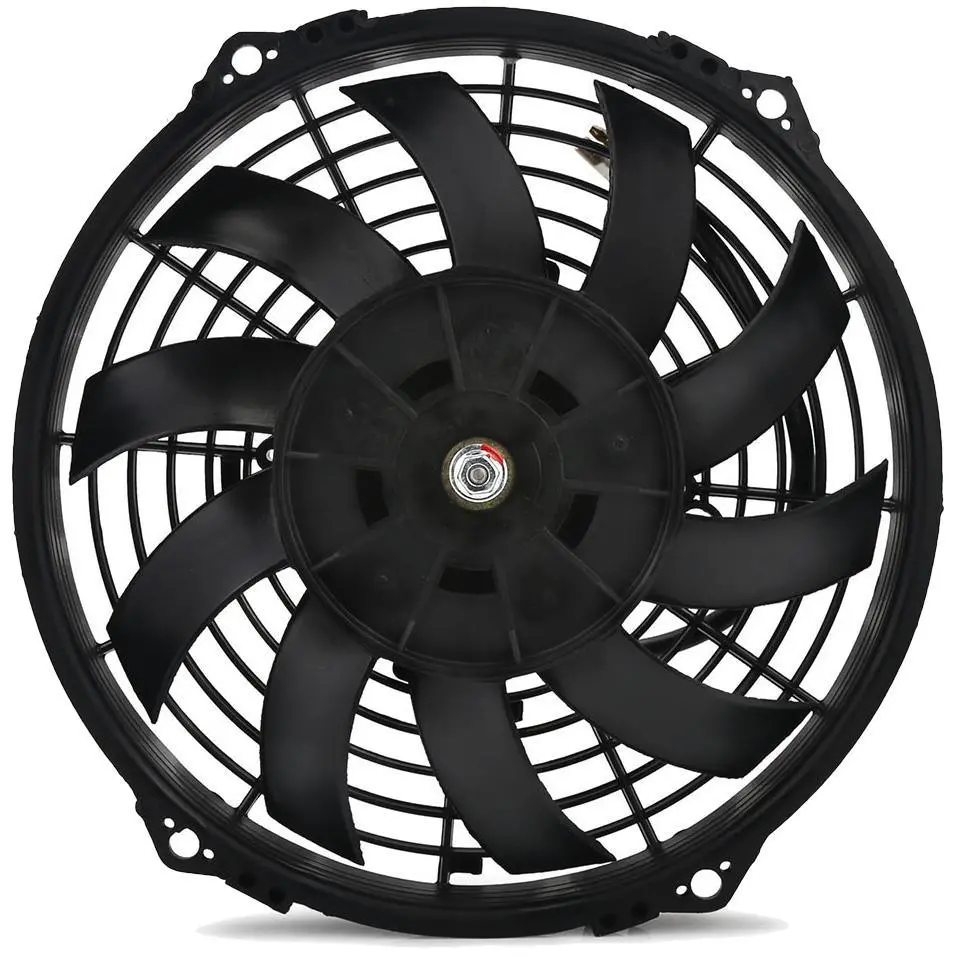

Electric Fan:
- Universal 12 volt high performance 9 inch slim electric cooling fan.
- Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
- Configured as an air puller by default or reversible to an air pusher.

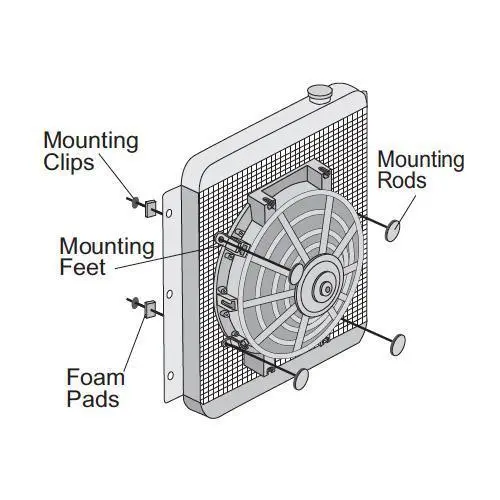

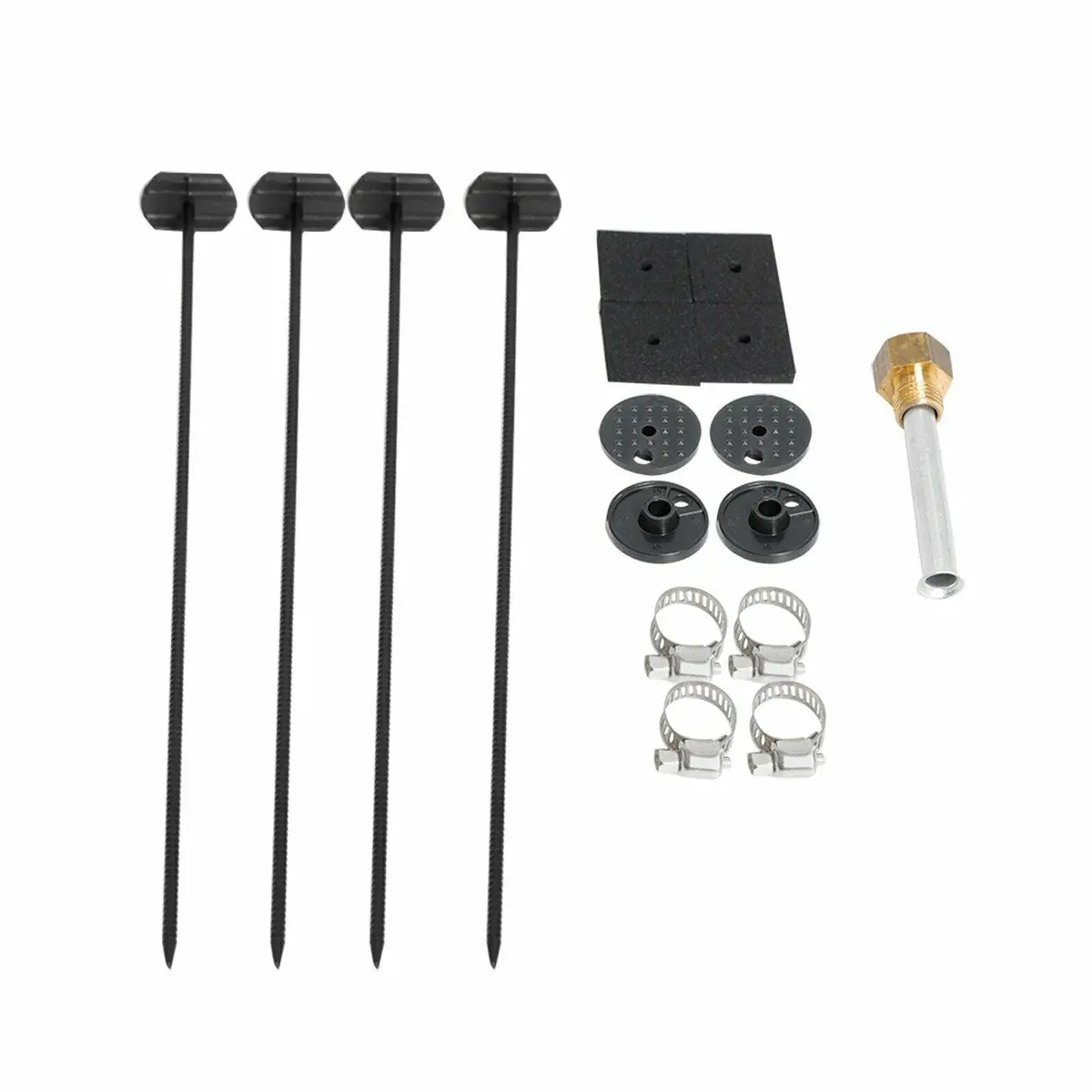

- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 9.75″ x 9.75″ x 2.4″ thickness at center and 1.1″ at edge.

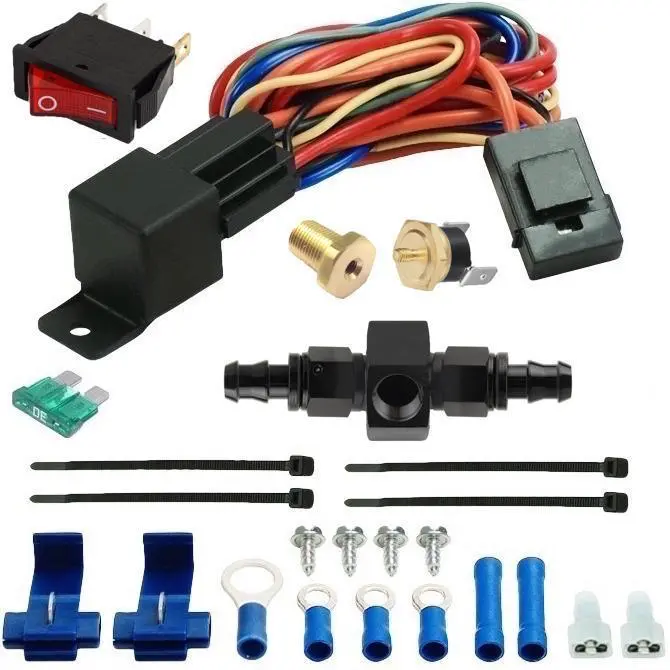

Wiring Kit:
- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.

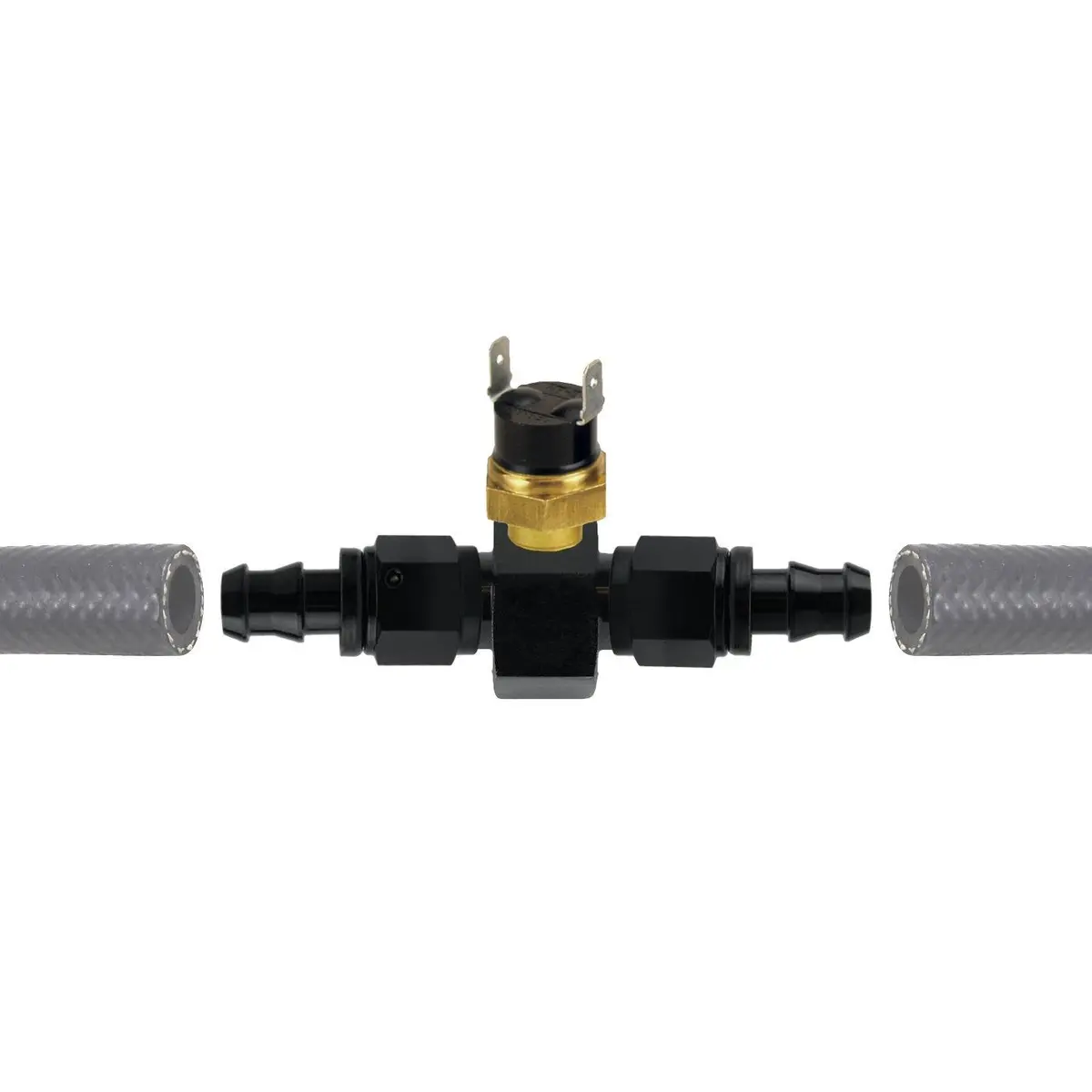

Hose Fitting:
- Universal 6AN in-line electric fan thermostat temperature switch kit.
- 1/8″ inch NPT brass thread-in probe and dual pin disconnect switch.
- Preset to power fan or 12v accessory at the selected temperature.
- Anodized aluminum barbed straight push-on hose fitting adapters.
- Measures temp of any liquid including oil, water and coolant fluid.
