30-Row 6AN–10AN Hose Engine and Transmission Oil Cooler Fan System

Description

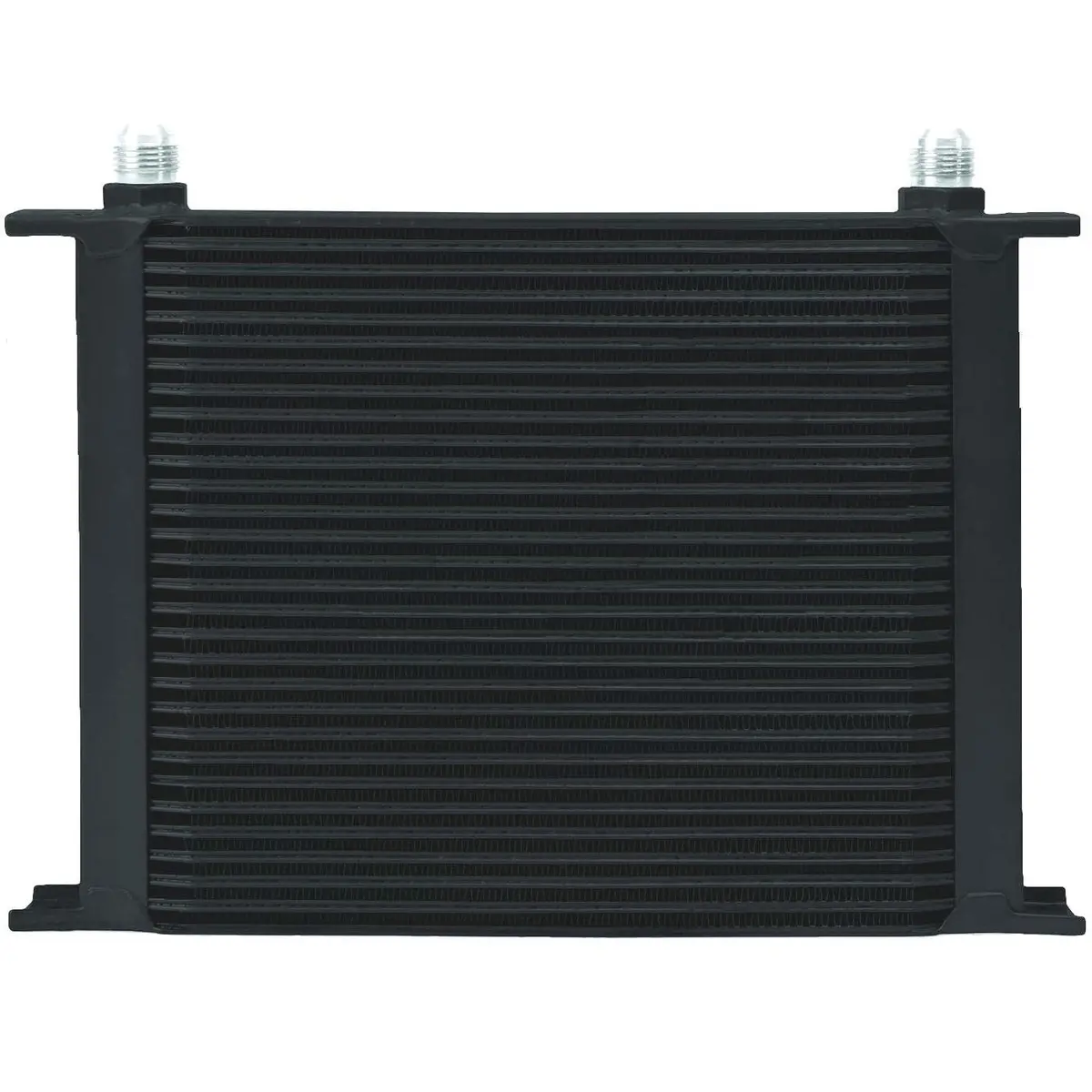

Fluid Cooler:

• 30 row stacked plate black aluminum heavy duty engine transmission cooler.
• Minimal pressure drop and to be used for engine, transmission or fuel cooling.
• Furnace brazed aluminum construction with 4 integrated mounting brackets.
• Full 2″ deep turbulator-equipped plates and a matte black powder coat finish.
• Dimensions: 2″ x 9.8″ x 13″ with AN hose end fittings and 50000 BTU per hour.
• Oil cooler full capacity: 0.74L; Test pressure: 116psi and Burst pressure: 232psi.

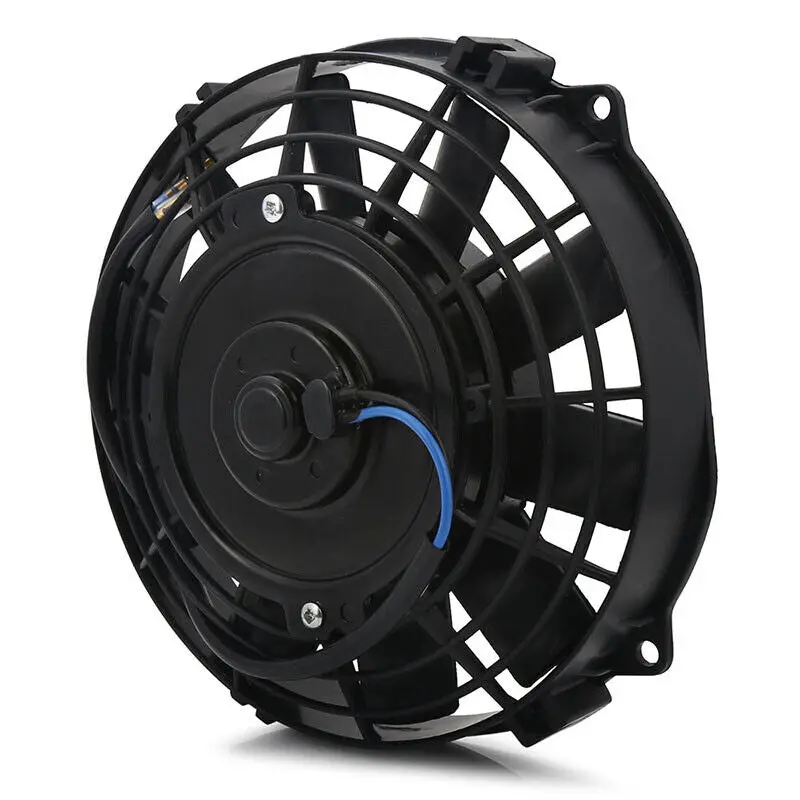

Electric Fan:

• Universal 12 volt high performance 8″ inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.
• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 8.5″ x 7.75″ x 2.4″ thickness at center and 1.4″ at edge.
