30-Row Transmission Oil Cooler Fan with Adjustable Thermostat Wiring Kit

Description

Fluid Cooler:

• 30 row stacked plate black aluminum heavy duty engine transmission cooler.
• Minimal pressure drop and to be used for engine, transmission or fuel cooling.
• Furnace brazed aluminum construction with 4 integrated mounting brackets.
• Full 2″ deep turbulator-equipped plates and a matte black powder coat finish.
• Dimensions: 2″ x 9.8″ x 13″ with AN hose end fittings and 50000 BTU per hour.
• Oil cooler full capacity: 0.74L; Test pressure: 116psi and Burst pressure: 232psi.

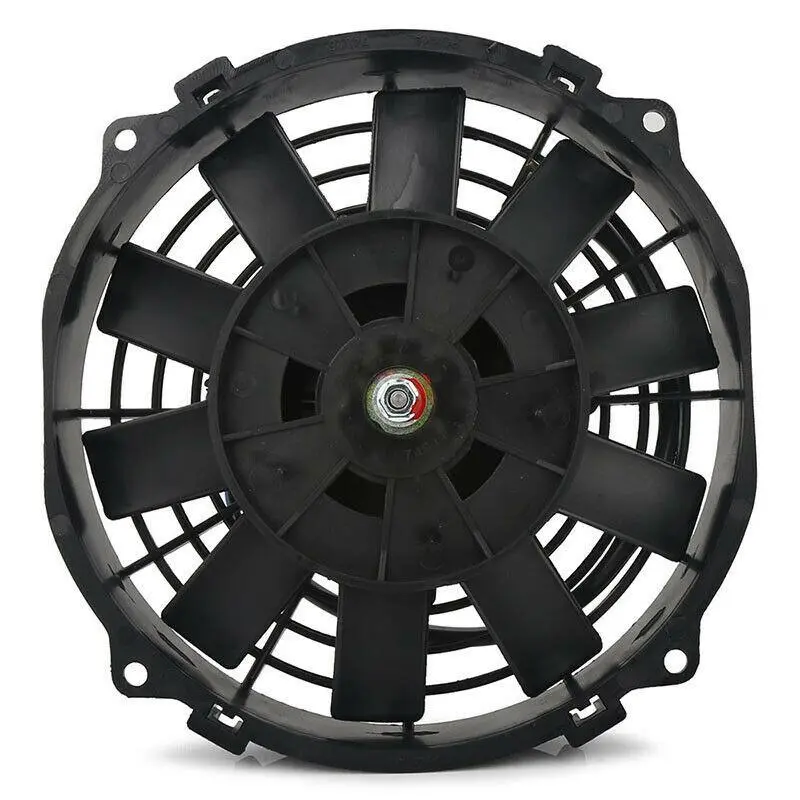

Electric Fan:

• Universal 12 volt high performance 8 inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.
• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 8.5″ x 7.75″ x 2.4″ thickness at center and 1.4″ at edge.

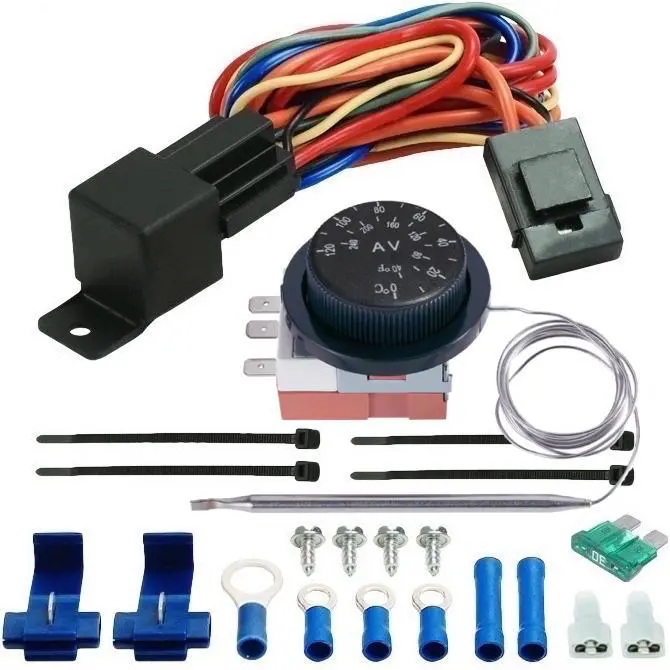

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Thermostat:

• Universal adjustable automotive electric fan thermostat switch sensor.
• Turn-on range of 32-248’F with turn-off always set at 15 degrees less.
• 3 pin design allows for wiring as a normally open or closed circuit.
• Probe pushes between radiator fins or inserts into coolant hose line.
• Detailed install instructions, wiring diagram and hardware included.
