Description

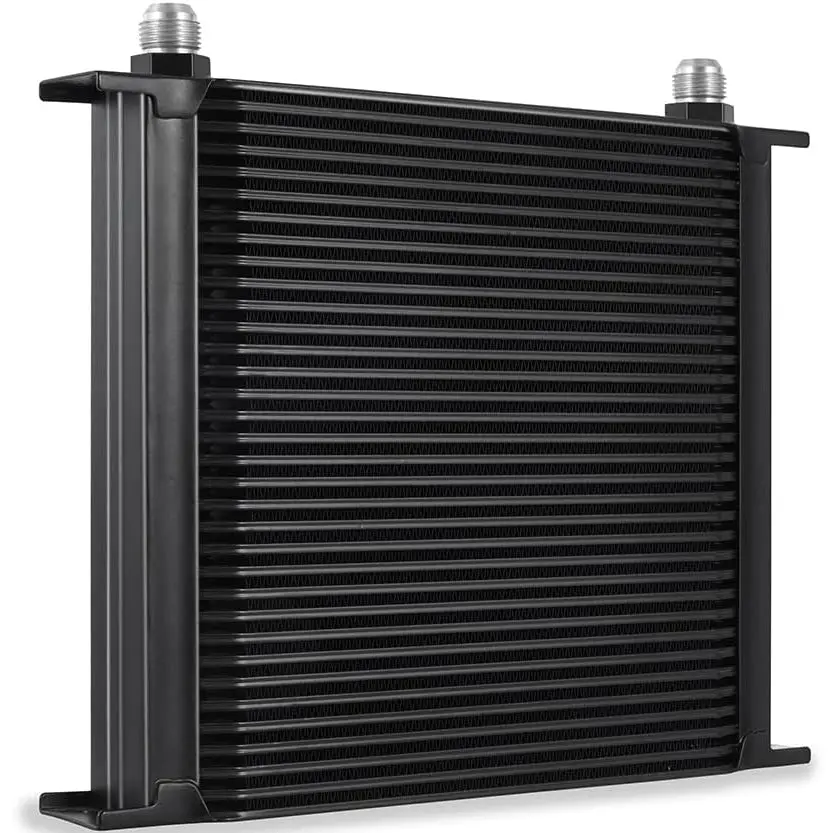

Fluid Cooler:
- Universal 34 stacked plate aluminum heavy duty engine transmission cooler.
- Minimal pressure drop and to be used for engine, transmission or fuel cooling.
- Furnace brazed aluminum construction with 4 integrated mounting brackets.
- Full 2″ deep turbulator-equipped plates and a matte black powder coat finish.
- Dimensions: 2″ x 10.9″ x 13″ with AN hose fittings and 56000 BTU per hour.
Electric Fan:
- Universal 12 volt high performance 9 inch slim electric cooling fan.
- Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
- Configured as an air puller by default or reversible to an air pusher.
- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 9.75″ x 9.75″ x 2.4″ thickness at center and 1.1″ at edge.

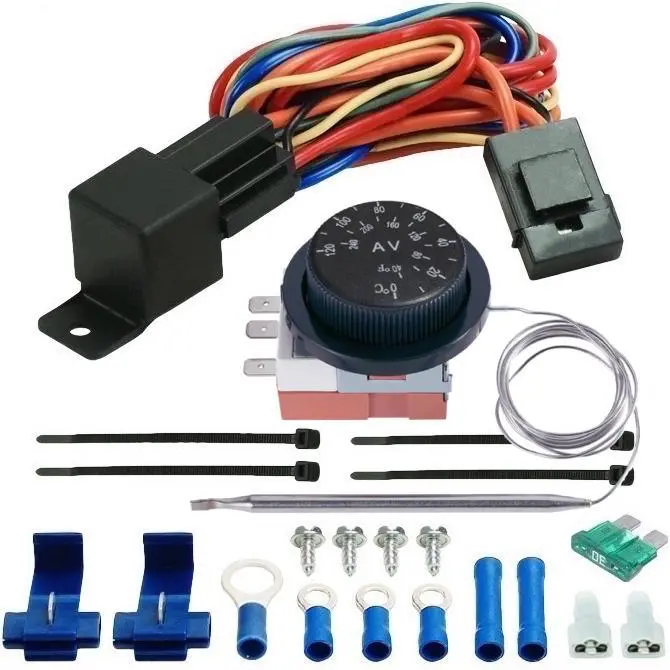

Wiring Kit:
- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Thermostat:
- Universal adjustable automotive electric fan thermostat switch sensor.
- Turn-on range of 32-248’F with turn-off always set at 15 degrees less.
- 3 pin design allows for wiring as a normally open or closed circuit.
- Probe pushes between radiator fins or inserts into coolant hose line.
- Detailed install instructions, wiring diagram and hardware included.
