Description

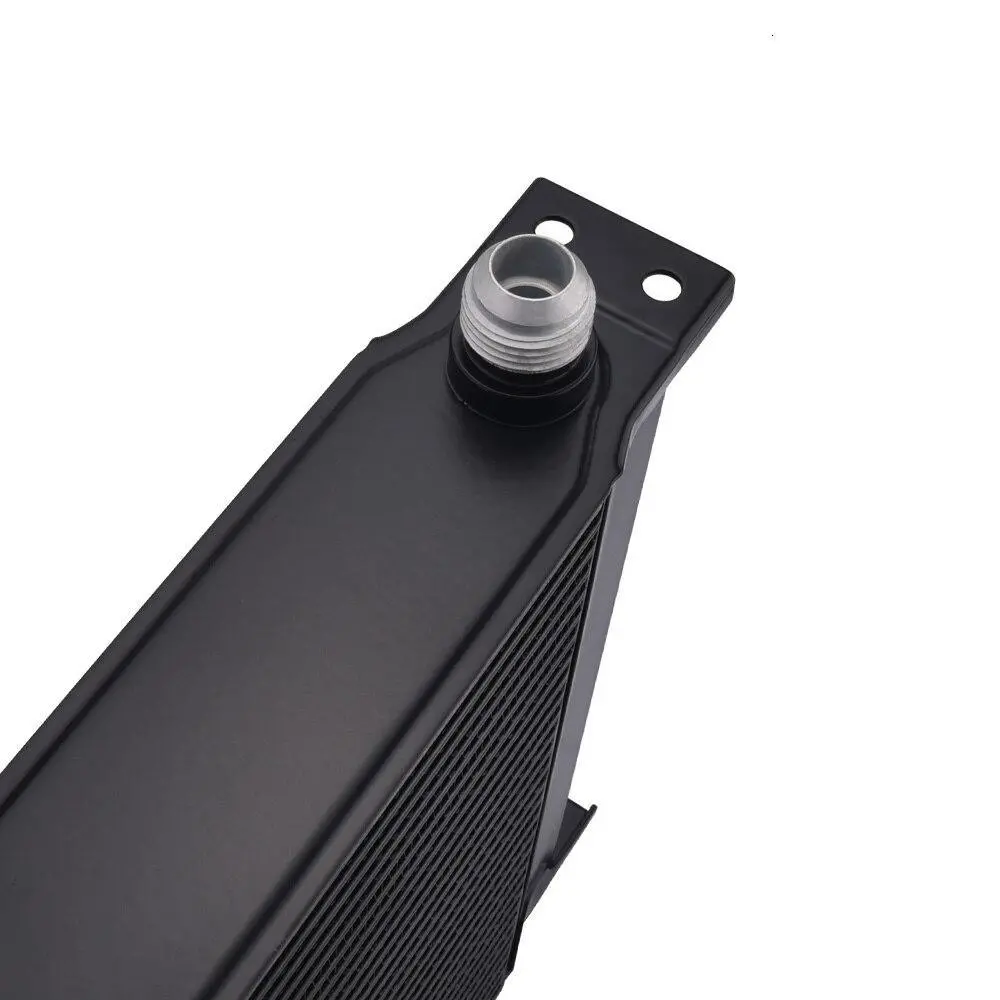

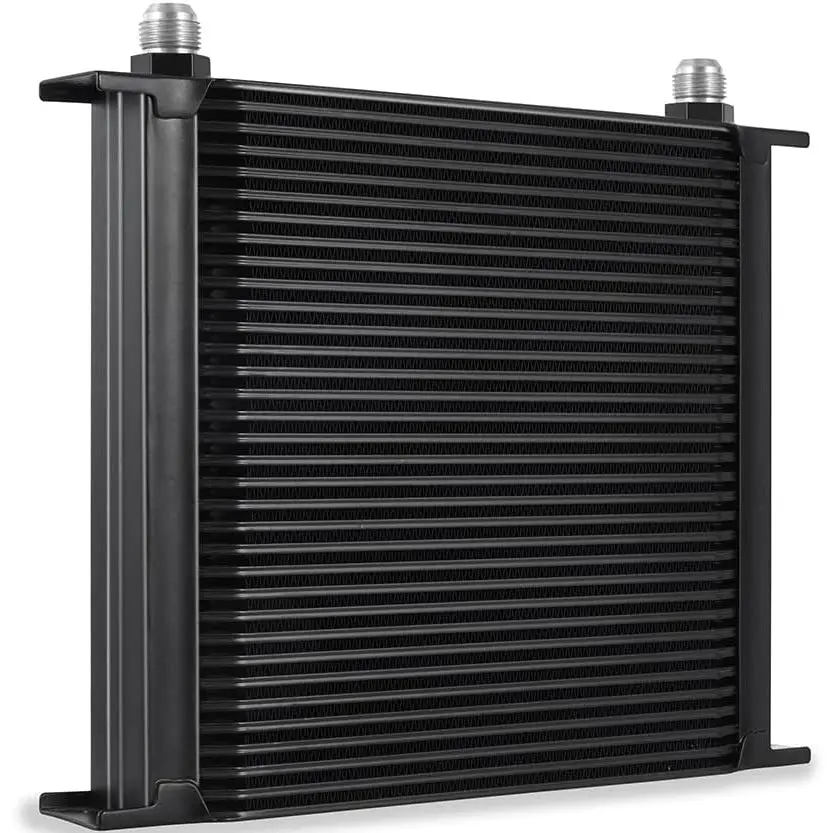

Fluid Cooler:
- 34 stacked plate aluminum heavy duty engine transmission cooler.
- Minimal pressure drop to be used for engine, transmission or fuel..
- Brazed aluminum construction with 4 integrated mounting brackets.
- 2″ deep turbulator-equipped plates and a matte powder coat finish.
- Dimensions: 2″ x 10.9″ x 13″ with AN fittings and 56k BTU per hour.

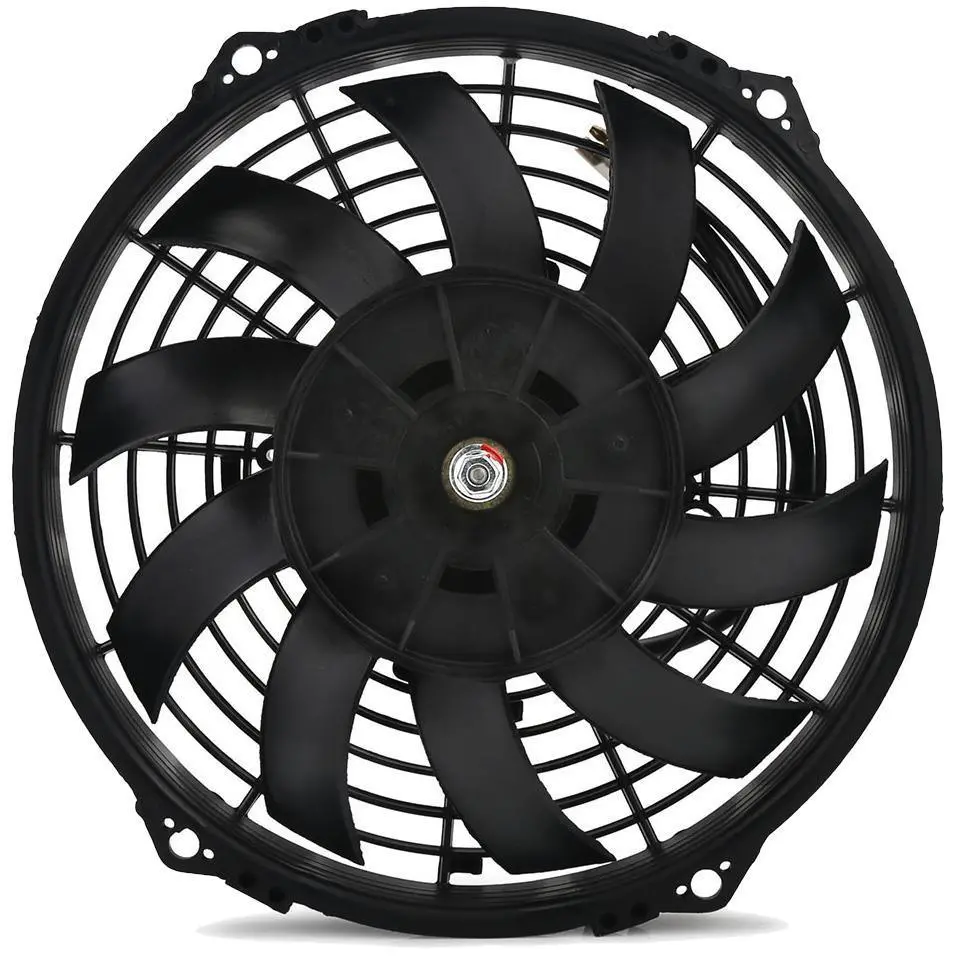

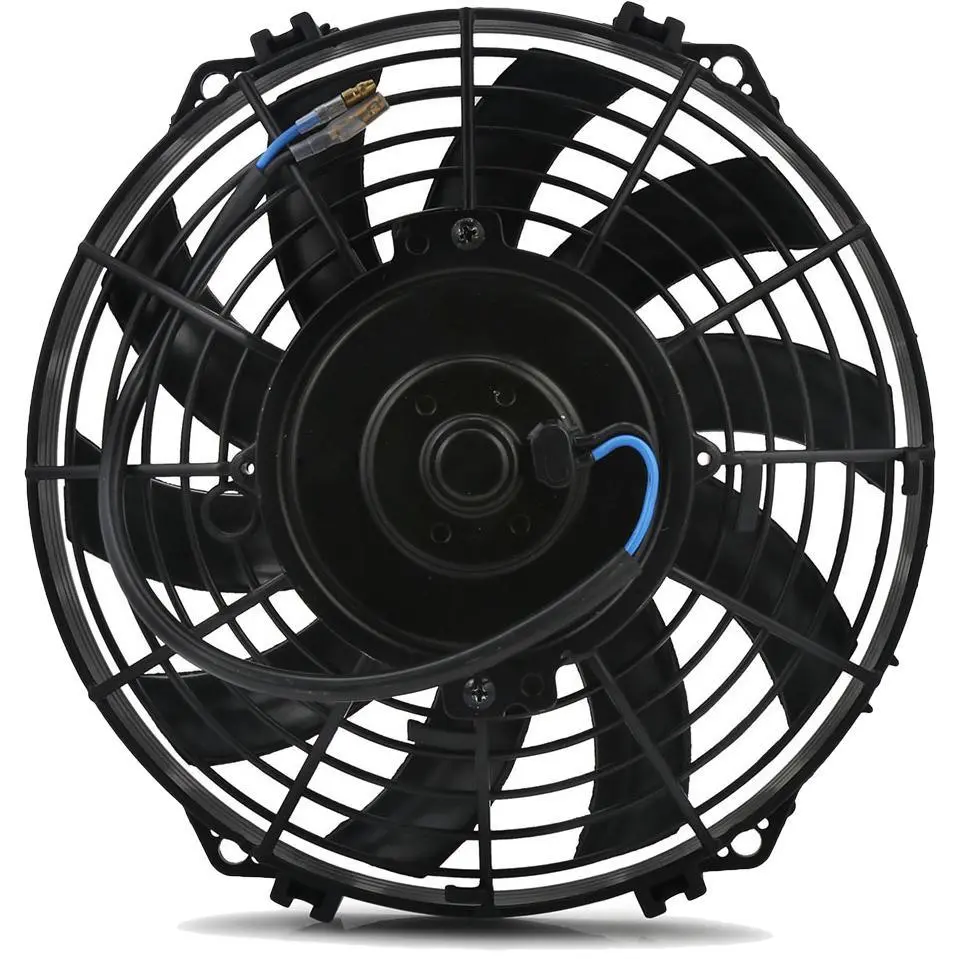

Electric Fan:
- Universal 12 volt high performance 9 inch slim electric cooling fan.
- Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
- Configured as an air puller by default or reversible to an air pusher.

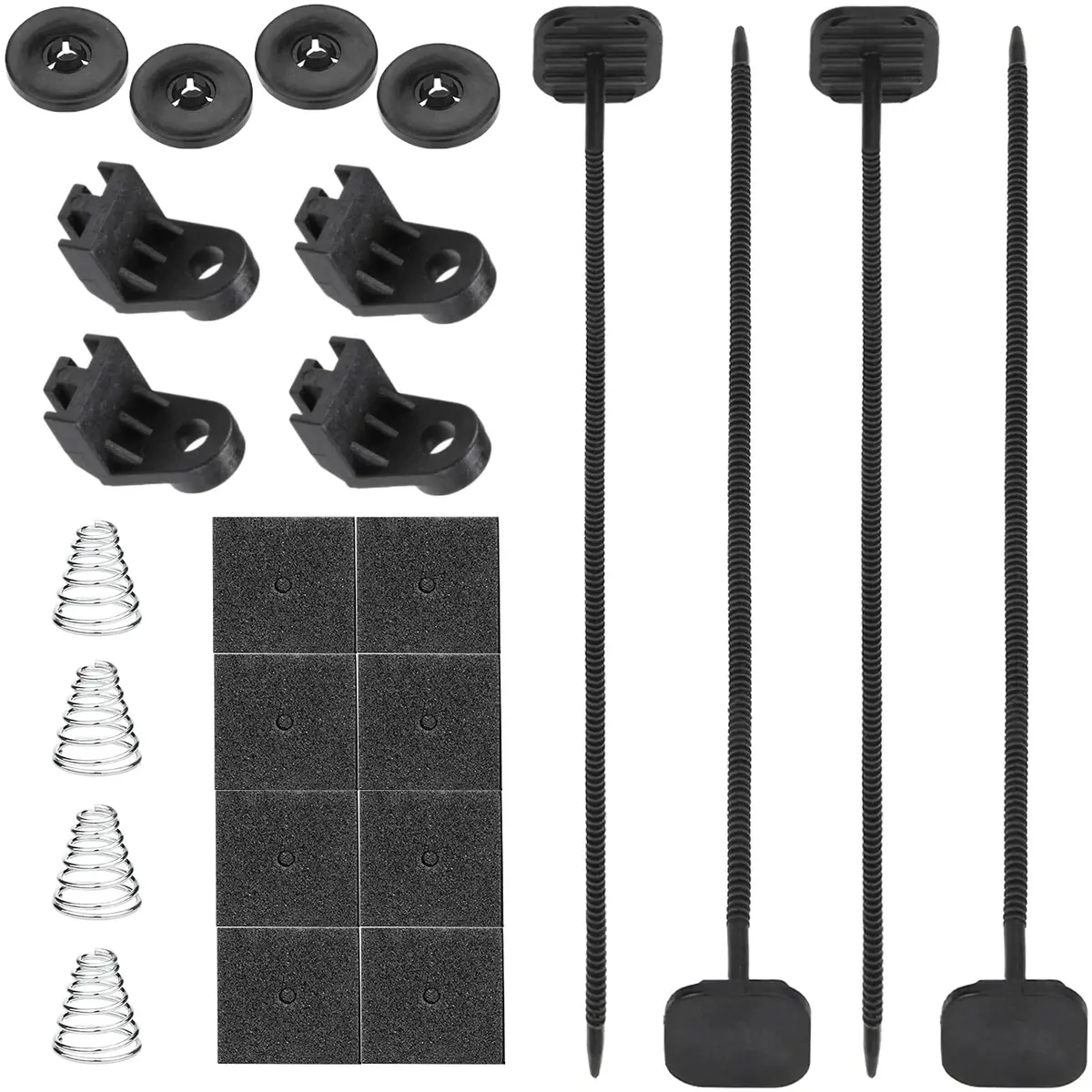

- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 9.75″ x 9.75″ x 2.4″ thickness at center and 1.1″ at edge.

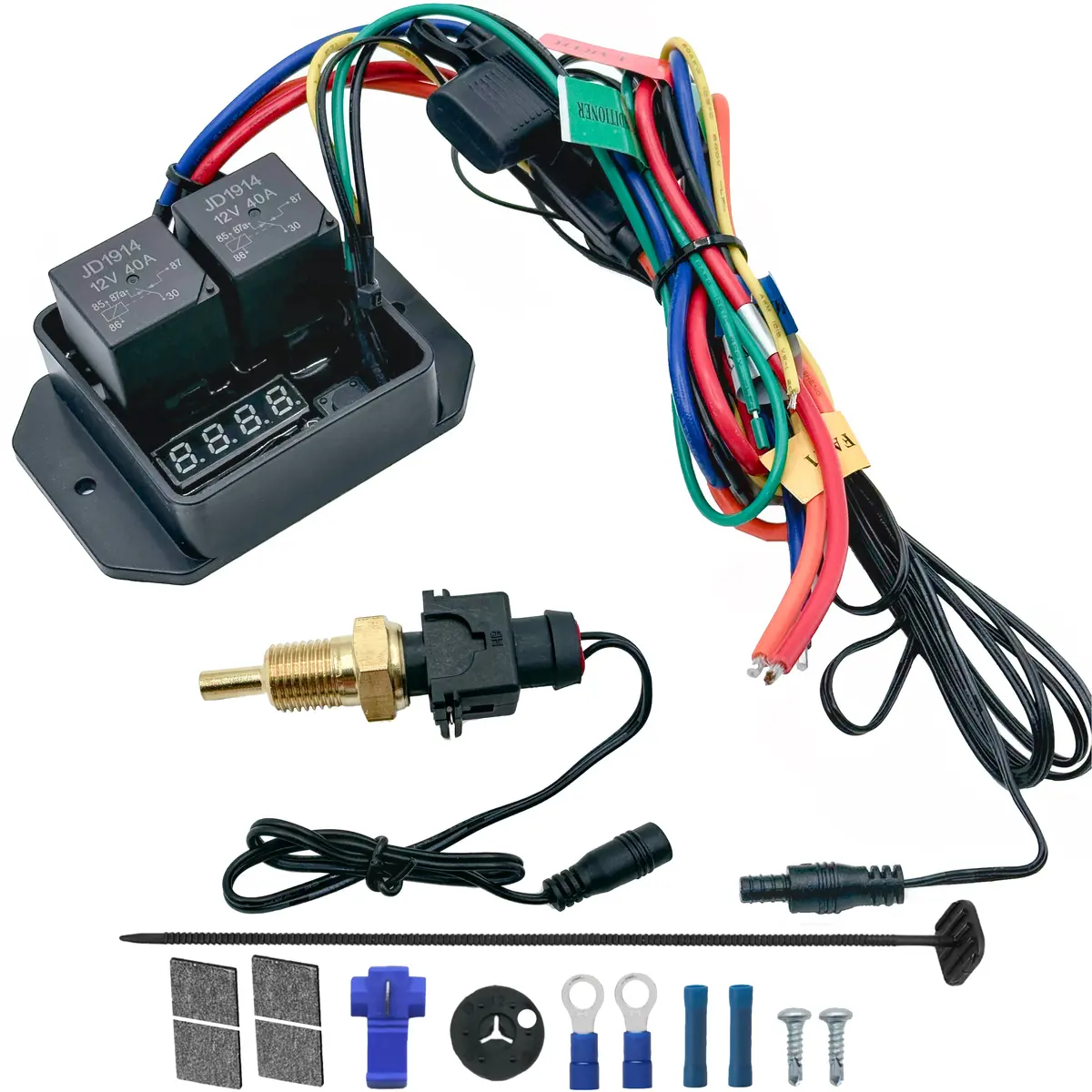

Wiring Kit:
- 104-230’F digital adjustable electric fan thermostat switch wire kit.

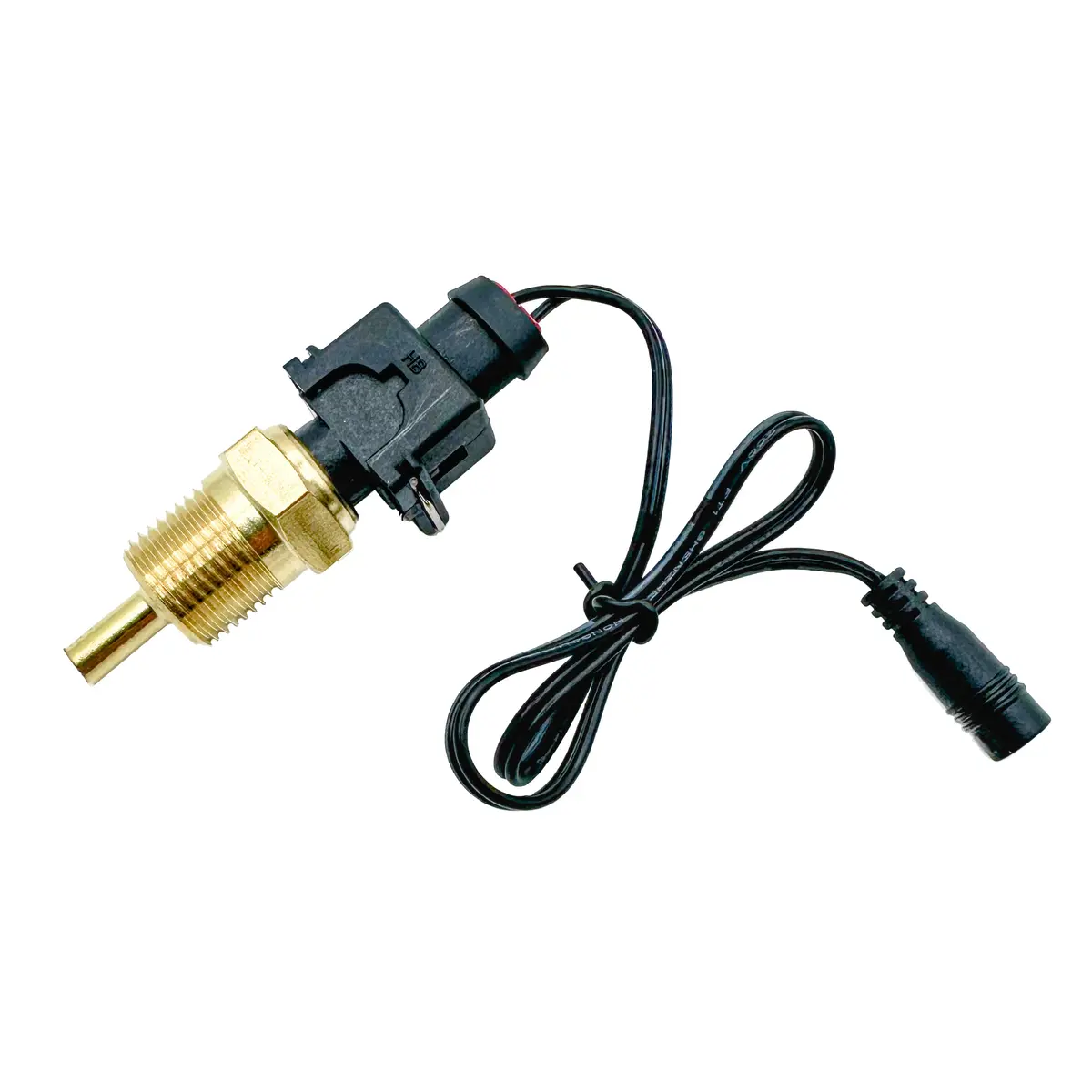

- Various NPT brass temperature sensor sizes thread into any port.
- 40 amp relay harness with 14AWG wire powers up to 2 electric fans.
- Maximum 30 amp continuous draw with 30 amp in-line fuse per fan.
- A/C override or manual toggle switch wire built directly into harness.

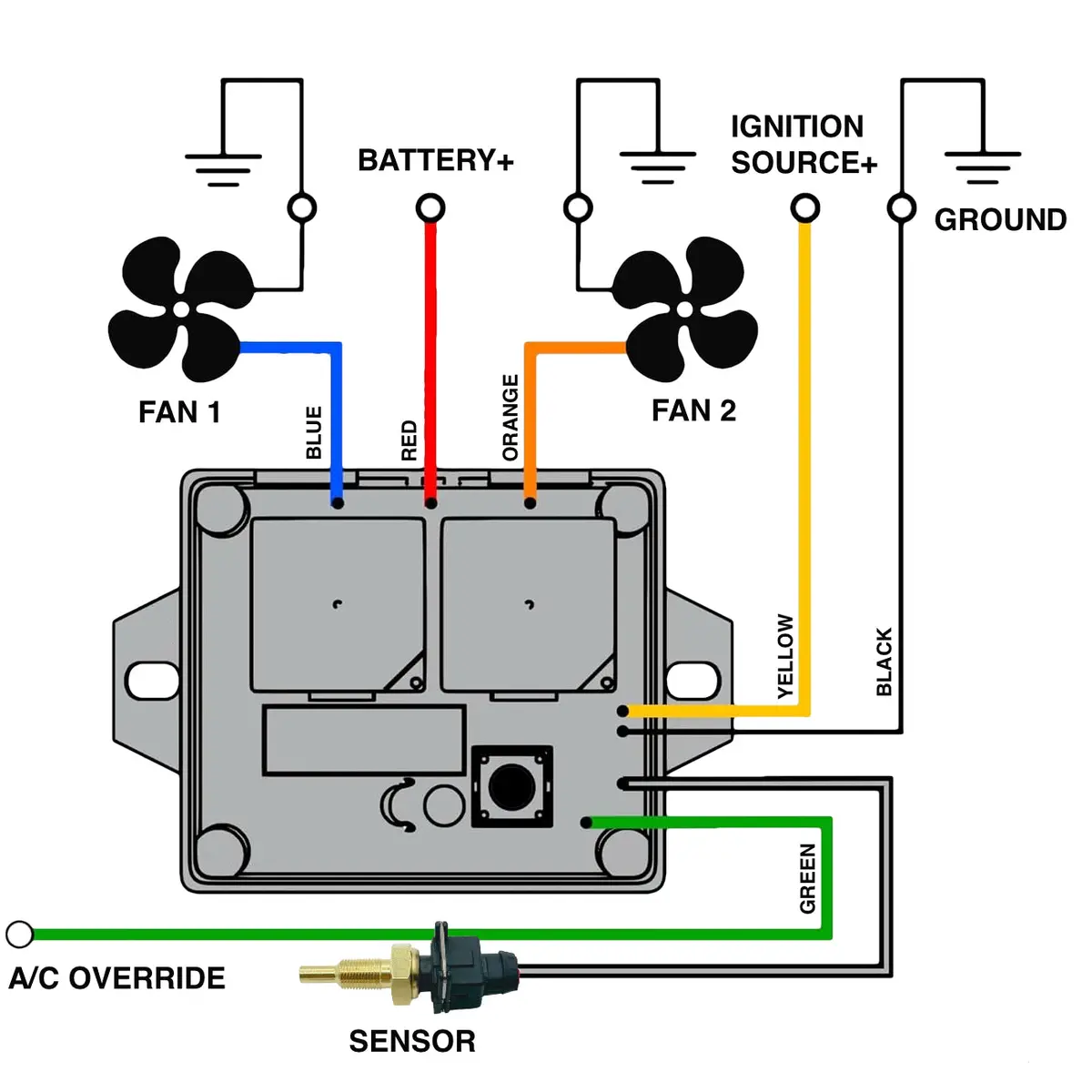

- Installation instructions, wiring diagram and components included.
