7–8 Inch 90W Electric Cooling Fan with In-Line Grounded Thermostat Kit

Description

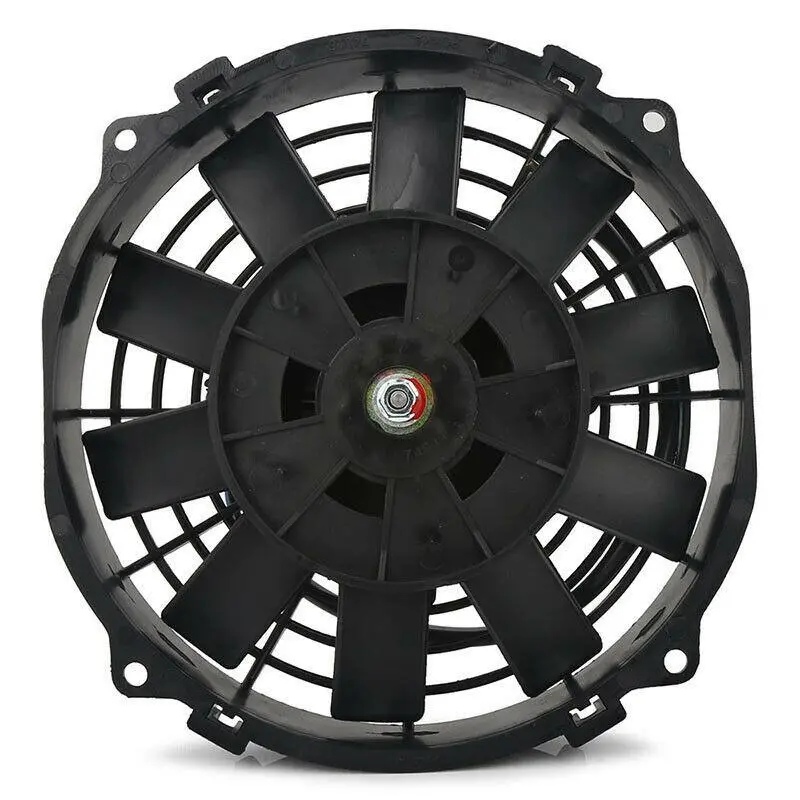

Electric Fan:

• Reversible 12 volt high performance 7-8 inch electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as air puller by default and reversible to an air pusher.
• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 8.5″ x 7.75″ x 2.4″ thickness at center and 1.4″ at edge.

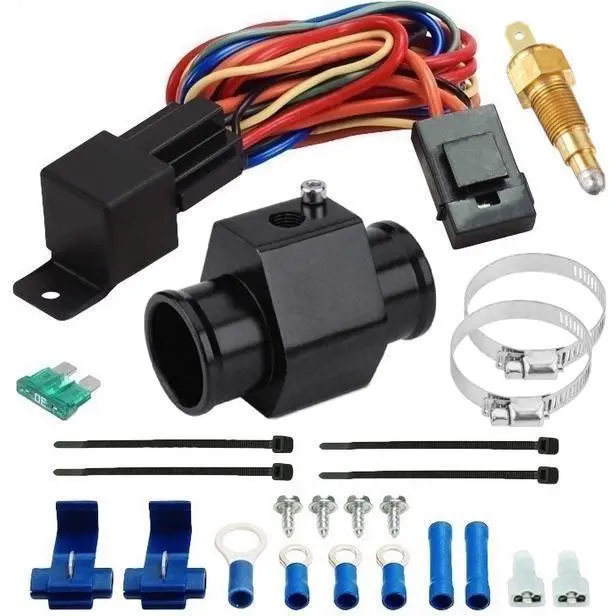

Wiring Kit:

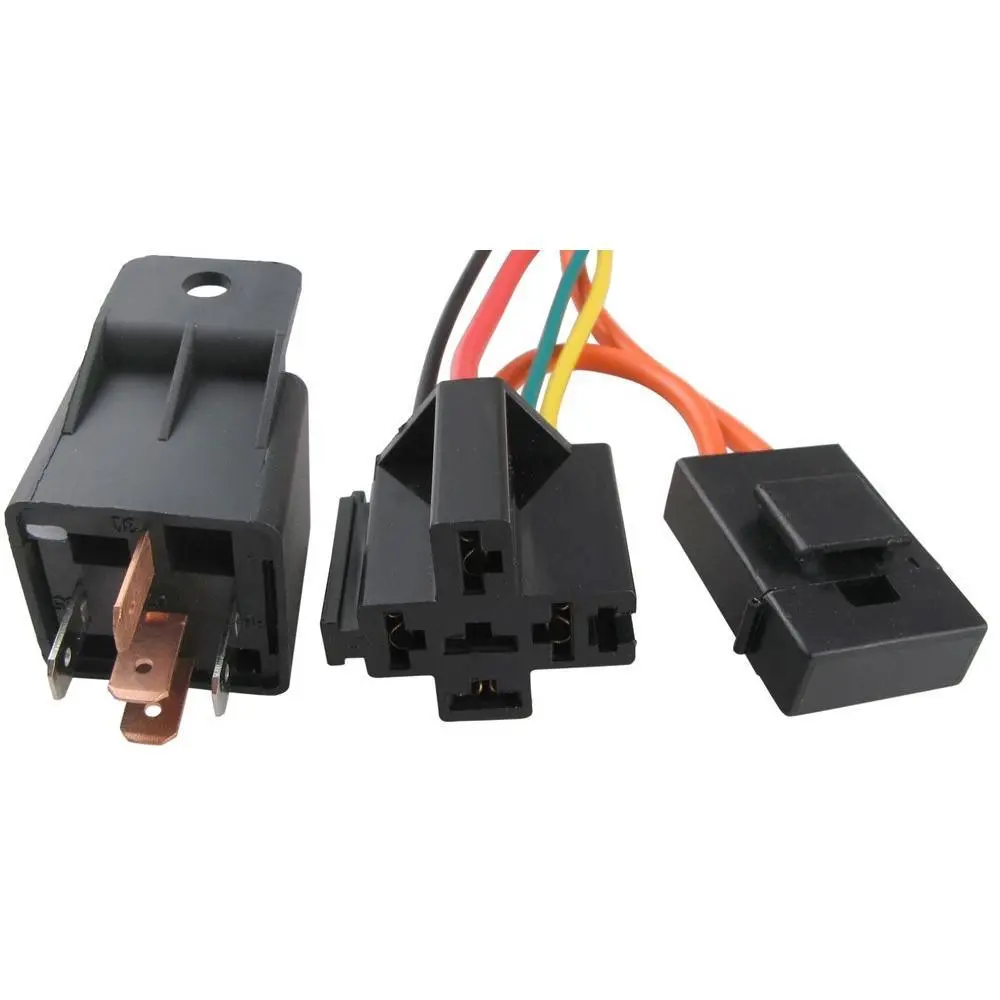

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Fitting:

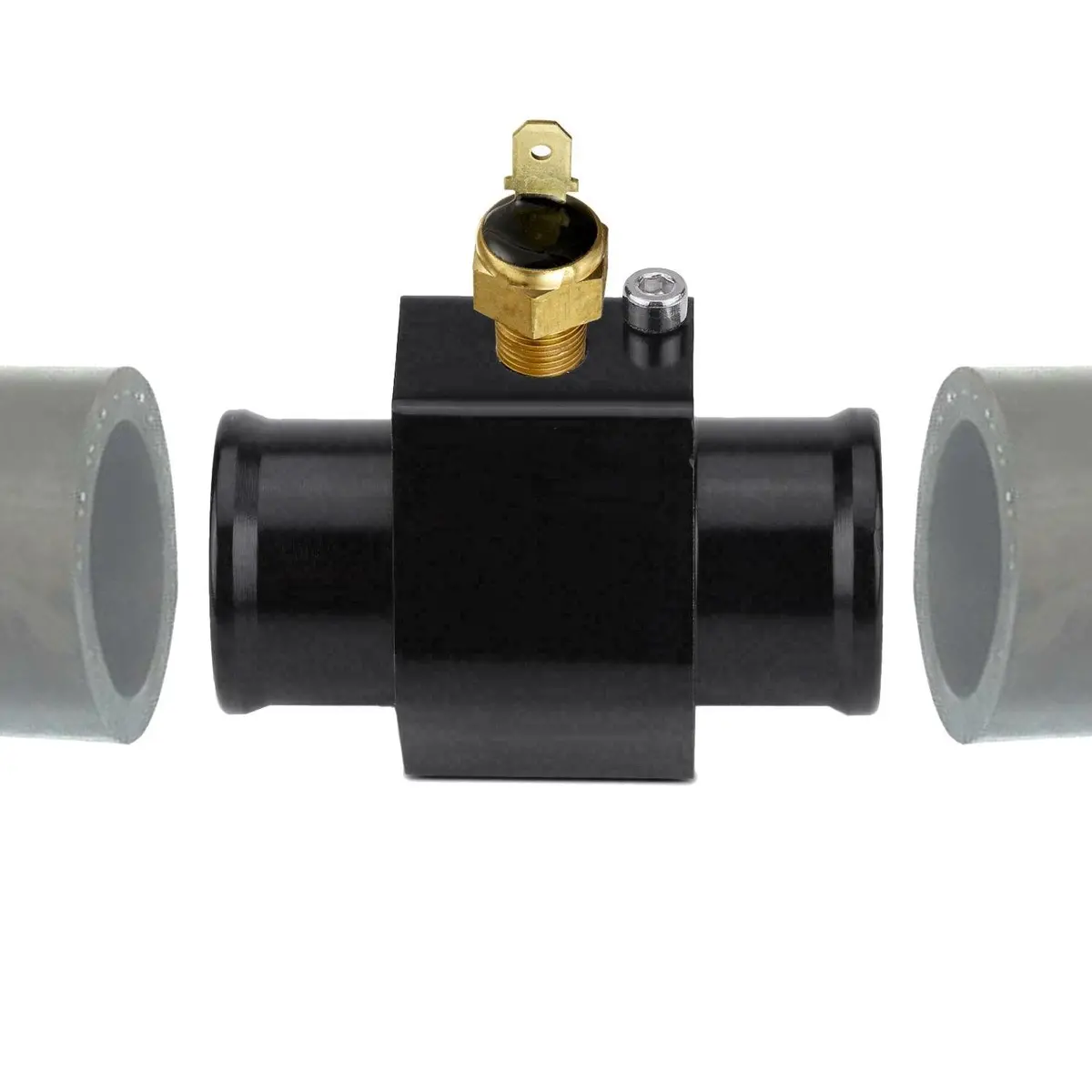

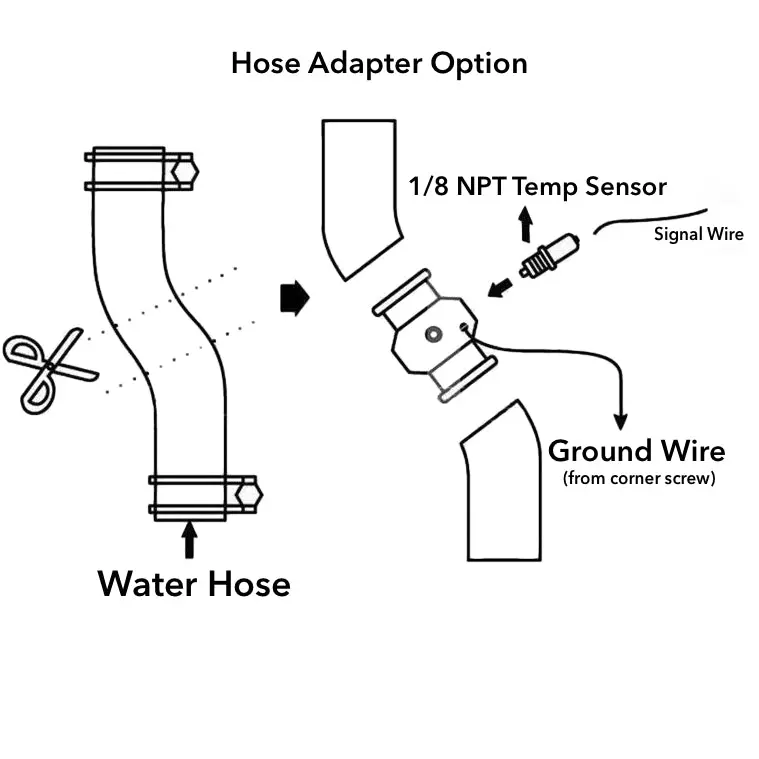

• Universal radiator hose electric fan thermostat temperature sensor.
• Anodized aluminum in-line fitting adapter in various diameter sizes.
• Preset to ground fan or 12v accessory at the selected temperature.
• Single pin 1/8″ inch NPT brass thread-in probe grounding switch.
• Measures temp of any liquid including oil, water and coolant fluid.
