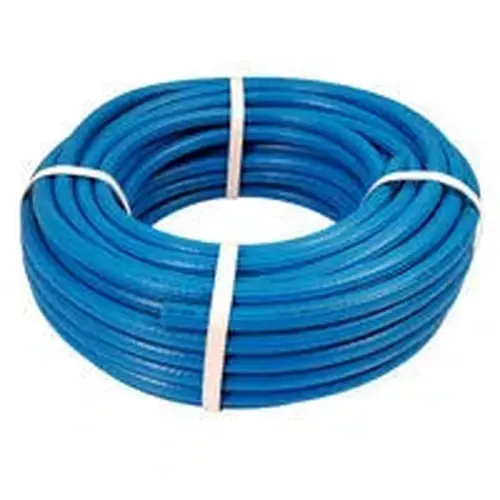

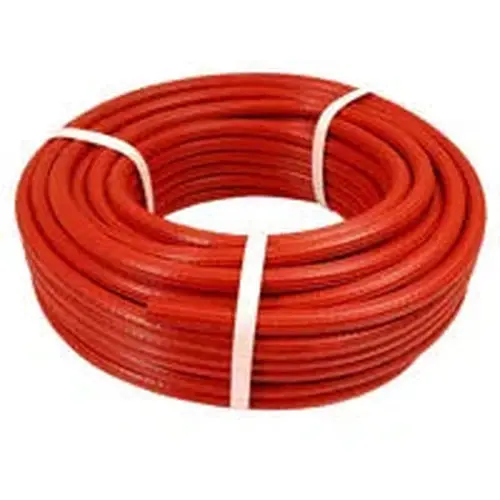

Acetylene and Oxygen Dual-Gas Hose per Meter

Description

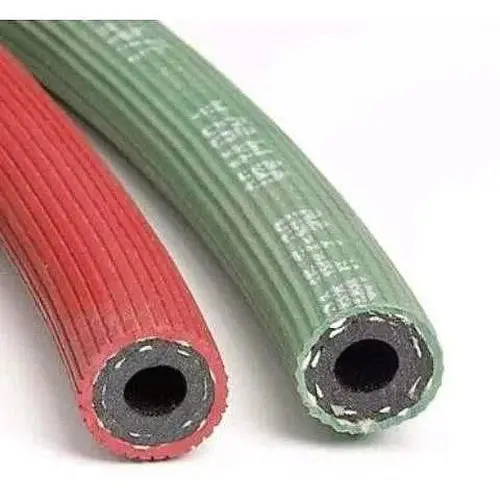

Reinforced Oxygen & Acetylene Hose

• Liner Material: X4500U5 PR TQ3 V/PVC
• Cover Material: I3050O7 V/PVC, X4000U1
• Specification Requirement Hose size in millimetres
• 6,3mm 8mm 10mm
• Inner Liner max. inside diameter. 6,4 8,2 10,2
• Inner Liner min. inside diameter. 6,2 7.9 9,8
• Inner Liner max. wall thickness. 1,5 1,55 1,50
• Inner Liner min. wall thickness. 1,3 1,45 1,50
• Number of yarn plies – 1100 Den. 1 1 2
• Number of bobbins. 12 16 16
• Max. Outer Cover thickness. 1,2 1,35 1,45
• Min. Outer Cover thickness. 1,0 1,25 1,35
• Weight per meter in Gms. 105 134 155
• Weight per 30m roll in Kgs. 3.15 4,02 4,65
• Min. Burst pressure in Kpa. 50 50 50
