Allis-Chalmers 5020 – 5030 Compact Diesel Tractor Operator’s Manual
88 Pages
This Manual is available in: Digital Download
CONTENTS
TO OUR CUSTOMER
USER’S RESPONSIBILITY – WARRANTY – ALLIS CHALMERS
METRIC INFORMATION

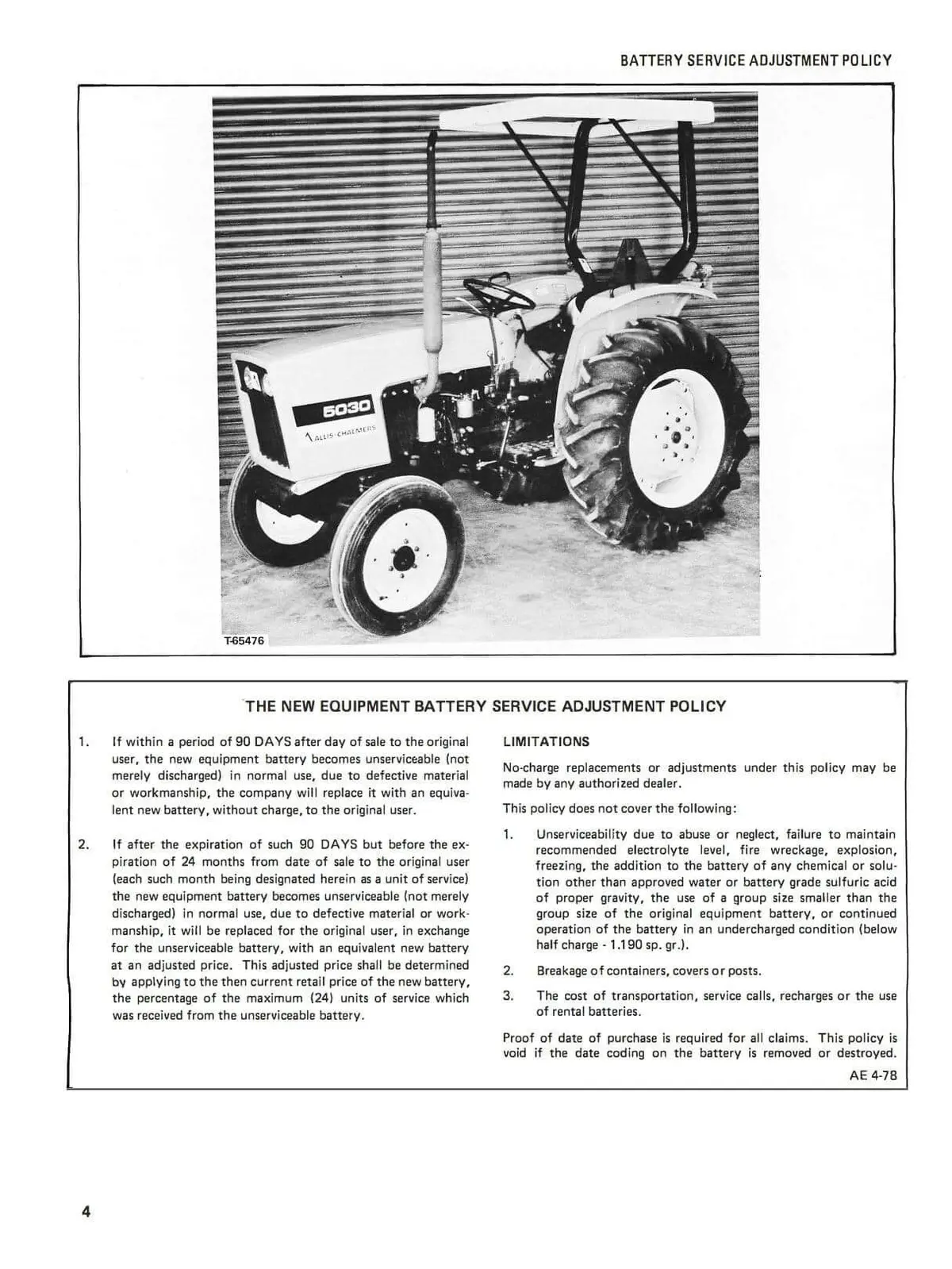

BATTERY SERVICE ADJUSTMENT POLICY
CONTENTS
SAFETY
SPECIFICATIONS
LUBRICATION AND SERVICE
- Time Interval Chart for Service Items
- Lubrication and Service Guide
- Fuels
- Front Axle
- 3-Point Hitch
- Clutch – Brake Shaft Assembly
- Engine Cooling System
- Checking Engine Oil Level
- Engine Oil Filter
- Engine Fuel Sediment Bowl and Filter
- Bleed Air From Fuel System
- Transmission and Hydraulic System Oil
- Battery
- Fuel Tank
- Air Cleaner, Cup and Element
- Alternator
- Injection Pump Lubrication
- Engine Service Tips
- Storage of Tractor
- Tires
- Tire Pressure and Load Table
- Wheel Bolt Torque
- Weighing Tractor
- How to Order Parts
OPERATING CONTROLS AND INSTRUMENTS
OPERATION
- Starting and Stopping Engine
- Fast Warm-up Period
- Break-In Period
- Engine Clutch Pedal
- Gear Shifting – Transmission
- Coasting
- Brake Pedals and Lock Lever
- PTO Shaft
- Safety Tips and PTO Operating Instruments
- Drawbar – 3 Point Hitch
- Links
- Hitching to Implement
ADJUSTMENTS
- Position Control Lever Friction
- Lowering Speed
- Fan Belt
- Engine Clutch Pedal
- PTO Shift Lever
- PTO Safety Start Switch
- Brake Pedal
- Front Wheel & Rear Wheel Tread (5020)
- Front Wheel & Rear Wheel Tread (5030)
- Operator’s Seat
WIRING DIAGRAM
- Liquid Ballast
MISCELLANEOUS, OPTIONAL, AND EXTRA EQUIPMENT
- ROPS Frame (5020)
- ROPS Frame (5020) FWD
- ROPS Frame (5030)
- Single Front Weights
- Stacked Front Weights
- Stacked Rear Weights
Manual Code: 2097271
- <!–
