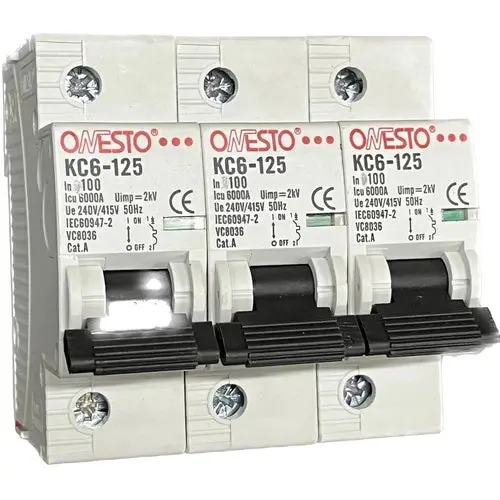

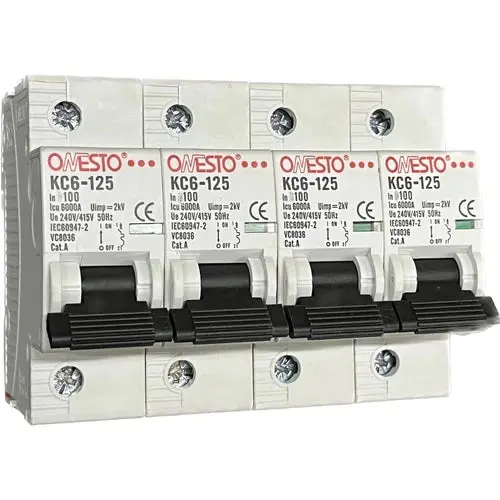

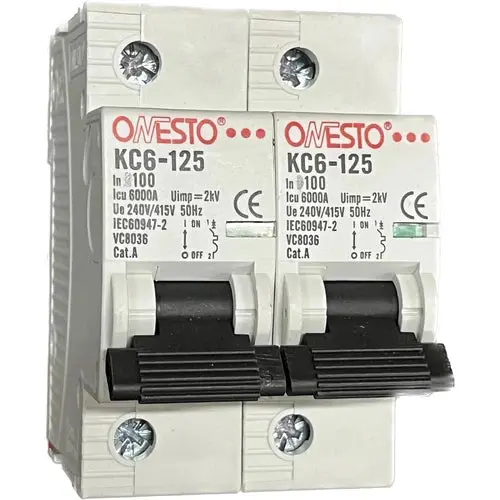

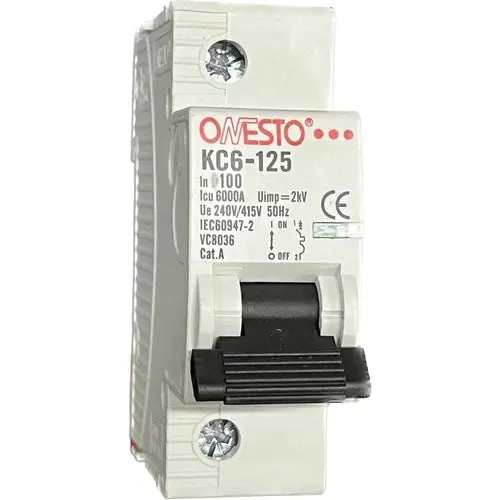

DIN-Mount Miniature Circuit Breaker (MCB) by Onesto

Description

3KA

• MCB
• Standard:
• IEC60898-1
• Tripping Curve:
• B,C,D
• Number of Poles:
• 1 2 3 4
• Rated Current:
• 1/2/3/4/6/10/16/20/25/32/40/50/63 A
• Rated Operation Voltage Ue :
• 240/415V AC for 1P; 415V AC for 2,3,4P
• Rated Insulation Voltage Ui:
• 415V
• Rated Frequency Hz：
• 50/60Hz
• Rated Impulse withstand Voltage Uimp:
• 4kV
• Rated ultimate short-circuit breaking capacity:
• Icu (kA):3.0kA
• Rated service short-circuit breaking capacity:
• Ics (kA):3.0kA
• Type of release:
• Thermo-magnetic
• Protection Index IP：
• IP20
• Ambient Temperature:
• at 30°C

6KA

• MCB
• Standard:
• IEC60898-1
• Tripping Curve:
• B,C,D
• Number of Poles:
• 1 2 3 4
• Rated Current:
• 1/2/3/4/6/10/16/20/25/32/40/50/63 A
• Rated Operation Voltage Ue :
• 240/415V AC for 1P; 415V AC for 2,3,4P
• Rated Insulation Voltage Ui:
• 415V
• Rated Frequency Hz：
• 50/60Hz
• Rated Impulse withstand Voltage Uimp:
• 4kV
• Rated ultimate short-circuit breaking capacity:
• Icu (kA):6.0kA
• Rated service short-circuit breaking capacity:
• Ics (kA):6.0kA
• Type of release:
• Thermo-magnetic
• Protection Index IP：
• IP20
• Ambient Temperature:
• 30°C
