Dual 14–15 Inch 180W Electric Radiator Fans with Hose Adapter and Two-Stage Temp Switch

$0.00

Quantity
SKU: N/A Category: Brand:

Description

Electric Fan:

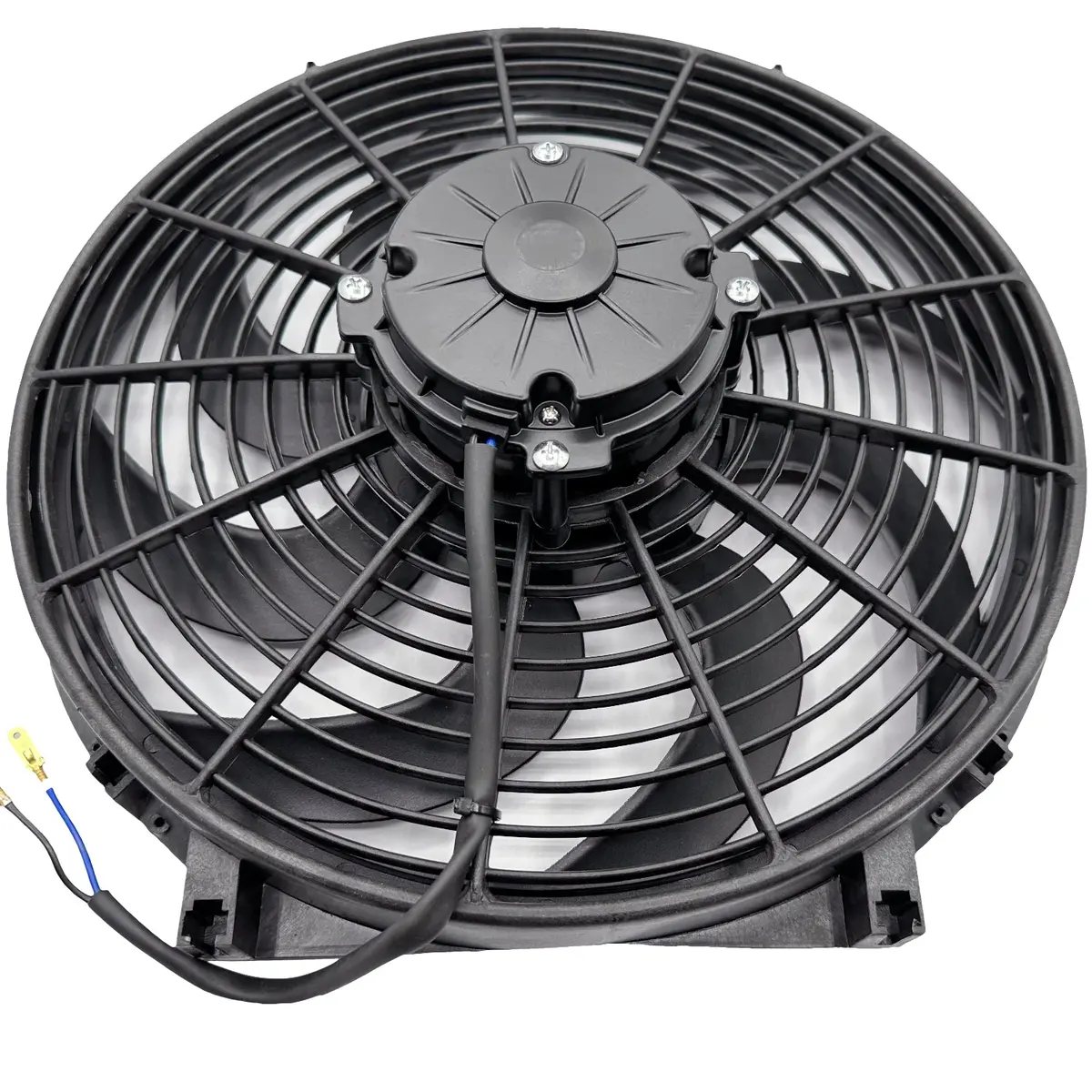

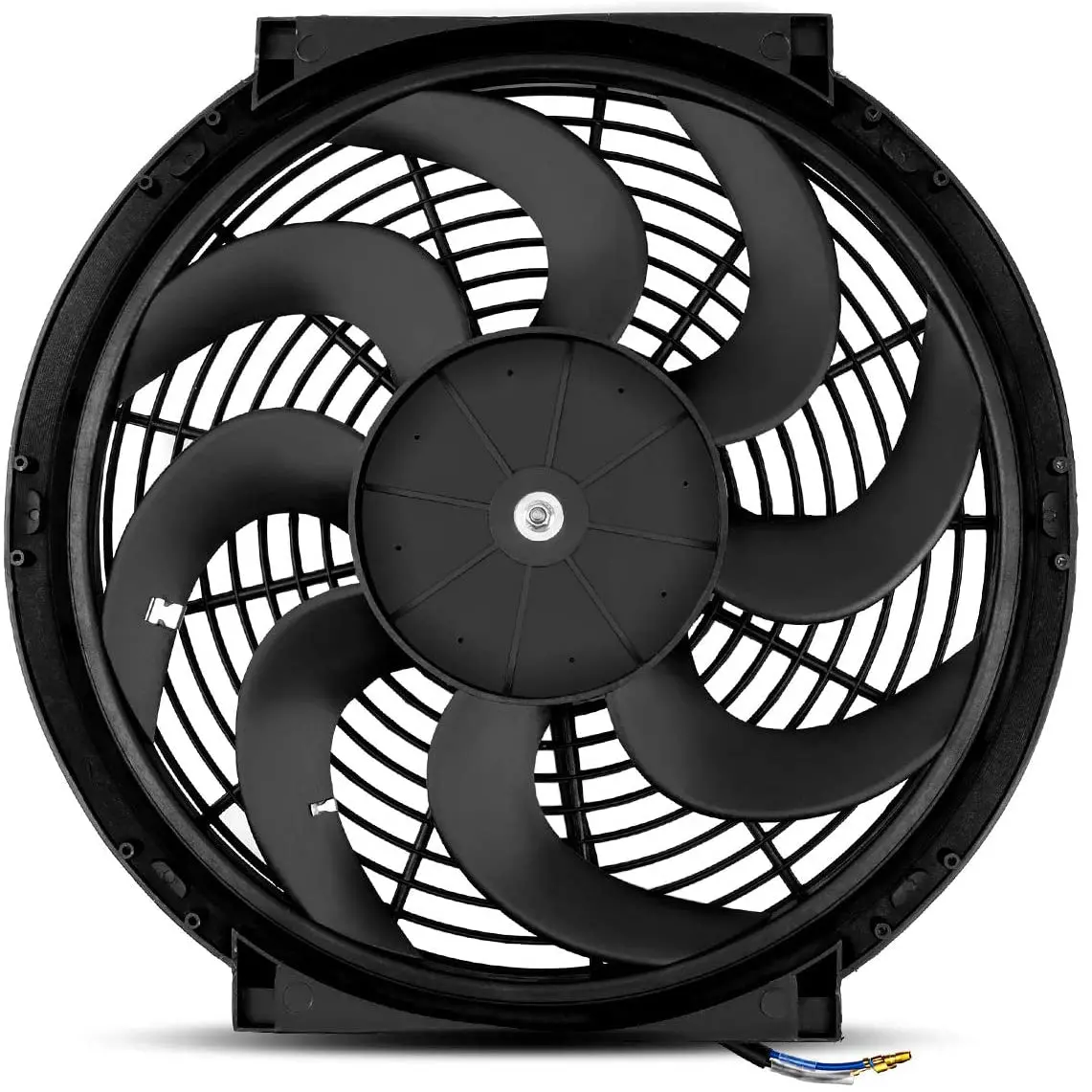

  • Dual 12 volt high performance 14-15 inch electric cooling fans.
  • Huge 180w motors draw 14 amps, producing 2964 CFM each.
  • Configured as air pullers by default or reversible to air pushers.
  • Includes 4 mounting feet and complete installation tie strap kit.
  • Measures 15″ x 14″ x 4″ thickness at center and 1.8″ at edge.

Wiring Kit:

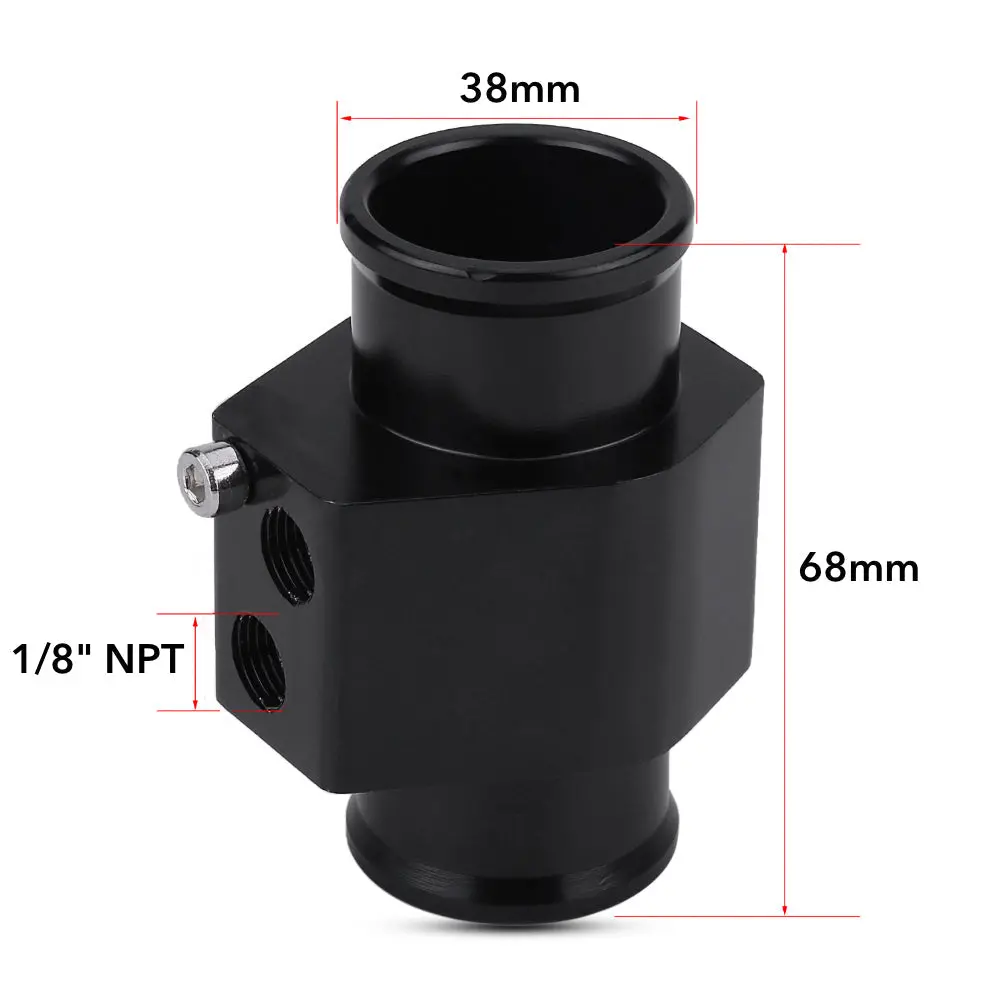

  • 38mm/1.5 Inch 2 stage dual fan temp switch wiring harness.

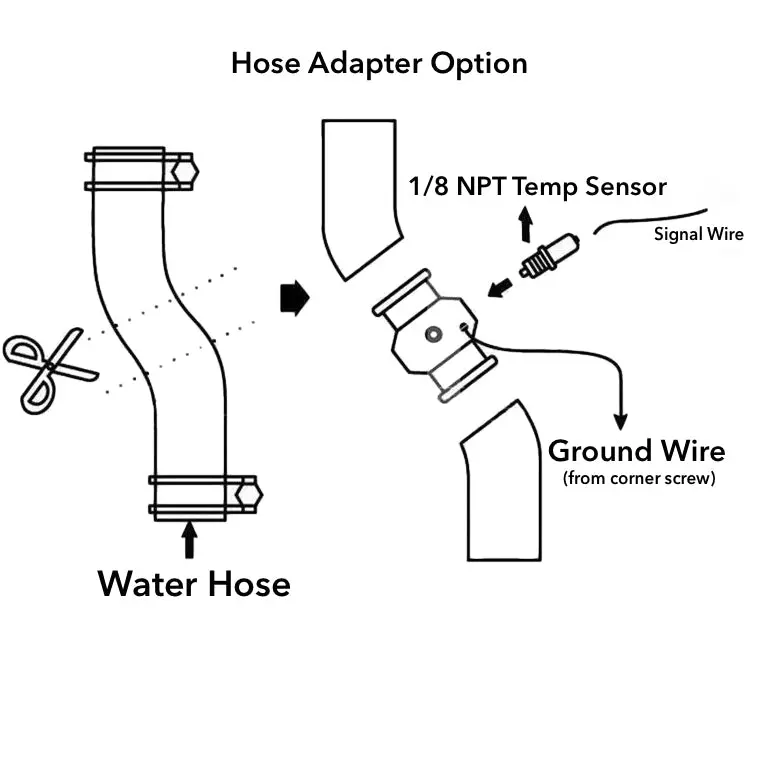

  • Hose adapter sized based on the outside diameter of neck.

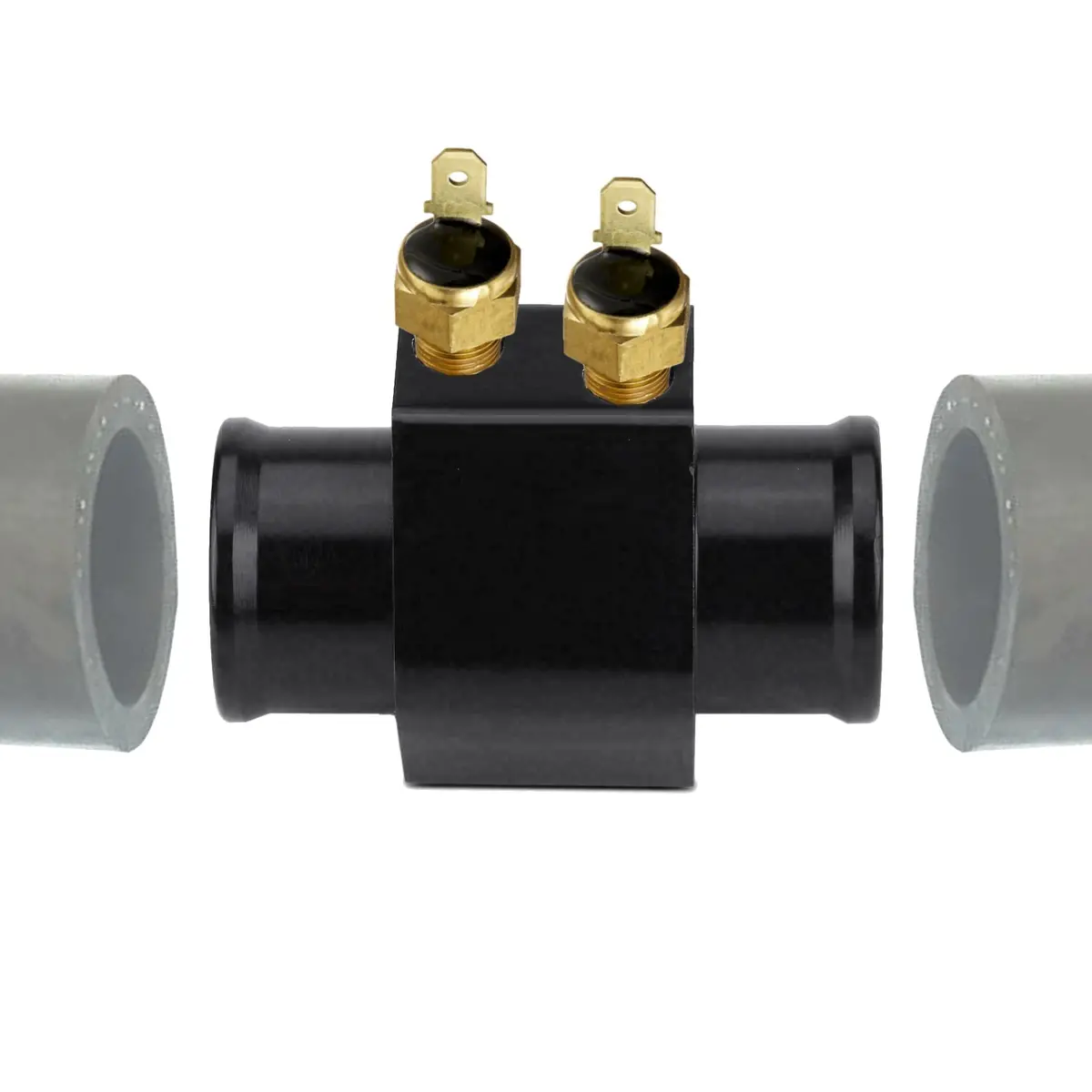

  • Radiator aluminum hose adapter 1/8 inch NPT sensor ports.
  • Activates electric cooling fans by grounding at temperature.

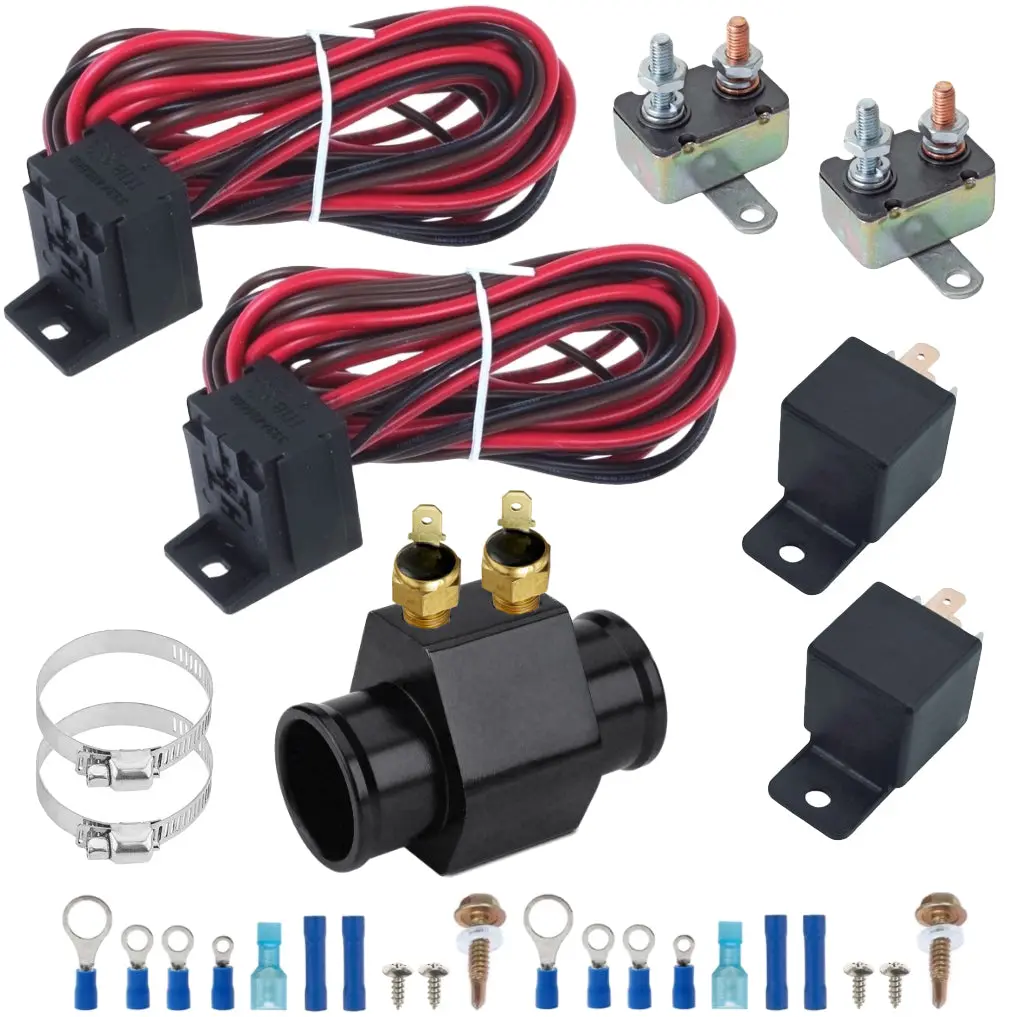

  • 40 amp relays, circuit breakers and 12 feet of 14AWG wiring.
  • Installation wire diagram and pictured components included.

Explore more from our collection.

Additional information

Stage 1 Temperature

140'F On – 125'F Off, 160'F On – 145'F Off, 170'F On – 155'F Off, 180'F On – 165'F Off, 200'F On – 185'F Off, 210'F On – 195'F Off
Stage 2 Temperature

140'F On – 125'F Off, 150'F On – 135'F Off, 160'F On – 145'F Off, 170'F On – 155'F Off, 190'F On – 175'F Off, 200'F On – 185'F Off
