Description

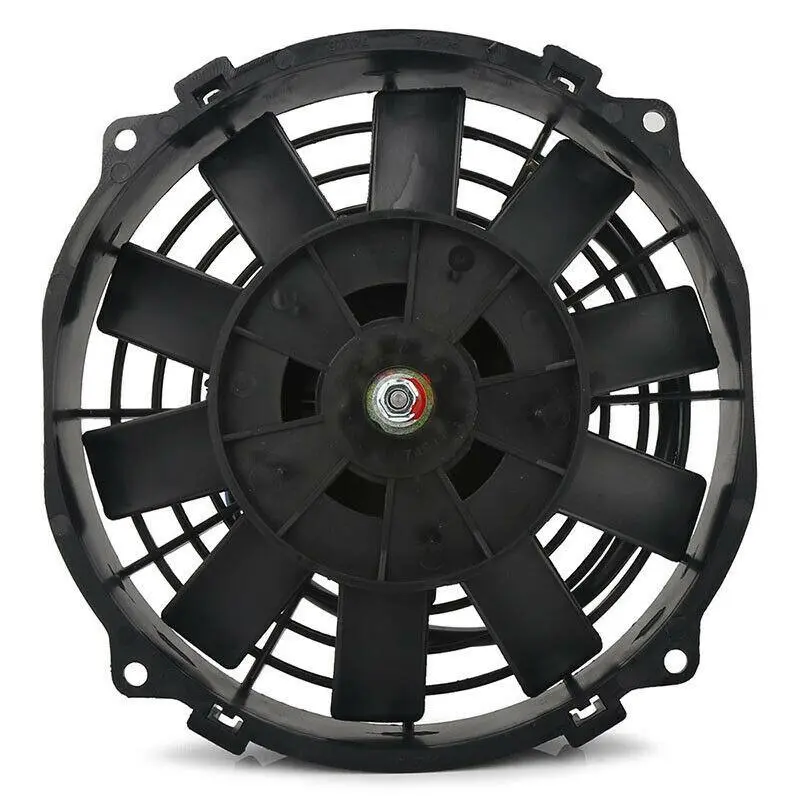

Electric Fan:
- Universal 12 volt high performance 6 inch small electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps producing over 513 CFM.
- Configured as an air puller to be on the inside and pull air through.

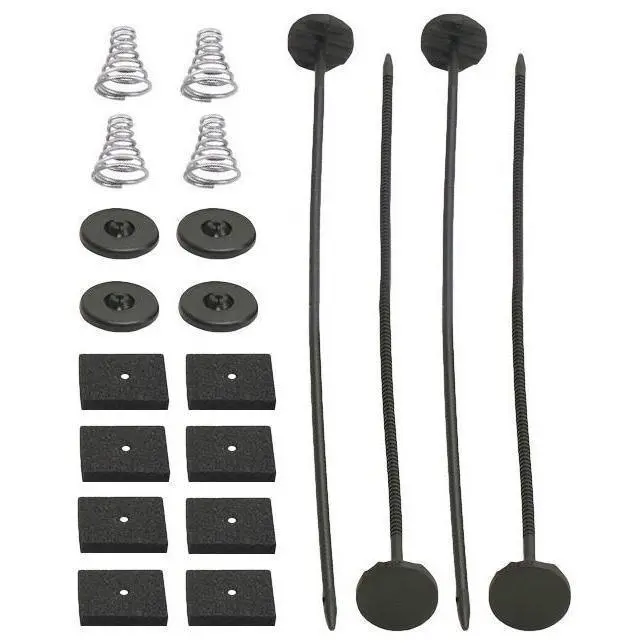

- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 7.2″ x 7″ x 2.4″ thickness at center and slim 1.4″ at edge.
Wiring Kit:

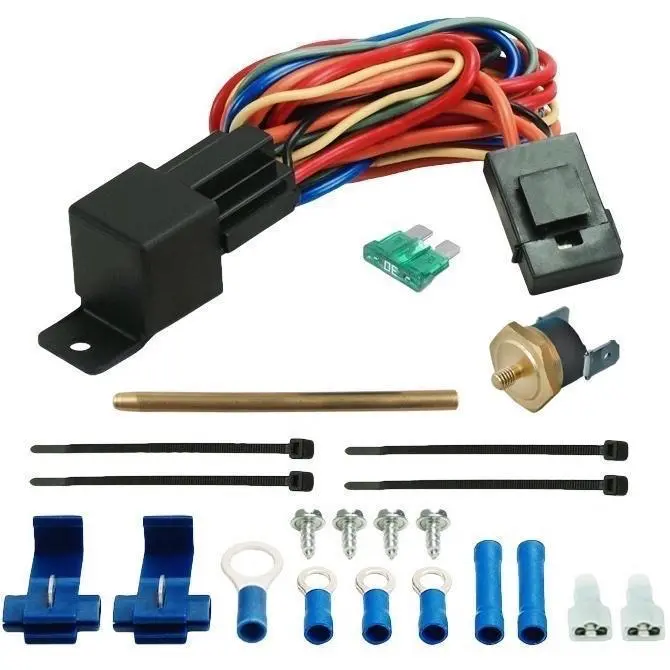

- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Thermostat:
- Universal dual pin electric cooling fan powering thermostat switch.
- Solid brass push-in fin probe temperature sensor can be cut to size.
- Preset to power fan or 12v accessory at the selected temperature.

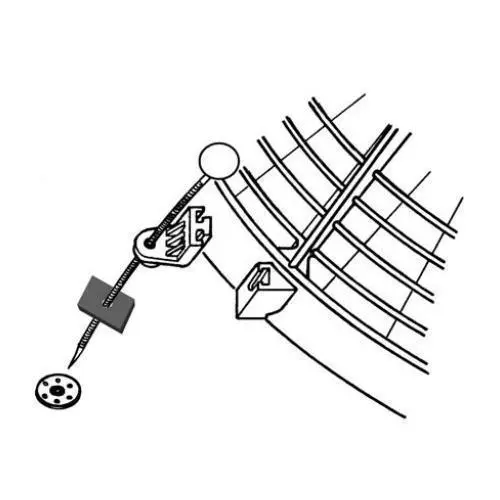

- Probe pins the switch to radiator, engine or transmission cooler fins.
- Measures temp of auto liquids including oil, water and coolant fluid.
