Description
Ford CL-30, CL-40 Compact Loader Repair Manual
32 Pages
This Manual is available in: Digital Download
CONTENTS
Description and Operation
Trouble Shooting
Hydraulic System Operation
Pressure Tests and Adjustments
- Drive System Pressure Test
- Hydraulic Pump Performance Test
- Installing the Hydraulic Tester
- Pump Performance Test Procedure
- Cylinder Packing Leakage Test
Valve Removal
- Disassembly
- Inspection
- Assembly and Seal Replacement
- Installation
Cylinders
- Removal
- Disassembly
- Inspection and Repair
- Assembly
- Installation
Loader Pump
- Removal
- Disassembly
- Inspection and Repair
- Assembly
- Installation
Drive Pump
- Disassembly
- Inspection and Repair
- Assembly
Lubrication and Maintenance
- Lubrication Chart
- Periodic Service Inspections
- Servicing the Battery
- Drive Chain Adjustment
- Drive Control Lever Adjustment
- Servicing the Air Cleaner
- Fuel Tanks

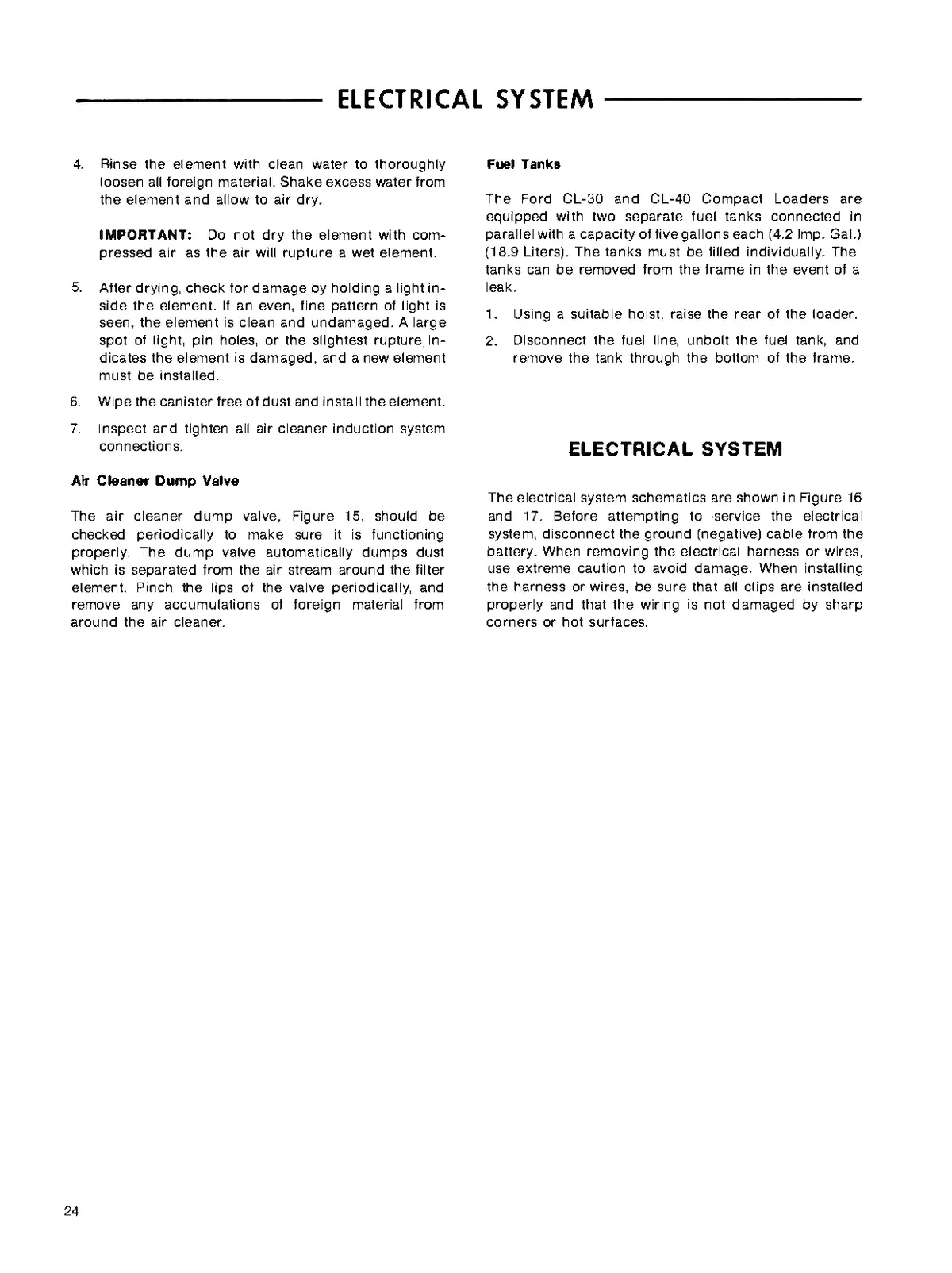

Electrical System
Specifications
Manual Code:SE 3455 8744
