Sale!
Fox Sls Light Steel Spring 1
Fox Sls Light Steel Spring 2

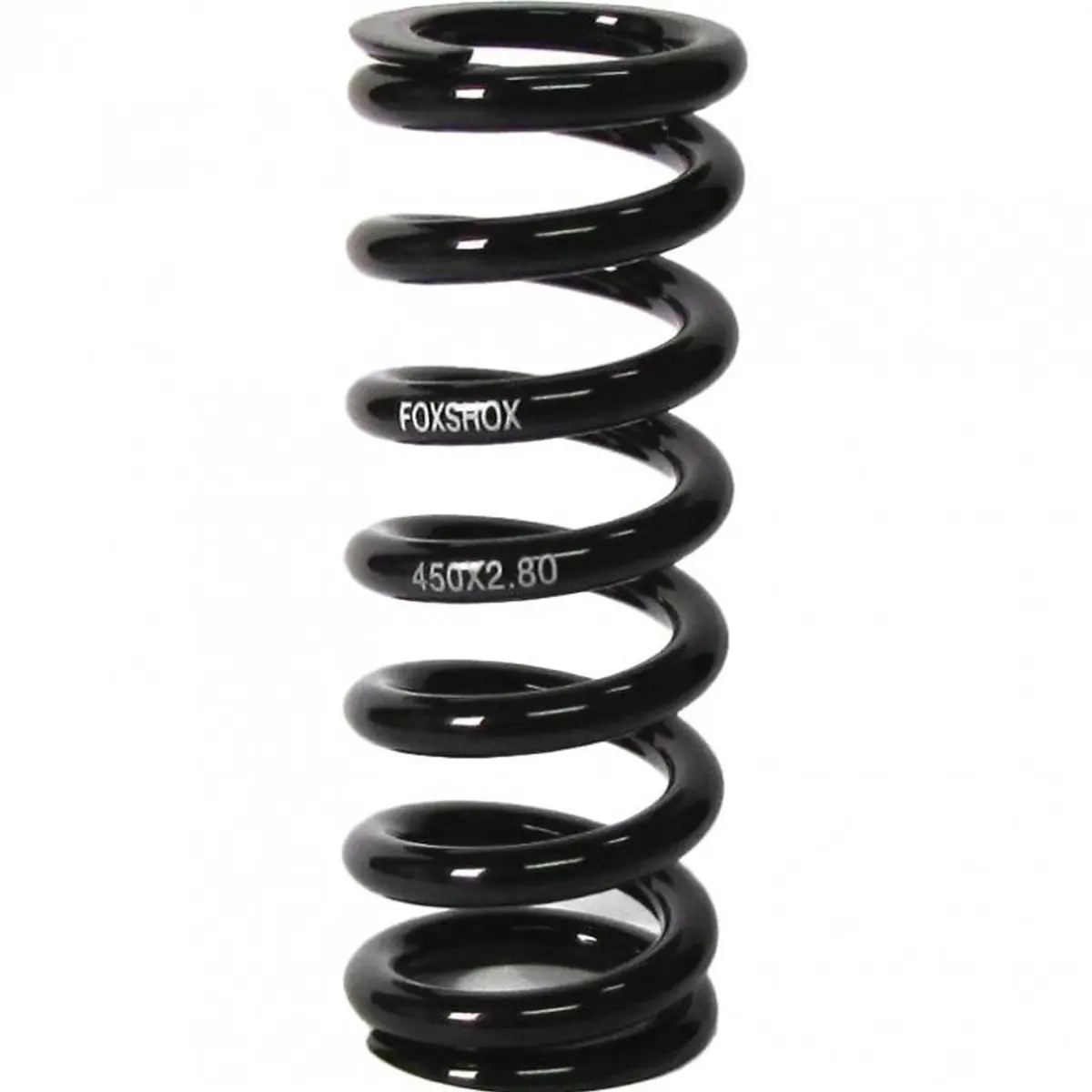

FOX SLS Light Steel Spring – Lightweight Coil Option

Original price was: $130.23.Current price is: $65.12.

Quantity
SKU: N/A Category: Brand:

Description

Click HERE for the spring compatibility chart

SLS (Super Light Steel) springs are now available from FOX for DHX and VAN rear shocks. These SLS springs are a lighter weight steel spring option offered in addition to our standard steel springs. The new SLS springs from FOX are lighter than titanium springs at more affordable prices. A proprietary surface treatment and stress relief process removes residual stresses from the spring, allowing them to withstand higher stresses. Each spring is optimized by using a smaller wire diameter and fewer coils, creating a lighter spring.

All SLS springs are orange and are marked with their spring rate in lbs/in (in 25 lb increments) and the maximum travel of the shock that they are designed to be paired with.

Old / New code

2019 SLS Springs
  Part Description Where Used
2.4in/61mm Travel Springs
Order this PN   Description
 803-04-177 033-22-000 Spring: 2019 [1.385in ID X 300lb/in X 2.4in/61mm Travel X 4.28in TLG] SLS

7.875inx2.25in, 185mm(T)x50mm, 185mm(T)x52.5mm, 185mm(T)x55mm, 210mmx50mm, 210mmx52.5mm, 210mmx55mm, 230mmx57.5mm
 803-04-178 033-22-001 Spring: 2019 [1.385in ID X 325lb/in X 2.4in/61mm Travel X 4.41in TLG] SLS
 803-04-179 033-22-002 Spring: 2019 [1.385in ID X 350lb/in X 2.4in/61mm Travel X 4.38in TLG] SLS
 803-04-186 033-22-003 Spring: 2019 [1.385in ID X 375lb/in X 2.4in/61mm Travel X 4.52in TLG] SLS
 803-04-187 033-22-004 Spring: 2019 [1.385in ID X 400lb/in X 2.4in/61mm Travel X 4.6in TLG] SLS
 803-04-188 033-22-005 Spring: 2019 [1.385in ID X 425lb/in X 2.4in/61mm Travel X 4.54in TLG] SLS
 803-04-189 033-22-006 Spring: 2019 [1.385in ID X 450lb/in X 2.4in/61mm Travel X 4.74in TLG] SLS
 803-04-190 033-22-007 Spring: 2019 [1.385in ID X 475lb/in X 2.4in/61mm Travel X 4.68in TLG] SLS
 803-04-191 033-22-008 Spring: 2019 [1.385in ID X 500lb/in X 2.4in/61mm Travel X 4.67in TLG] SLS
 803-04-192 033-22-009 Spring: 2019 [1.385in ID X 550lb/in X 2.4in/61mm Travel X 4.91in TLG] SLS
 803-04-193 033-22-010 Spring: 2019 [1.385in ID X 600lb/in X 2.4in/61mm Travel X 4.97in TLG] SLS
 803-04-184 033-22-011 Spring: 2019 [1.385in ID X 650lb/in X 2.4in/61mm Travel X 4.97in TLG] SLS
 803-04-185 033-22-012 Spring: 2019 [1.385in ID X 700lb/in X 2.4in/61mm Travel X 4.97in TLG] SLS
2.65in/67mm Travel Springs
 803-04-194 033-22-013 Spring: 2019 [1.385in ID X 250lb/in X 2.65in/67mm Travel X 4.69in TLG] SLS 8.50inx2.50in, 205mm(T)x60mm, 205mm(T)x62.5mm, 205mm(T)x65mm, 230mmx60mm, 230mmx62.5mm, 230mmx65mm
 803-04-195 033-22-014 Spring: 2019 [1.385in ID X 275lb/in X 2.65in/67mm Travel X 4.63in TLG] SLS
 803-04-196 033-22-015 Spring: 2019 [1.385in ID X 300lb/in X 2.65in/67mm Travel X 4.74in TLG] SLS
 803-04-197 033-22-016 Spring: 2019 [1.385in ID X 325lb/in X 2.65in/67mm Travel X 4.71in TLG] SLS
 803-04-198 033-22-017 Spring: 2019 [1.385in ID X 350lb/in X 2.65in/67mm Travel X 4.85in TLG] SLS
 803-04-199 033-22-018 Spring: 2019 [1.385in ID X 375lb/in X 2.65in/67mm Travel X 4.97in TLG] SLS
 803-04-200 033-22-019 Spring: 2019 [1.385in ID X 400lb/in X 2.65in/67mm Travel X 5.14in TLG] SLS
 803-04-201 033-22-020 Spring: 2019 [1.385in ID X 425lb/in X 2.65in/67mm Travel X 5.08in TLG] SLS
 803-04-202 033-22-021 Spring: 2019 [1.385in ID X 450lb/in X 2.65in/67mm Travel X 5.11in TLG] SLS
 803-04-203 033-22-022 Spring: 2019 [1.385in ID X 475lb/in X 2.65in/67mm Travel X 5.23in TLG] SLS
 803-04-204 033-22-023 Spring: 2019 [1.385in ID X 500lb/in X 2.65in/67mm Travel X 5.32in TLG] SLS
 803-04-205 033-22-024 Spring: 2019 [1.385in ID X 550lb/in X 2.65in/67mm Travel X 5.38in TLG] SLS
 803-04-206 033-22-025 Spring: 2019 [1.385in ID X 600lb/in X 2.65in/67mm Travel X 5.47in TLG] SLS
 803-04-207 033-22-026 Spring: 2019 [1.385in ID X 650lb/in X 2.65in/67mm Travel X 5.6in TLG] SLS
 803-04-208 033-22-027 Spring: 2019 [1.385in ID X 700lb/in X 2.65in/67mm Travel X 5.61in TLG] SLS
2.9in/74mm Travel Springs
 803-04-210 033-22-028 Spring: 2019 [1.385in ID X 300lb/in X 2.9in/74mm Travel X 5.36in TLG] SLS 8.75inx2.75in, 225mm(T)x70mm, 250mmx70mm
 803-04-211 033-22-029 Spring: 2019 [1.385in ID X 325lb/in X 2.9in/74mm Travel X 5.24in TLG] SLS
 803-04-212 033-22-030 Spring: 2019 [1.385in ID X 350lb/in X 2.9in/74mm Travel X 5.33in TLG] SLS
 803-04-213 033-22-031 Spring: 2019 [1.385in ID X 375lb/in X 2.9in/74mm Travel X 5.54in TLG] SLS
 803-04-214 033-22-032 Spring: 2019 [1.385in ID X 400lb/in X 2.9in/74mm Travel X 5.54in TLG] SLS
 803-04-215 033-22-033 Spring: 2019 [1.385in ID X 425lb/in X 2.9in/74mm Travel X 5.64in TLG] SLS
 803-04-216 033-22-034 Spring: 2019 [1.385in ID X 450lb/in X 2.9in/74mm Travel X 5.8in TLG] SLS
 803-04-217 033-22-035 Spring: 2019 [1.385in ID X 475lb/in X 2.9in/74mm Travel X 5.85in TLG] SLS
 803-04-218 033-22-036 Spring: 2019 [1.385in ID X 500lb/in X 2.9in/74mm Travel X 5.83in TLG] SLS
 803-04-219 033-22-037 Spring: 2019 [1.385in ID X 550lb/in X 2.9in/74mm Travel X 5.85in TLG] SLS
 803-04-220 033-22-038 Spring: 2019 [1.385in ID X 600lb/in X 2.9in/74mm Travel X 5.85in TLG] SLS
3.15in/80mm Travel Springs
 803-04-221 033-22-040 Spring: 2019 [1.385in ID X 225lb/in X 3.15in/80mm Travel X 5.39in TLG] SLS 9.50inx3.00in, 225mm(T)x72.5mm, 225mm(T)x75mm, 250mmx72.5mm, 250mmx75mm
 803-04-222 033-22-041 Spring: 2019 [1.385in ID X 250lb/in X 3.15in/80mm Travel X 5.54in TLG] SLS
 803-04-223 033-22-042 Spring: 2019 [1.385in ID X 275lb/in X 3.15in/80mm Travel X 5.46in TLG] SLS
 803-04-224 033-22-043 Spring: 2019 [1.385in ID X 300lb/in X 3.15in/80mm Travel X 5.61in TLG] SLS
 803-04-225 033-22-044 Spring: 2019 [1.385in ID X 325lb/in X 3.15in/80mm Travel X 5.7in TLG] SLS
 803-04-226 033-22-045 Spring: 2019 [1.385in ID X 350lb/in X 3.15in/80mm Travel X 5.94in TLG] SLS
 803-04-227 033-22-046 Spring: 2019 [1.385in ID X 375lb/in X 3.15in/80mm Travel X 5.92in TLG] SLS
 803-04-228 033-22-047 Spring: 2019 [1.385in ID X 400lb/in X 3.15in/80mm Travel X 6.04in TLG] SLS
 803-04-229 033-22-048 Spring: 2019 [1.385in ID X 425lb/in X 3.15in/80mm Travel X 6.16in TLG] SLS
 803-04-230 033-22-049 Spring: 2019 [1.385in ID X 450lb/in X 3.15in/80mm Travel X 6.28in TLG] SLS
 803-04-231 033-22-050 Spring: 2019 [1.385in ID X 475lb/in X 3.15in/80mm Travel X 6.41in TLG] SLS
 803-04-232 033-22-051 Spring: 2019 [1.385in ID X 500lb/in X 3.15in/80mm Travel X 6.33in TLG] SLS
 803-04-233 033-22-063 Spring: 2019 [1.385in ID X 525lb/in X 3.15in/80mm Travel X 6.60in TLG] SLS
 803-04-234 033-22-052 Spring: 2019 [1.385in ID X 550lb/in X 3.15in/80mm Travel X 6.52in TLG] SLS
 803-04-235 033-22-064 Spring: 2019 [1.385in ID X 575lb/in X 3.15in/80mm Travel X 6.60in TLG] SLS
3.65in/93mm Travel Springs
 803-04-236 033-22-053 Spring: 2019 [1.385in ID X 225lb/in X 3.65in/93mm Travel X 6.26in TLG] SLS 10.5inx3.5in
 803-04-237 033-22-054 Spring: 2019 [1.385in ID X 250lb/in X 3.65in/93mm Travel X 6.42in TLG] SLS
 803-04-238 033-22-055 Spring: 2019 [1.385in ID X 275lb/in X 3.65in/93mm Travel X 6.49in TLG] SLS
 803-04-239 033-22-056 Spring: 2019 [1.385in ID X 300lb/in X 3.65in/93mm Travel X 6.75in TLG] SLS
 803-04-240 033-22-057 Spring: 2019 [1.385in ID X 325lb/in X 3.65in/93mm Travel X 6.72in TLG] SLS
 803-04-241 033-22-058 Spring: 2019 [1.385in ID X 350lb/in X 3.65in/93mm Travel X 6.83in TLG] SLS
 803-04-242 033-22-059 Spring: 2019 [1.385in ID X 375lb/in X 3.65in/93mm Travel X 6.93in TLG] SLS
 803-04-243 033-22-060 Spring: 2019 [1.385in ID X 400lb/in X 3.65in/93mm Travel X 7.08in TLG] SLS
 803-04-244 033-22-061 Spring: 2019 [1.385in ID X 425lb/in X 3.65in/93mm Travel X 7.22in TLG] SLS
 803-04-245 033-22-062 Spring: 2019 [1.385in ID X 450lb/in X 3.65in/93mm Travel X 7.51in TLG] SL

Explore more from our collection.

Additional information

Size

550lb/in X 2.0in/51mm Travel X 4.45in TLG / For 40-45mm shocks, 600lb/in X 2.0in/51mm Travel X 4.45in TLG / For 40-45mm shocks, 650lb/in X 2.0in/51mm Travel X 4.45in TLG / For 40-45mm shocks, 700lb/in X 2.0in/51mm Travel X 4.45in TLG / For 40-45mm shocks, 300lb/in X 2.4in/61mm Travel X 4.28in TLG / For 50-57.5mm shocks, 325lb/in X 2.4in/61mm Travel X 4.41in TLG / For 50-57.5mm shocks, 350lb/in X 2.4in/61mm Travel X 4.38in TLG / For 50-57.5mm shocks, 375lb/in X 2.4in/61mm Travel X 4.52in TLG / For 50-57.5mm shocks, 400lb/in X 2.4in/61mm Travel X 4.6in TLG / For 50-57.5mm shocks, 425lb/in X 2.4in/61mm Travel X 4.54in TLG / For 50-57.5mm shocks, 450lb/in X 2.4in/61mm Travel X 4.74in TLG / For 50-57.5mm shocks, 475lb/in X 2.4in/61mm Travel X 4.68in TLG / For 50-57.5mm shocks, 500lb/in X 2.4in/61mm Travel X 4.67in TLG / For 50-57.5mm shocks, 550lb/in X 2.4in/61mm Travel X 4.91in TLG / For 50-57.5mm shocks, 600lb/in X 2.4in/61mm Travel X 4.97in TLG / For 50-57.5mm shocks, 650lb/in X 2.4in/61mm Travel X 4.97in TLG / For 50-57.5mm shocks, 700lb/in X 2.4in/61mm Travel X 4.97in TLG / For 50-57.5mm shocks, 250lb/in X 2.65in/67mm Travel X 4.69in TLG / For 60-65mm shocks, 275lb/in X 2.65in/67mm Travel X 4.63in TLG / For 60-65mm shocks, 300lb/in X 2.65in/67mm Travel X 4.74in TLG / For 60-65mm shocks, 325lb/in X 2.65in/67mm Travel X 4.71in TLG / For 60-65mm shocks, 350lb/in X 2.65in/67mm Travel X 4.85in TLG / For 60-65mm shocks, 375lb/in X 2.65in/67mm Travel X 4.97in TLG / For 60-65mm shocks, 400lb/in X 2.65in/67mm Travel X 5.14in TLG / For 60-65mm shocks, 425lb/in X 2.65in/67mm Travel X 5.08in TLG / For 60-65mm shocks, 450lb/in X 2.65in/67mm Travel X 5.11in TLG / For 60-65mm shocks, 475lb/in X 2.65in/67mm Travel X 5.23in TLG / For 60-65mm shocks, 500lb/in X 2.65in/67mm Travel X 5.32in TLG / For 60-65mm shocks, 550lb/in X 2.65in/67mm Travel X 5.38in TLG / For 60-65mm shocks, 600lb/in X 2.65in/67mm Travel X 5.47in TLG / For 60-65mm shocks, 650lb/in X 2.65in/67mm Travel X 5.6in TLG / For 60-65mm shocks, 700lb/in X 2.65in/67mm Travel X 5.61in TLG / For 60-65mm shocks, 300lb/in X 2.9in/74mm Travel X 5.36in TLG / For 70mm shocks, 325lb/in X 2.9in/74mm Travel X 5.24in TLG] / For 70mm shocks, 350lb/in X 2.9in/74mm Travel X 5.33in TLG / For 70mm shocks, 375lb/in X 2.9in/74mm Travel X 5.54in TLG / For 70mm shocks, 400lb/in X 2.9in/74mm Travel X 5.54in TLG / For 70mm shocks, 425lb/in X 2.9in/74mm Travel X 5.64in TLG / For 70mm shocks, 450lb/in X 2.9in/74mm Travel X 5.8in TLG / For 70mm shocks, 475lb/in X 2.9in/74mm Travel X 5.85in TLG / For 70mm shocks, 500lb/in X 2.9in/74mm Travel X 5.83in TLG / For 70mm shocks, 550lb/in X 2.9in/74mm Travel X 5.85in TLG / For 70mm shocks, 600lb/in X 2.9in/74mm Travel X 5.85in TLG / For 70mm shocks, 225lb/in X 3.15in/80mm Travel X 5.39in TLG / For 72.5-75mm shocks, 250lb/in X 3.15in/80mm Travel X 5.54in TLG / For 72.5-75mm shocks, 275lb/in X 3.15in/80mm Travel X 5.46in TLG / For 72.5-75mm shocks, 300lb/in X 3.15in/80mm Travel X 5.61in TLG / For 72.5-75mm shocks, 325lb/in X 3.15in/80mm Travel X 5.7in TLG / For 72.5-75mm shocks, 350lb/in X 3.15in/80mm Travel X 5.94in TLG / For 72.5-75mm shocks, 375lb/in X 3.15in/80mm Travel X 5.92in TLG / For 72.5-75mm shocks, 400lb/in X 3.15in/80mm Travel X 6.04in TLG / For 72.5-75mm shocks, 425lb/in X 3.15in/80mm Travel X 6.16in TLG / For 72.5-75mm shocks, 450lb/in X 3.15in/80mm Travel X 6.28in TLG / For 72.5-75mm shocks, 475lb/in X 3.15in/80mm Travel X 6.41in TLG / For 72.5-75mm shocks, 500lb/in X 3.15in/80mm Travel X 6.33in TLG / For 72.5-75mm shocks, 525lb/in X 3.15in/80mm Travel X 6.60in TLG / For 72.5-75mm shocks, 550lb/in X 3.15in/80mm Travel X 6.52in TLG / For 72.5-75mm shocks, 575lb/in X 3.15in/80mm Travel X 6.60in TLG / For 72.5-75mm shocks, 225lb/in X 3.65in/93mm Travel X 6.26in TLG / For 3.5in shocks, 250lb/in X 3.65in/93mm Travel X 6.42in TLG / For 3.5in shocks, 275lb/in X 3.65in/93mm Travel X 6.49in TLG / For 3.5in shocks, 300lb/in X 3.65in/93mm Travel X 6.75in TLG / For 3.5in shocks, 325lb/in X 3.65in/93mm Travel X 6.72in TLG / For 3.5in shocks, 350lb/in X 3.65in/93mm Travel X 6.83in TLG / For 3.5in shocks, 375lb/in X 3.65in/93mm Travel X 6.93in TLG / For 3.5in shocks, 400lb/in X 3.65in/93mm Travel X 7.08in TLG / For 3.5in shocks, 425lb/in X 3.65in/93mm Travel X 7.22in TLG / For 3.5in shocks, 450lb/in X 3.65in/93mm Travel X 7.51in TLG / For 3.5in shocks
