Description
International 430 and 440 Balers Operator’s Manual
64 Pages
This Manual is available in: Digital Download
CONTENTS
CARE OF YOUR BALER
- Bale Chamber and Plunger
- Knotter Adjustment
- Knotter Nomenclature
- Knotter Operation
- Knotter Position
- Metering Wheel Adjustment
- Needle Clearance Over Stripper Fingers
- Needle Height (Twine Balers)
- Needle Height (Wire Baler)
- Needle Replacement (Twine Balers)
- Needle Replacement (Wire Baler)
- Pickup and Feeder
- Pickup Balance Spring
- Pickup Drive
- Servicing Knotter Discs and Knife
- Timing the Baler
- Wire Disk
- Wire Stripper
LUBRICATION
- Automatic Lubrication System (Special)
OPERATION OF YOUR BALER
- Bale Chamber Extension
- Bale Chamber Extension
- Bale Length
- Bale Turner
- Bale Weight
- Hydraulic Bale Tension Device
- Operating Speed
- Operational Check
- Packer Fingers
- Pickup Cover
- Pickup Feed Auger
REPARING YOUR BALER FOR WORK
- Friction Drive
- General

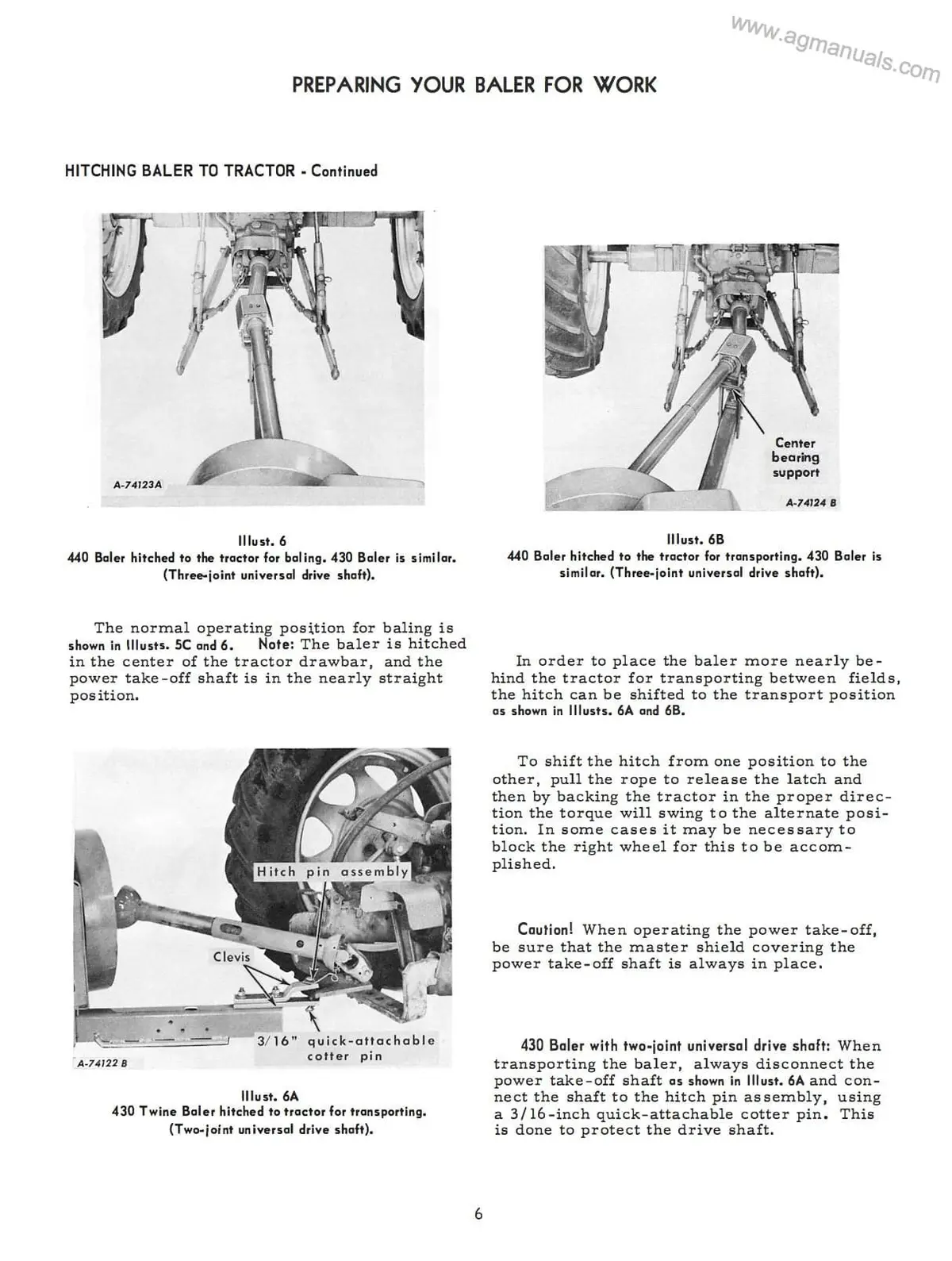

- Hitching Baler to Tractor
- Overrunning Clutch
- Pickup Slip Clutch
- Plunger Stop
- Shear Bolts
- Threading Twine Tying Mechanism
- Threading Wire Twisting Mechanism
SAFETY SUGGESTIONS
SPECIAL EQUIPMENT
- Auxiliary Needle Guard
- Bale Counter
- Bale Thrower
- Dual Wheel (Left)
- Dual Wheel (Right)
- Engine Shutoff (Wire Baler)
- Flywheel and Belt Shield (Wisconsin Engine)
- Flywheel and Knuckle Shield
- Knotter Cover
- Lifting Jack
- Pickup Wheel
- Plunger Crank Shield
- Safety Lighting
- Trailer Hitch and Bale Chute
- Wisconsin Engine
SPECIFICATIONS
STORAGE OF YOUR BALER
TROUBLE SHOOTING
- Bale Not Uniform
- Feeding Problems
- Knotter Problems (Twine Baler)
- Pickup Problems
- Power Drive Problems
- Shear Bolt Problems
- Twine or Wire Breakage Problems
- Twister Problems (Wire Baler)
Manual Code: 1 084 870
