New Holland Hayliner 273 Round Baler User Manual

Description

New Holland Hayliner 273 Balers Operator’s Manual

68 Pages

This Manual is available in: Digital Download

CONTENTS

FACTORY OPTIONS

SAFETY

OPERATION

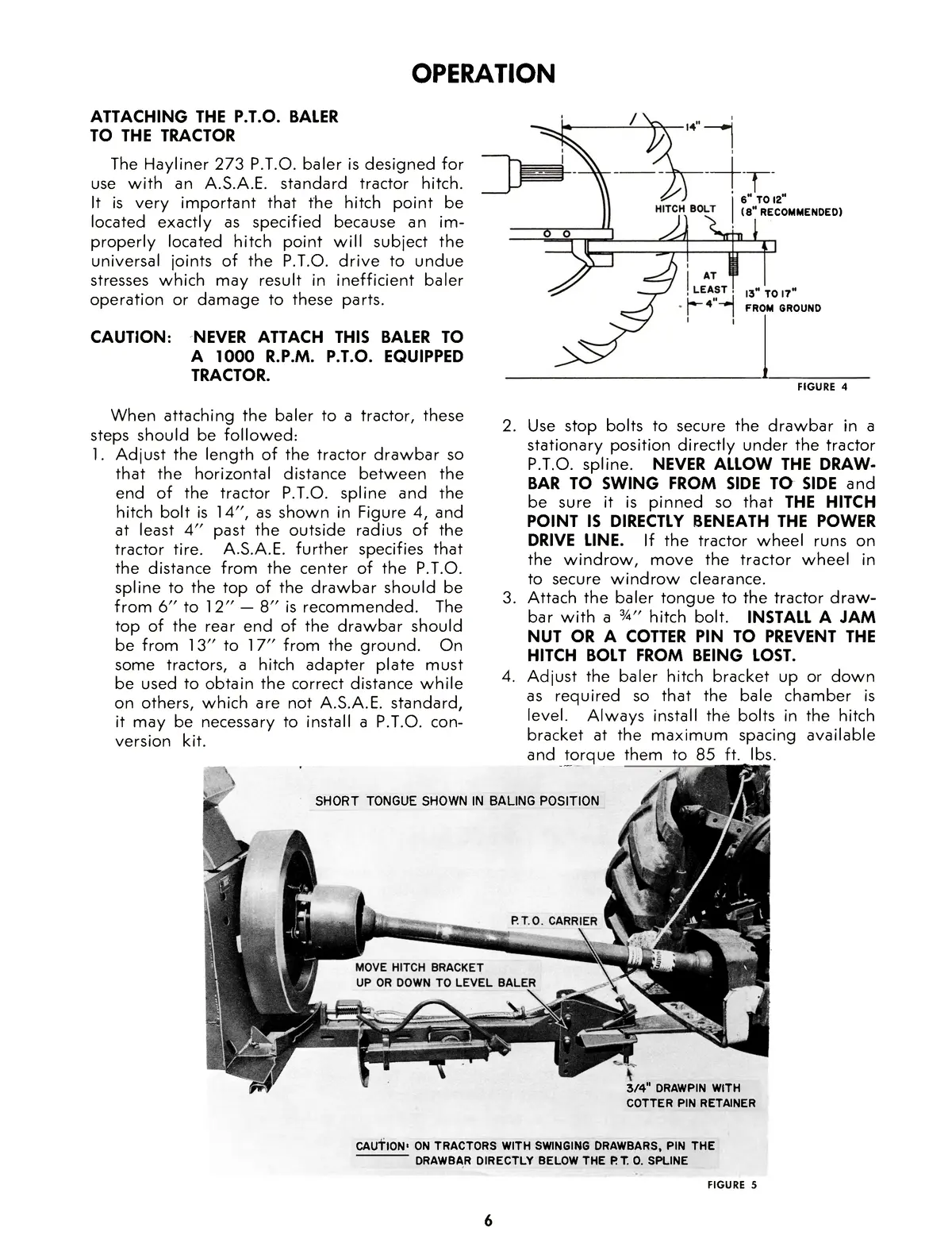

• Attaching Engine Baler to Tractor
• Attaching P.T.O. Baler to Tractor
• Bale Counter
• Engine Air Cleaners
• Engine Belt Tightener
• Engine Hand Primer
• Engine Overheating Safety Switch
• Starting the Baler
• Threading the Twine Baler
• Threading the Wire Baler
• Towing Baler on Public Highways
• Transporting Baler
• Unplugging the Baler
• Windrow Preparation
• Wire Splicer

LUBRICATION

BALER ADJUSTMENT

• Bale Length
• Bale Shape — Adjustable Feeder Back
• Bale Shape — Feeder Carriage Penetration
• Bale Weight
• Flywheel Shear Bolt
• Knotter/Twister Brake
• Knotter/Twister Drive Shear Bolt
• Knotter/Twister Stop
• Metering Wheel
• Needle Drive Timing
• Needle Latch
• Needle Penetration
• Pickup Drive Over-Running Clutch
• Pickup Drive Slip Clutch
• Pickup Floatation Spring
• Pickup Guide Wheel
• Pickup Windguard
• Plunger Bearing and Knife
• P.T.O. Drive Over-Running Clutch
• P.T.O. Drive Slip Clutch Adjustment

BALER MAINTENANCE

• Drive Chains
• Engine
• Feeder Carriage Maintenance
• “Loctite”
• Main Gear Box
• Metering Wheel
• Over-Running Clutches
• Pickup Cam Follower
• Pickup Fingers — Standard Pickup
• Pickup Fingers — Supersweep Pickup
• Pickup Tooth Pipe
• Plunger Bearing and Knife Adjustment
• P.T.O. Drive

BALER SERVICE CHART

KNOTTER MAINTENANCE AND ADJUSTMENT

• Bill Hook
• Knife Arm
• Knotter Mounting Bolts
• Knotter Stack End Play
• Needles
• Servicing the Knotter Stack
• Twine Disc Timing
• Twine Finger
• Twine Holder

KNOTTER SERVICE CHART

TWISTER MAINTENANCE AND ADJUSTMENT

• Cam Follower Clearance
• Forming the Twist
• Needles
• Systematic Twister Adjustment
• Twister Frame Height
• Twister Hook Drive Chain
• Twister Hook Height
• Twister Hook Timing
• Twister Stack Assembly
• Twister Stack Disassembly
• Twist Wrapper
• Wire and Twist Guide
• Wire Guide and Roller Assemblies
• Wire Guide
• Wire Shear Clamp

TWISTER SERVICE CHART

ATTACHMENTS

• Bale Thrower
• Hydroformatic Bale Tension Control
• Pickup Lift
• Wagon Hitch and Loading Chute

STORING THE BALER

ORDERING SERVICE PARTS

SPECIFICATIONS

Manual Code: 0273-5-8M-974W
