New Holland Hayliner 290 Baler Owner’s Manual

Description

New Holland Hayliner 290 Balers Owner’s Manual

30 Pages

This Manual is available in: Digital Download

CONTENTS

ADJUSTMENT

• Bale Shape
• Cam Follower Clearance
• Drive Belts
• Knife Adjustment
• Locater Bearing
• Metering Wheel Location
• Needles
• Needle Drive Timing
• Needle Penetration
• Needle Safety Latch
• Pickup Wheel
• Sharpening Knives
• Plunger Bearing
• Tine Bar Timing
• Twist Deflector
• Twister Brake
• Twister Hook
• Twister Hook Drive Chain
• Twister Hook Timing
• Twister Mounting Bolts
• Twister Pinion
• Upper Feed Reel Timing
• Wire Guide
• Wire Guide Assemblies
• Wire Shear and Clamp

CONTROLS

• Belt Tightener
• Engine Controls
• Hydraformatic
• Pickup Lift
• Tongue

LUBRICATION

OPERATION

• Bale Length
• Bale Weight
• Forming the Twist
• Loading Wire
• Plunger Speed
• Shear Bolts

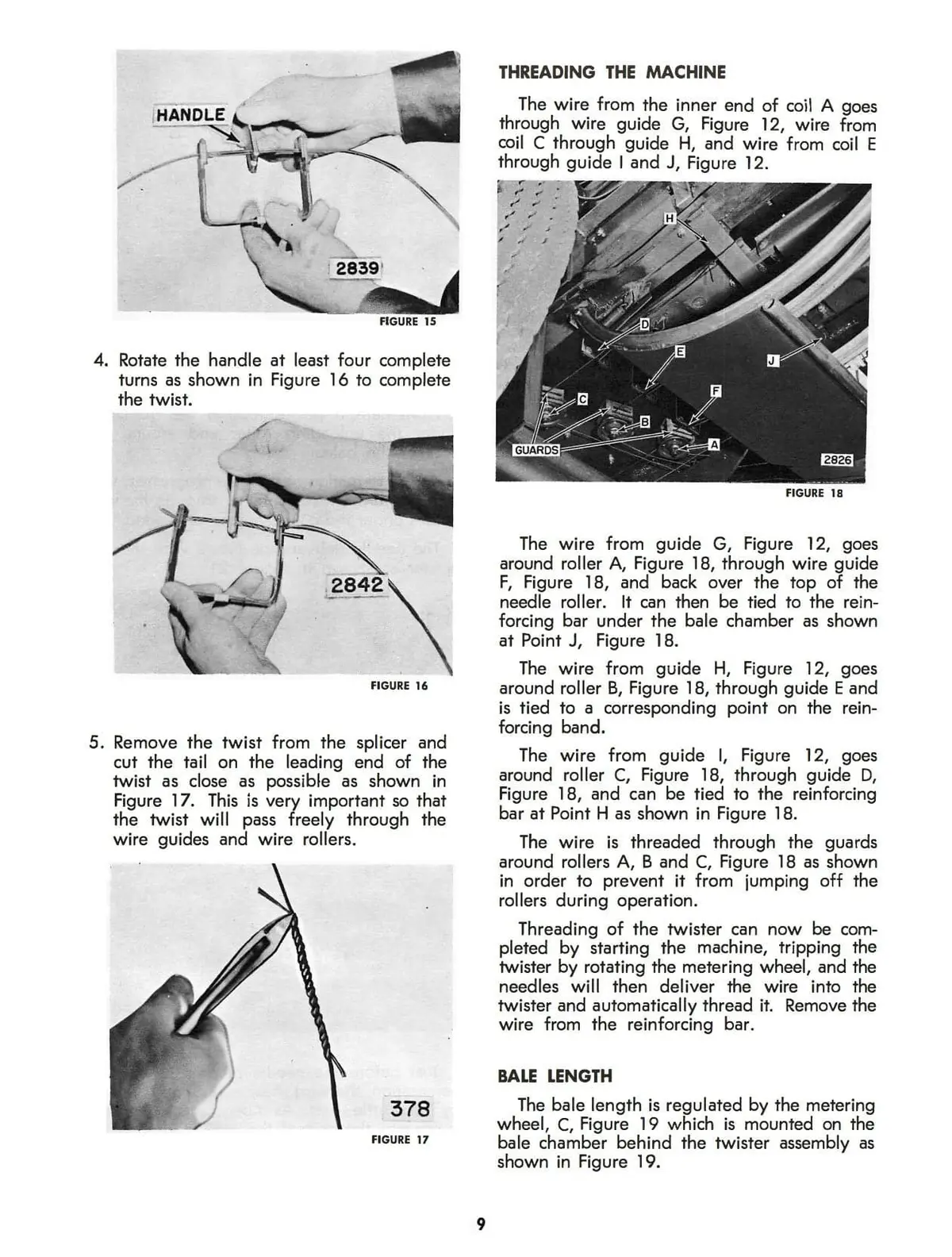

• Threading the Machine
• Wire Splicer

OPTIONAL EQUIPMENT

• Multi-Luber Lubrication (Factory Installed)
• Ball Hitch and Drawbar Plate
• Wire Magazines

SERVICE CHART

SPECIFICATIONS

Manual Code: 0290-3-1M-1066W
