Description
New Holland Pivot Tongue Mower-Conditioner 116 Operator’s Manual
92 Pages
This Manual is available in: Digital Download
CONTENTS
DELIVERY REPORT
IMPROVEMENTS
OWNER ASSISTANCE
SAFETY DECALS
SAFETY PRECAUTIONS
SECTION 1 – GENERAL INFORMATION
- Connecting the Hydraulic Hoses to the Tractor

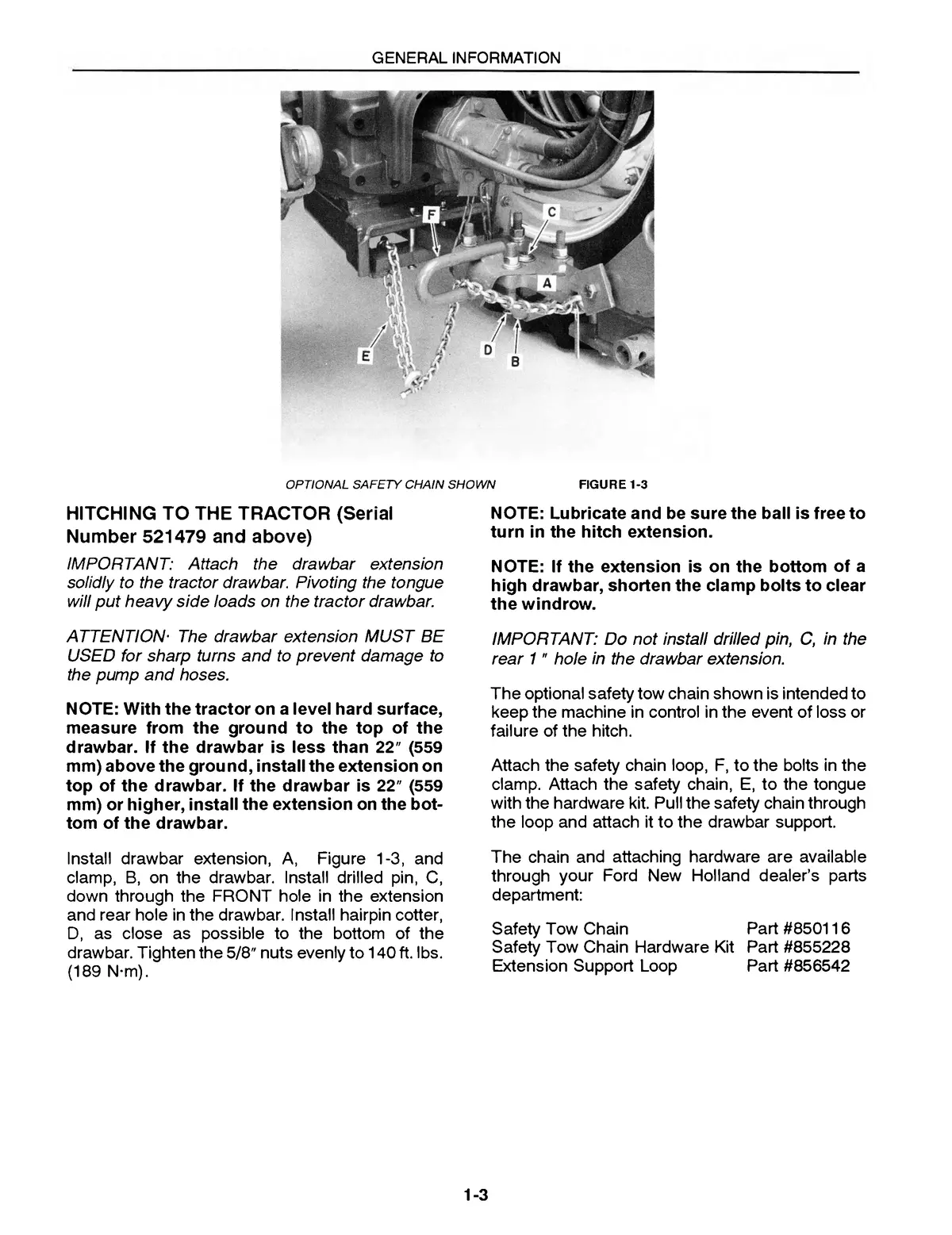

- Hitching to the Tractor (Serial Number 521479 and above)
- Hitching to the Tractor (Serial Number 521479 and Below)
- Hydraulic Cylinders
- Mounting the Pump on the PTO Shaft
- Serial Number
- SMV Emblem
- Tongue Lock
- Tractor Drawbar and PTO Shaft
- Tractor Requirements
- Transport Stops
- Transporting the Mower-Conditioner
- Parking the mower-conditioner
- Pulling with a tractor
- Pulling with a truck
SECTION 2 – OPERATION
- Checking Before Operating
- Cutting
- Clearing a Plugged Cutter Bar or Conditioner
- Conditioner rolls plug
- Cutter bar plug
- Field Adjustments
- Conditioning
- Cutter bar angle
- Cutting height
- Fluffing baffle
- Header flotation
- Push bar
- Reel adjustments
- Reel drive belt
- Reel position
- Reel speed
- Roll gap
- Swath gate
- Parking the Machine
SECTION 3 – LUBRICATION
- Grease Fittings
- Hydrostatic Reservoir
- Hydrostatic/Hydraulic System
- Lubrication and Service Schedule
- Storing Lubricants
SECTION 4 – MAINTENANCE
- Belts and Chains
- Auger drive chain
- Auger hold-down spring
- Conditioner roll drive chains
- Reel drive belt
- Reel drive chain
- Cutter Bar Maintenance
- Auger slip clutch
- Auger stops
- Cutter bar
- Guard alignment
- Guard replacement
- Knife assemblies
- Knife back bar adjustment
- Knife clips
- Knife register
- Knife timing (serial number 548027 and above)
- Knife timing (units prior to serial number 548027)
- Removing and replacing knife assemblies
- Sickle drive connecting rod
- Sickle drive shaft yoke
- Sickle shaft and wobble hub
- Sickle shaft bearing
- Sickle shaft bearings
- Spare knife storage
- Tine bar bearings
- Wobble hub bearing adjustment
- Wobble trunnion bearing
- Hardware Key
- Hardware Replacement
- Hay Conditioner
- Roll gap
- Roll timing
- Hydraulic and Hydrostatic Systems
- Hydraulic system
- Hydrostatic system
- Sealed Bearing Installation
- Storing
- Toolbox
SECTION 5 – TROUBLESHOOTING
SECTION 6 – OPTIONAL EQUIPMENT
- Crop Dividers
- Header Floor Kit
- Safety Chain
- Skid Shoe Bundle (for Units Below Serial Number 537597)
- Stub Guards
- Tine Bar Kit
- Windrow Kit
SECTION 7 – SPECIFICATIONS
TO THE OWNER
WARRANTY
Manual Code: 42011614
