Description
New Holland Super Hayliner 67 Baler Owner’s Manual
*Also includes Assembling Instructions and Pre-Delivery Service Booklet!
44 pages
This Manual is available in: Digital Download
CONTENTS
ADJUSTMENT
- Bale Shape
- Baler Service Chart
- Clutches
- Pickup Slip Clutch
- PTO Slip Clutch
- Hydraformatic Service Chart
- Hydraformatic Unit
- Knife Adjustment
- Knotter
- Bill Hook
- Brake
- Knife Arm
- Twine Disc
- Twine inger
- Twine Holder
- Knotter Service Chart
- Metering Wheel Location
- Needles
- Adjustment
- Timing
- Pickup
- Cam
- Lift Spring
- Slip Clutch
- Wheel (Optional)
- Windguard
- Plunge rBearing Adjustment
- Roller Chains
- TineBar
- Drive Chain
- Timing
- Tine Adjustment
GENERAL
- Optional Equipment
- Ordering Parts
- Safety Precautions
- Specifications
- Warranty

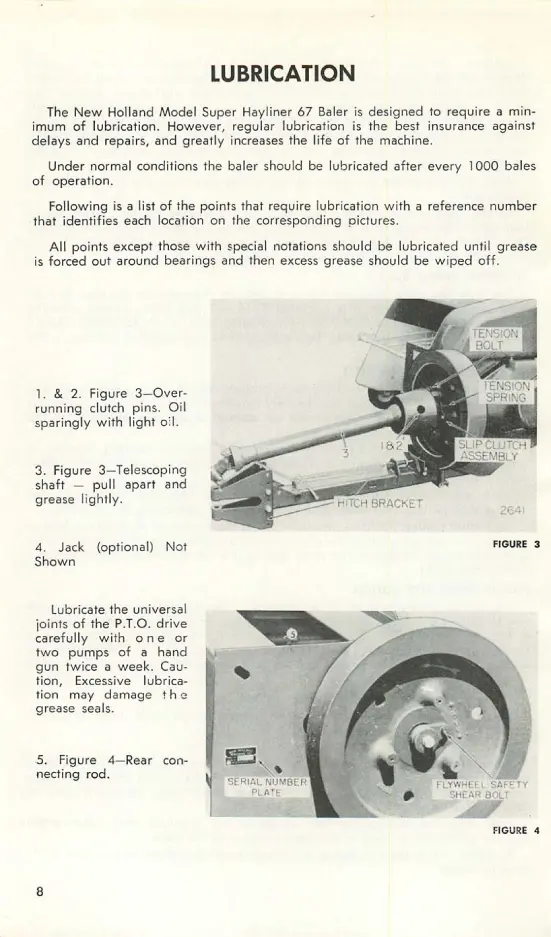

LUBRICATION
MAINTENANCE
- Main Gearbox
- Pickup
- Cam Follower
- Fingers
- Tooth Pipe
- PTO Drive
- Storing the Baler
- Tire Pressures
OPERATION
- Attaching the Baler to Tractor
- Before Using your Baler
- Bale Length
- Bale Tying
- Bale Weight
- Hydraformatic Bale Tension (Optional)
- Jack (Optional)
- Slip Clutch Adjustment
- Starting the Baler
- Threading the Baler
- Windrow Preparation
- Wind Guard
SAFETY FEATURES
- Needle Safety Latch
- Pickup Slip Clutch
- PTO Slip Clutch
- Shearbolts
- Flywheel
- Knotter Drive
Manual Code: 42006710 | OS 67-3½M-683A
