SUTTNER ST-160 Single INJECTOR

The Suttner ST-160 Chemical Injector is the most efficient and durable foam injector available, with a dilution range from 10:1 to 200:1. It automatically dilutes the soap to a predetermined strength eliminating soap waste or pre-mixing. The ST-160 arrives pre-set by us to draw at 100:1(1%) dilution, the ideal strength for all of our super concentrated liquids. MORE INFO HERE.

Includes

1. 3/8″ Plug (Inlet)
2. Chemical Pick Up Tube Barb (Inlet)
3. 3/8″ Coupler (Outlet)
4. 10′ Clear Pick Up Tube
5. Chem-X Flow Cap
6. 10 Dosing Nozzles & O-Rings

–

• Plug + Play
• Uses 4-5x Less Soap Than Traditional Style Injectors
• 9 Dosing Nozzles Included
• Durable Stainless Steel Construction

HOW TO INSTALL

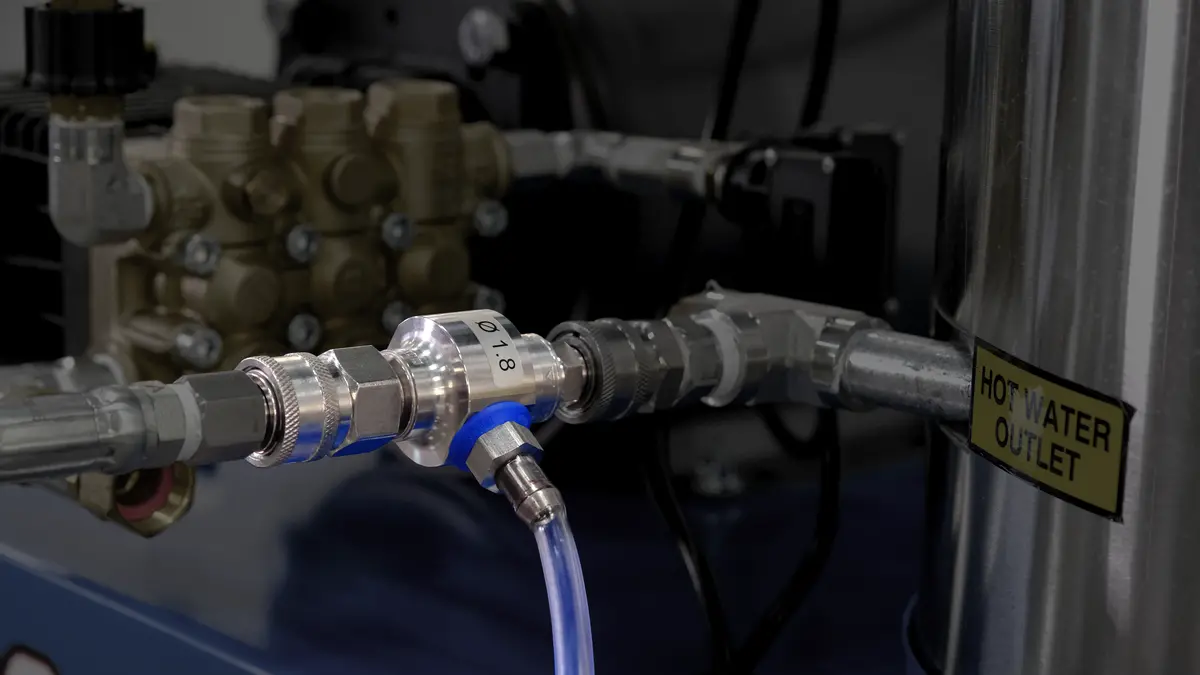

1. Connect ST-160 injector after power washer and before your high psi hose. The ST-160 will be made ready with a stainless 3/8″ quick connect plug on the inlet and a stainless 3/8″ quick connect socket on the the outlet.

2. Place chemical pick up tube directly into soap.

3. Foam all of the things!

• Injector will be set to run at 100:1 unless specified otherwise, this can be changed by simply changing metering tip inside injector barb.

• If using a hot water machine, scale build up from your coil can plug injector or foam head. On start up always run with injector in rinse mode for about 30-60 seconds to flush out any build up.

• If a jumper hose is needed to go from your power washer to ST-160 injector please see our selection of hoses in accessories.

• Other downstream injectors must be removed from your machine.

• Limited to 150′ of power washer hose after the injector.

• ST-160 injectors come standard with a 3/8″ QC Plug on the inlet and a 3/8″ QC Coupling on the outlet. QC orientation can be reversed upon request.

– –

Click here for parts diagram

*Other downstream injectors must be removed from your machine.
*Limited to 150′ of power washer hose after the injector.
*ST-160 injectors come standard with a 3/8″ QC Plug on the inlet and a 3/8″ QC Coupling on the outlet. QC orientation can be reversed upon request.

SPECS

• Min/Max Flow Rate: 1-6gpm
• Min/Max PSI: 1000-4000psi
• Rated for 194 degree water
