International 37 & 47 Balers – Operator’s Manual

Description

International 37 and 47 Balers Operator’s Manual

66 Pages

This Manual is available in: Digital Download

CONTENTS

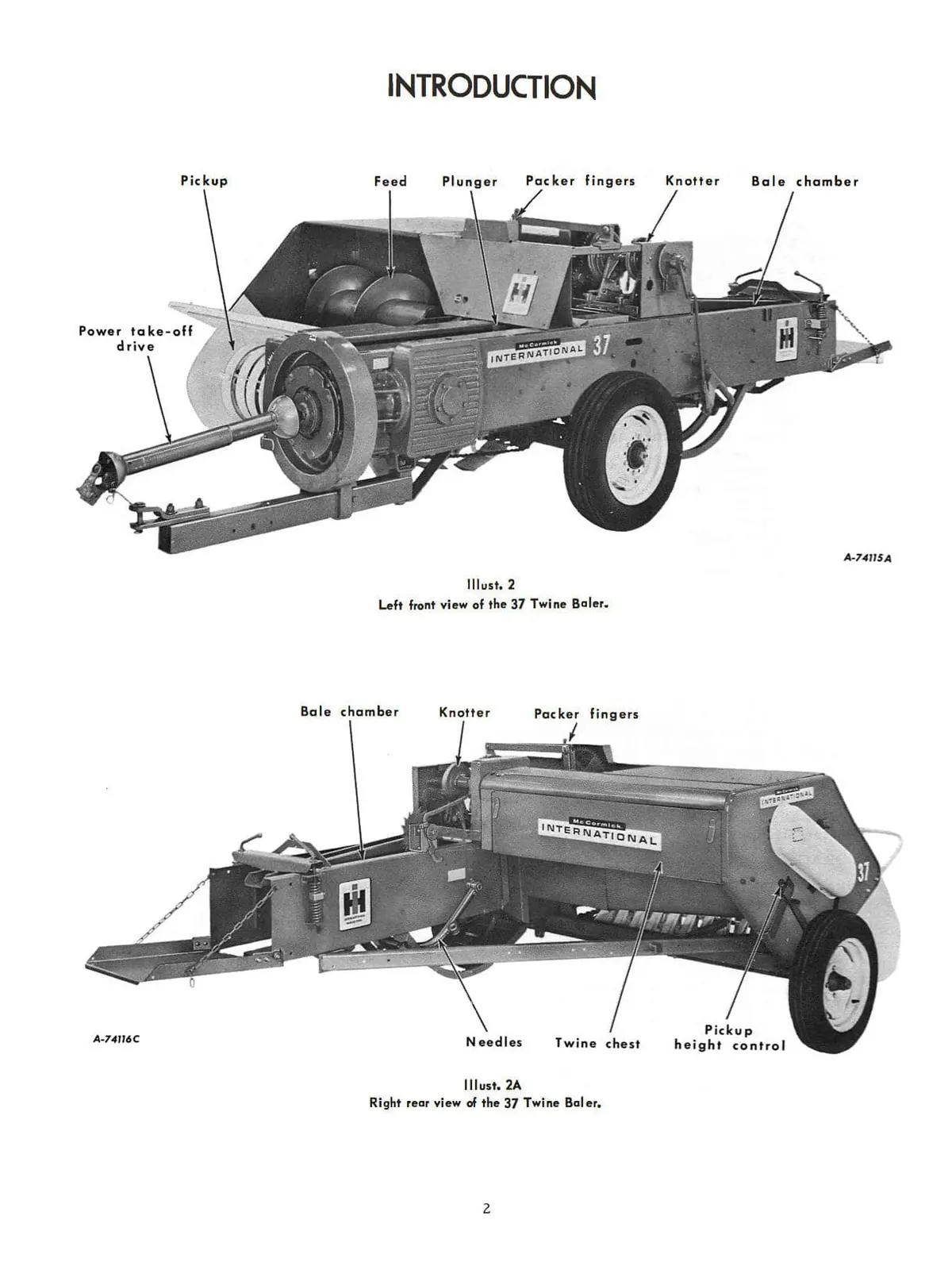

INTRODUCTION

PREPARING YOUR BALER FOR WORK

• Friction Drive
• General
• Hitching
• Making an Operational Check
• Overrunning Clutch
• Pickup Slip Clutch
• Plunger Stop
• Shear Bolts
• Threading the Tying Mechanism on the Twine Baler
• Threading the Wire Twisting Mechanism on the Wire Baler

OPERATION OF YOUR BALER

• Bale Chamber Tension
• Bale Length
• Bale Weight
• Combination Bale Turner and Bale Chamber Extension
• Operating Speed
• Packer Fingers
• Pickup Balance Spring
• Pickup Cover
• Pickup Drive
• Pickup Feed Auger
• Pickup Height
• Pickup Lift Rope
• Pickup Wheel
• Plunger Crank Shield
• Safety Suggestions

CARE OF YOUR BALER

• Bale Chamber and Plunger
• Needle Clearance over Stripper Fingers
• Needle Height for Twine Baler
• Needle Height for Wire Baler
• Needle Replacement for Twine Baler
• Needle Replacement for Wire Baler
• Pickup and Feeder
• Timing the Baler
• Twine Tying Mechanism
• Wire Disk
• Wire Stripper

STORAGE

SPECIAL EQUIPMENT

• 10 Bale Thrower
• Engine Automatic Shut – off Device (Wire Baler)
• Flywheel and Belt Shield (Wisconsin Engine)
• Flywheel and Knuckle Shield
• High – Clearance Attachment
• Hydraulic Bale Chamber Tension Device
• Left Dual Wheel Attachment
• Lifting Jack Attachment
• Right Dual Wheel Attachment
• Safety Lighting
• THD Wisconsin Engine Attachment
• Trailer Hitch and Bale Chute Attachment
• VH4D Wisconsin Engine Attachment

FINDING TROUBLE

LUBRICATION

SPECIFICATIONS

Manual Code: 1 010 373 R3
