Massey Ferguson MF 12 Small Square Baler User Guide

Description

Massey Ferguson MF 12 Baler Operator’s Manual

42 Pages

This Manual is available in: Digital Download

CONTENTS

OPERATION

Preparing Tractor

• Wheel Tread Setting
• PTO Drawbar Hitch

Preparing Baler

• Packer Fork Positioning
• Plunger Safety Stop
• PTO Slip Clutch
• Chains
• PTO Shaft Assembly
• Preparing Twine Balls

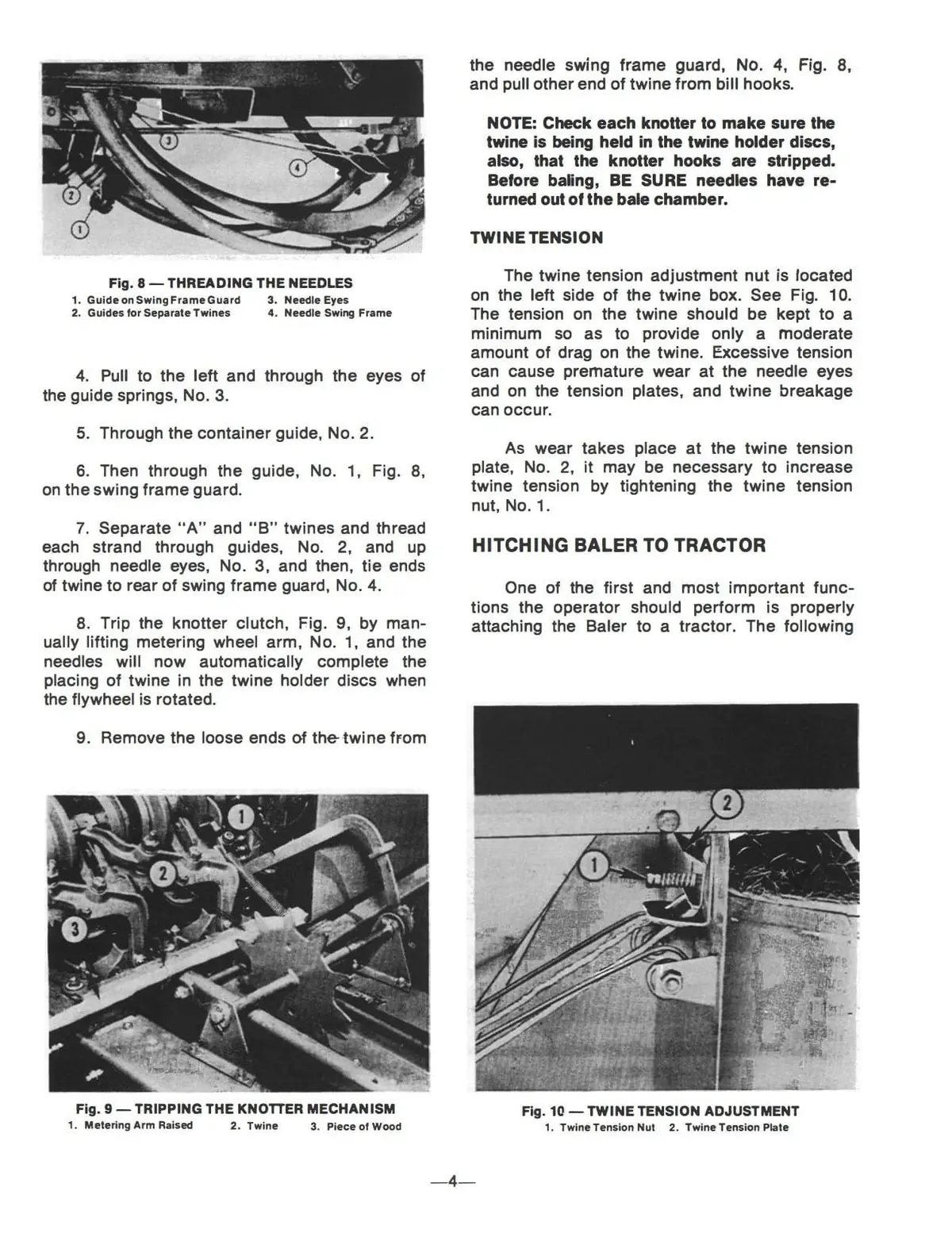

• Threading Needles
• Twine Tension

Hitching Baler to Tractor

Tongue Positions

Detaching Baler from Tractor

Tractor Ground Speed

Baler Operating Speed

Transporting

Stopping Tractor and Baler

Turning in Field

Shear Bolts

ADJUSTMENTS

• Packer Timing
• Needle Adjustment
• Twine Finger
• Twine Holder Disc
• Twine Holder
• Knotter Hook
• Twine Knife
• Stripper Arm
• Needle Brake
• Swing Frame Brake
• Pick-Up
• Pick-Up Flotation Adjustment
• Pick-Up Gauge Wheel
• Windguard
• Metering Wheel
• Bale Tension Bars
• Bale Retarders
• Hay Wedges
• Causes of Mistying and General Difficulties

LUBRICATION AND MAINTENANCE

Lubrication

• General Information
• Lubrication Schedule

Maintenance

SERVICING

• Plunger Runners Adjustment
• Twine Knife Sharpening
• Shear Knife Sharpening
• Shear Knife Adjustment
• Vertical Plunger Adjustment
• Baler Storage
• Removing Baler from Storage

ACCESSORIES AND ATTACHMENTS

SPECIFICATIONS

Manual Code: 690 709 M1
