Massey Ferguson MF820 Flex Disc Harrow Operator and Assembly Guide

Description

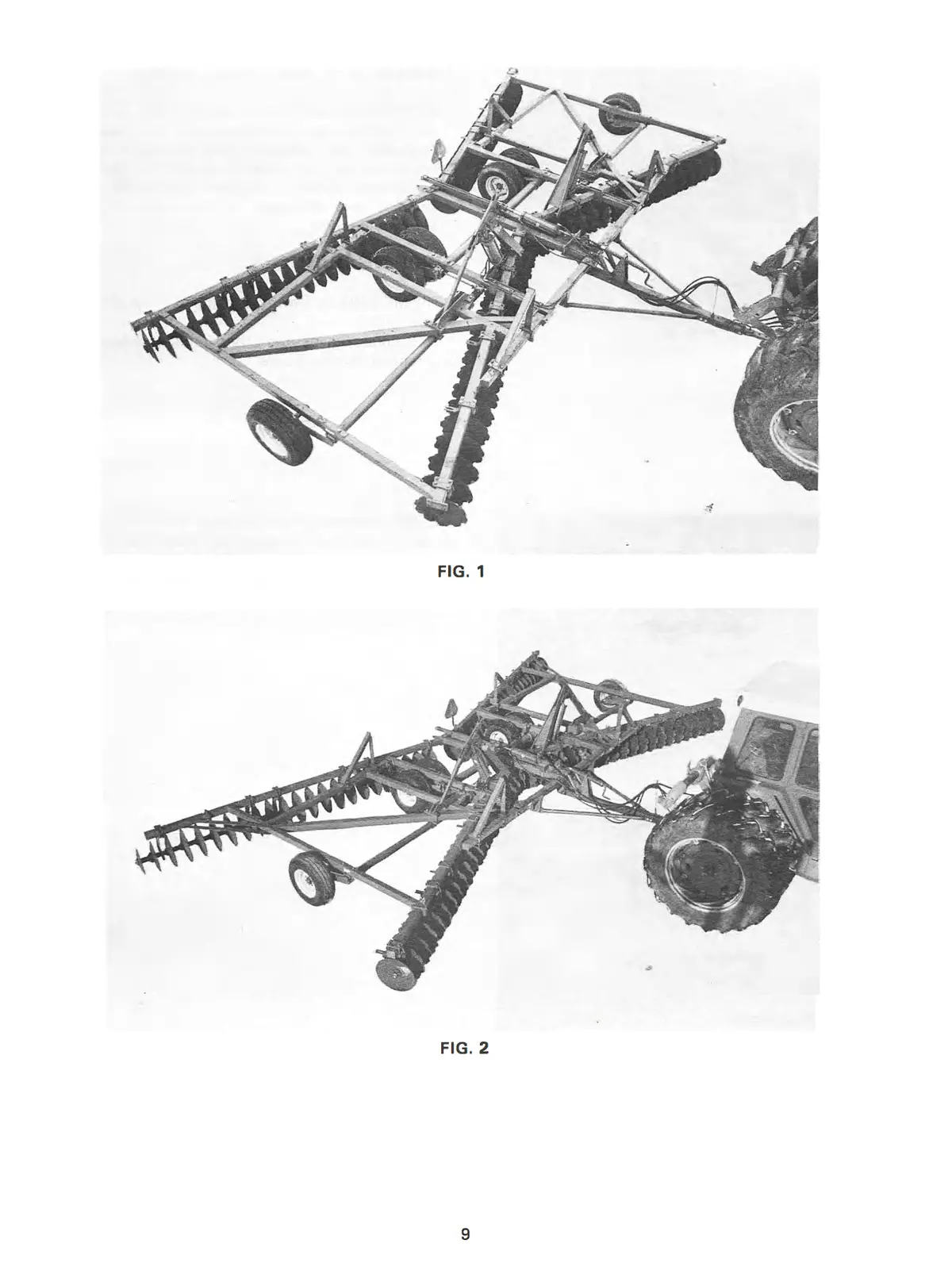

Massey Ferguson MF 820 Wheeled Tandem Flex Disc Harrow Operator’s Manual and Assembly Instructions

78 Pages

This Manual is available in: Digital Download

CONTENTS

ASSEMBLY Instructions

• Shipping Bundles
• Machine Configurations
• Sundry Box Contents
• Bag Contents (Sundry Box)
• Ordered Options (Sundry Box)
• Assembly Procedure
• Torque Reference Chart
• Sundry Box(s)
• Wing Frames
• Narrow Wings
• Wide Wings
• Hydraulic System
• Narrow Wing
• Wide Wing
• Attaching Gangs to Frame
• Dismantling Gang Bundles Rigid Supports
• Driver Installation
• Spring Cushion Supports
• Safety Equipment and Decals

SPACING CHARTS

OPERATION

• Preparing Disc Harrow
• Discs
• Scrapers
• Tire Pressure
• Wheel Tread Settings
• Attaching Disc Harrow to Tractor
• Transporting

LUBRICATION AND MAINTENANCE

• Lubrication
• Maintenance

STORAGE

ACCESSORIES

SPECIFICATIONS

Manual Code: 1448 366 M5
