New Holland 87 Baler Parts and Service Reference

Description

New Holland 87 Baler Service Parts Catalog

76 Pages

This Manual is available in: Digital Download

CONTENTS

Assembly

P.T.O DRIVEN MODEL 87

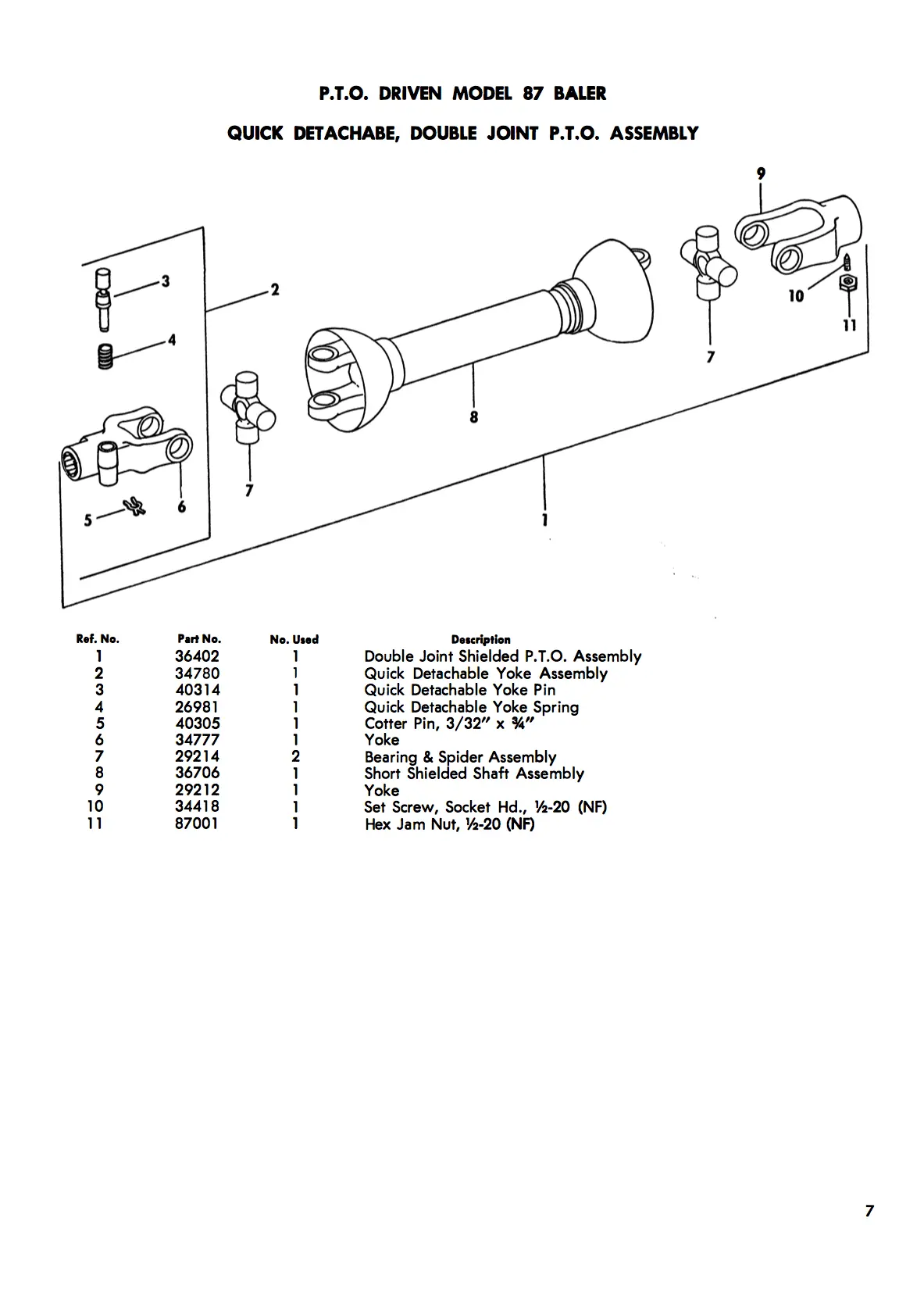

• Quick Detachable, Double Joint P.T.O. Assembly
• P.T.O. Power Tube and Shaft Assemblies
• Gear Box
• Bearing, Support and Drive Shaft Assemblies
• Pulley, Belt Tightener and Guard Assemblies

ENGINE DRIVEN MODEL 87

• Motor Base, Main Drive Belt Guard, Main Drive Belt
• Clutch Tightener and Clutch Tightener Lever

P.T.O. AND ENGINE DRIVEN MODEL 87

• Tongue and Jack Assembly
• Flywheel, Pinion Shaft and Pinion Gears
• Main Drive Gears, Flanges and Gearbox Drive
• Connecting Rod and Plunger
• Stationary Knife Holder
• Wadboard, Wadboard Brace Post, and Wadboard Linkage
• Push Rod and Over-Center Assembly
• Metering Wheel Assembly
• Gearbox
• Twister Rear Ejector Shaft, Ejectors, and Wire Shears
• Twister Grease Gun
• Wire Separator, Twister Guards, Gripper Yoke, and Wire Retainers
• Needle Drive Assembly
• Needle Brake, Yoke, and Needles
• Bale Tension Spring Assembly
• Tension Rail , Bale Chute
• Frame, Bottom Plate, Stops, Dogs, and Bale Counter
• Pick-up Assembly
• Pick-up Windguard Assembly
• Pick-up Lift, Ground Wheels, Feeders, and Supports
• Feeder and Pick-up Drive
• Feed Roll Assembly
• Auger Assembly
• Auger and Pick-up Driven Assembly
• Right Side Belt Guards
• Wire Container, Tension and Signal Assemblies

ENGINE AND P.T.O. DRIVEN MODEL 87 OPTIONAL EQUIPMENT

• Wire Carrier Kit
• Wagon Hitch and Bale Chute
• Battery Holder and Cables
• Hydraulic Tension Unit

ENGINE AND P.T.O. DRIVEN MODEL 87 ATTACHMENTS

• Wood Wadboard Extension Kit
• Numerical Parts Index
• Numerical Hardware Index

HARDWARE KEY

Throughout this manual you will find common hardware, not illustrated, but listed in the description column  The service part immediately preceding a hardware listing is the part using these particular items for mounting or lubricating purposes This hardware is not included with service part or assembly, when ordered as a replacement

Manual Code: 0335-7500-6-56W
